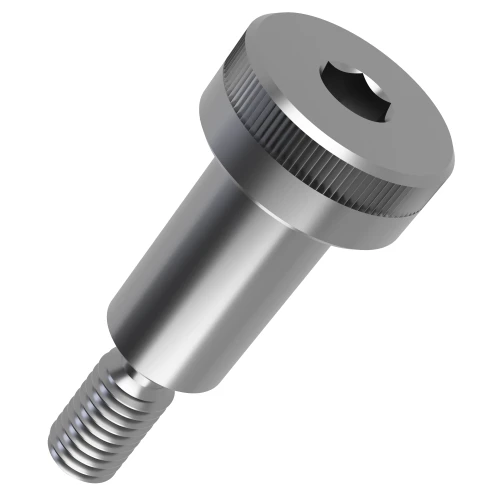

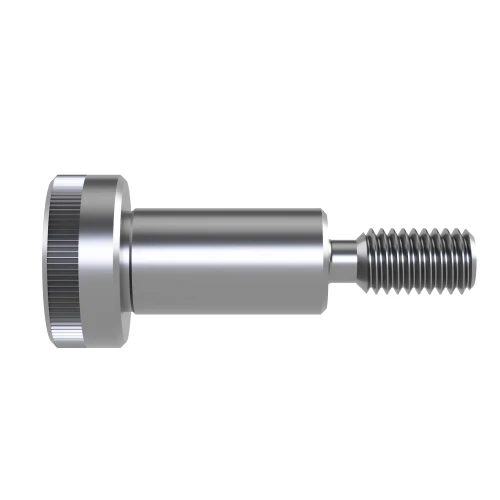

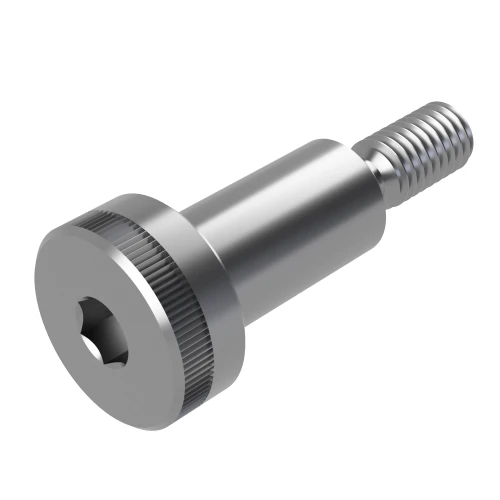

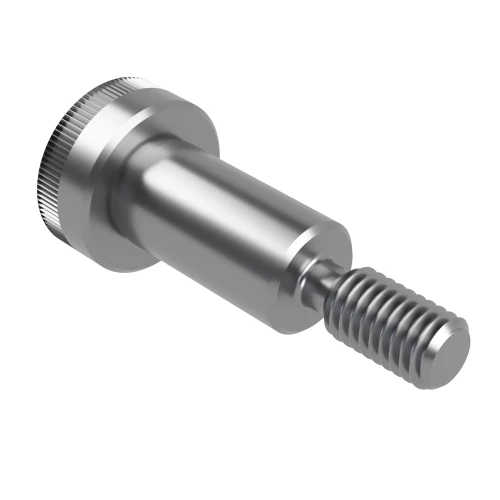

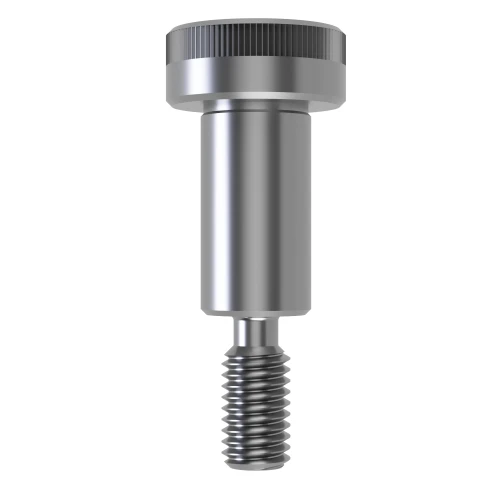

M6 (8mm) x 8mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £14.92 | £17.90 |
| 10 - 24 | £11.19 | £13.43 |
| 25 - 49 | £10.26 | £12.31 |
| 50 - 99 | £9.32 | £11.19 |
| 100 - 499 | £7.46 | £8.95 |
| 500 + | £6.53 | £7.83 |
Product Specification
| Shoulder Diameter | 8.0mm |
| Shoulder Length | 8.0mm |
| Thread Size | M6 |
| Material | A2 Stainless Steel |
| Thread Length | 11.0mm |
| Head Diameter | 13.0mm |
| Head Height | 5.5mm |
| Drive | H4 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M6 (8mm) x 8mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
Designed for precision pivot and location work, this M6 (8mm) x 8mm Socket Shoulder Screw provides a 8mm shoulder with a 8mm shoulder length and M6 thread. It is a useful socket head shoulder screw for assemblies that need accurate movement and secure fastening.
A2 stainless steel gives good corrosion resistance for indoor, production and light external environments where a clean finish is required. The plain shoulder acts as a bearing surface while the threaded section provides the clamping point, helping moving parts remain aligned.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Pivot points in industrial machinery
- Guided slides and linkages
- Rotating fixtures and stops
- Precision maintenance replacements

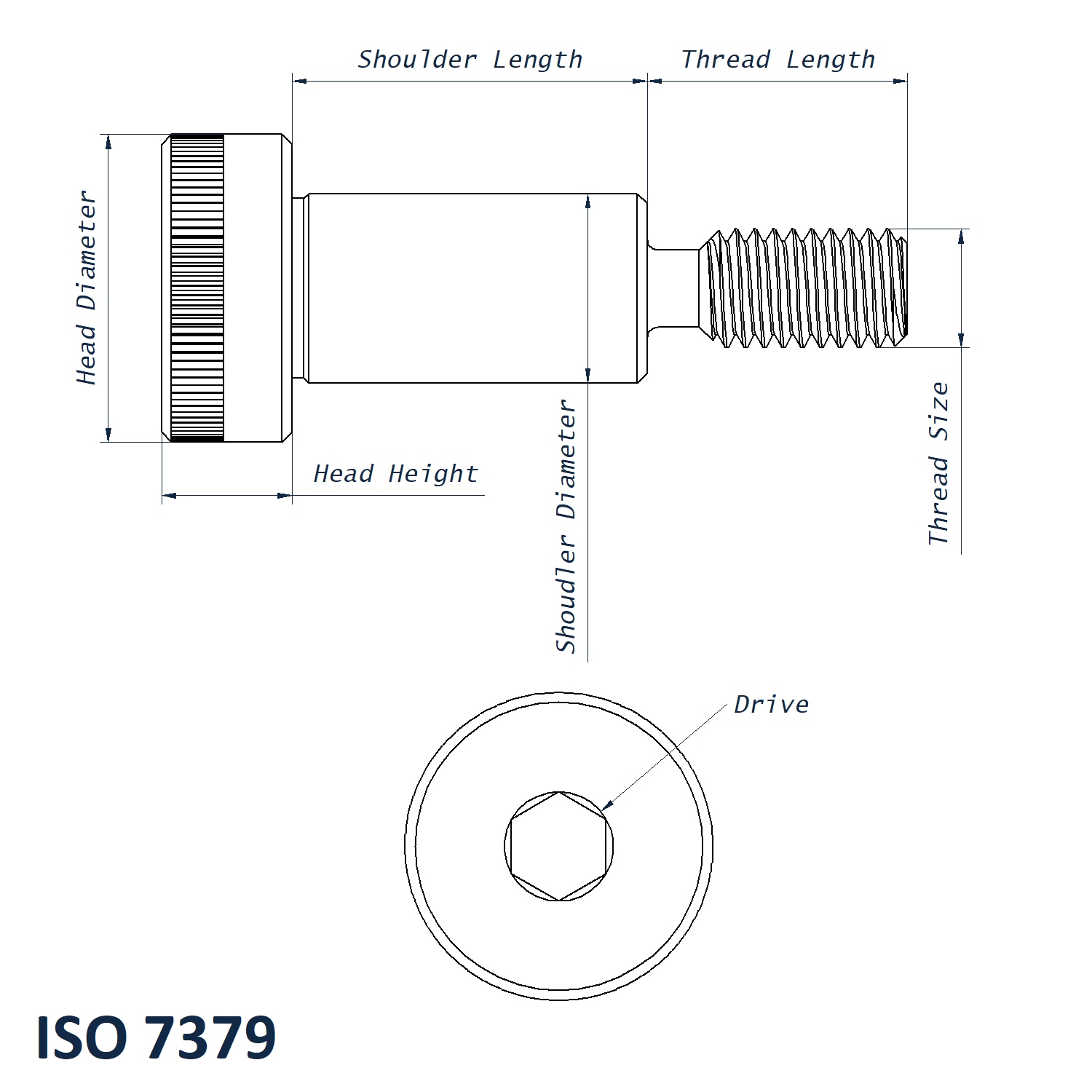

M6 (8mm) x 8mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 8mm
- Shoulder Length: 8mm
- Thread Size: M6
- Thread Length: 11mm
- Head Diameter: 13mm
- Head Height: 5.5mm
- Drive: H4
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
Browse Related Fastener Ranges
View our full Socket Shoulder Bolts ISO 7379 range. You can also browse our wider Shoulder Bolts category and Bolts and Screws collection.
