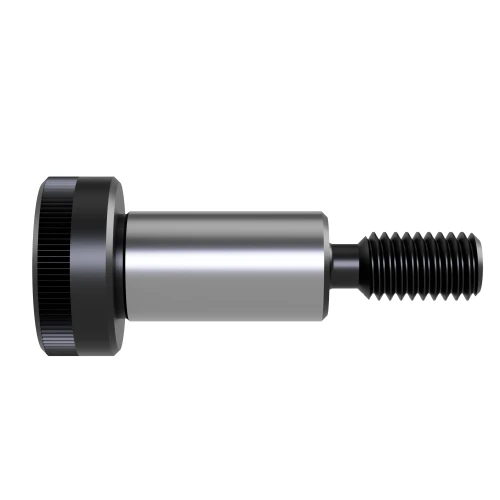

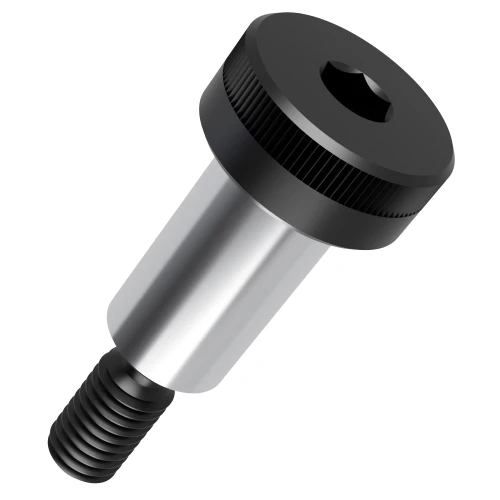

M12 (16mm) x 40mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.57 | £3.08 |
| 10 - 24 | £1.93 | £2.31 |
| 25 - 49 | £1.77 | £2.12 |
| 50 - 99 | £1.60 | £1.92 |
| 100 - 499 | £1.28 | £1.54 |
| 500 + | £1.12 | £1.35 |
Product Specification
| Shoulder Diameter | 16.0mm |
| Shoulder Length | 40.0mm |
| Thread Size | M12 |
| Material | 12.9 Steel |
| Thread Length | 18.0mm |
| Head Diameter | 24.0mm |
| Head Height | 11.0mm |
| Drive | H8 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00

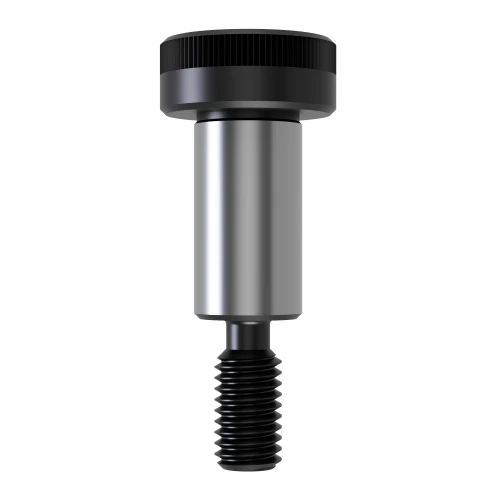

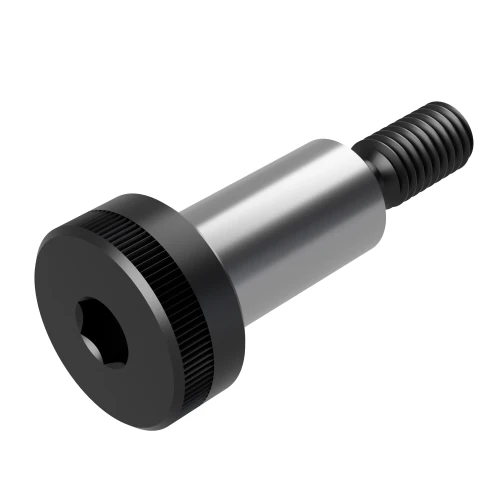

M12 (16mm) x 40mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
Manufactured to ISO 7379, this M12 (16mm) x 40mm Socket Shoulder Screw is suited to mechanical joints where the shoulder must guide movement before the thread clamps the part. It suits bearing shoulder bolt requirements where the shoulder size matters as much as the thread.
The 12.9 steel material is intended for high strength mechanical assemblies where tightening force and load capacity are important. The defined shoulder length separates moving components from the clamped joint, reducing the need for extra sleeves or spacers.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Workshop fabrication fixtures
- Jig and tool building
- Machine guard hinge points
- Accurate spacer applications

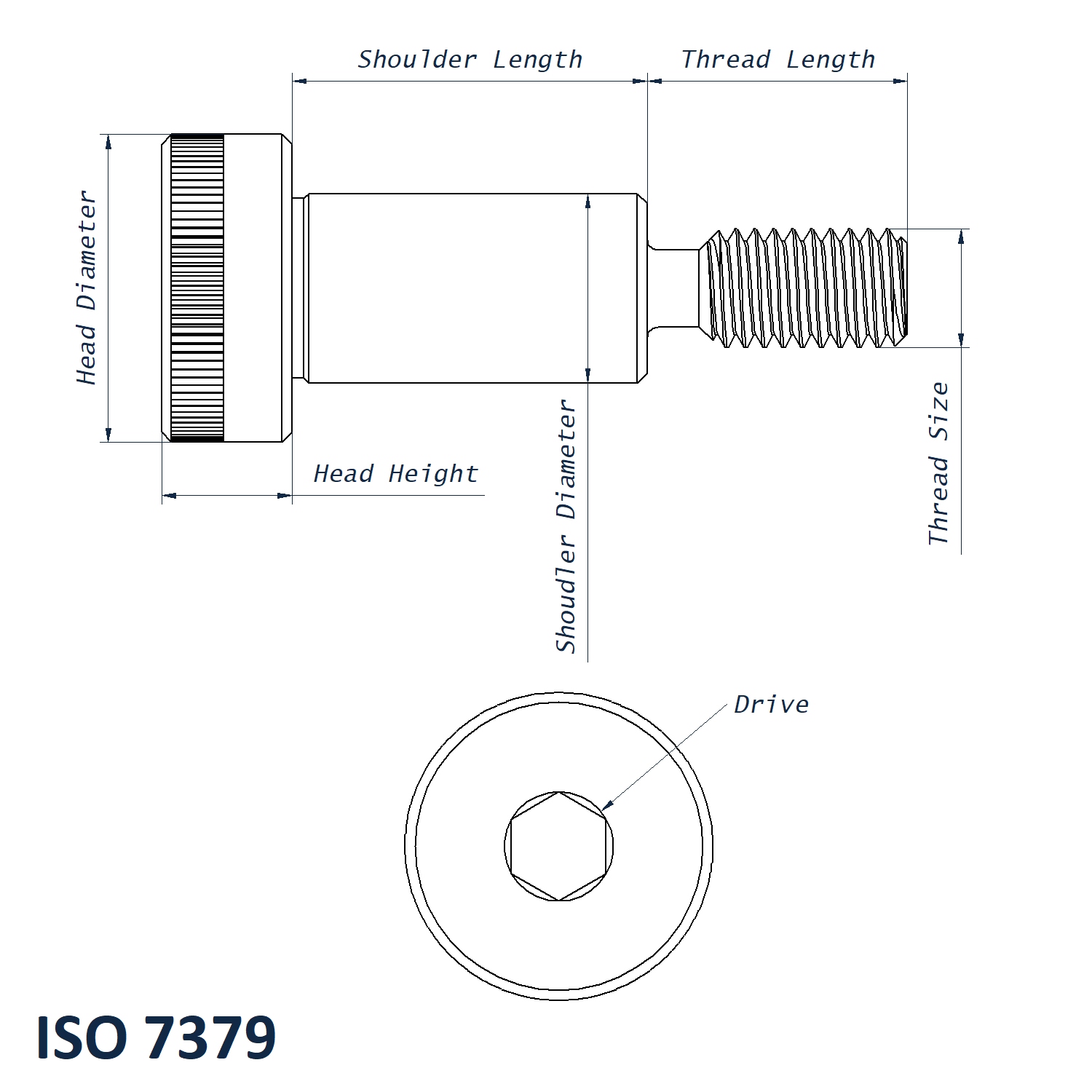

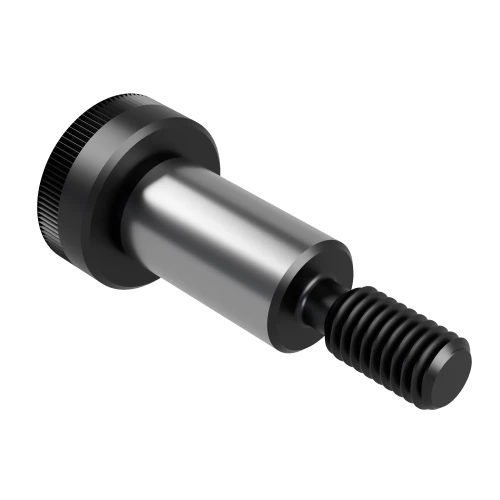

M12 (16mm) x 40mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 16mm
- Shoulder Length: 40mm
- Thread Size: M12
- Thread Length: 18mm
- Head Diameter: 24mm
- Head Height: 11mm
- Drive: H8
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
