M16 x 1.5mm Socket Pipe Plug DIN 906 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £11.61 | £13.93 |
| 10 - 24 | £7.73 | £9.28 |
| 25 - 49 | £5.80 | £6.96 |
| 50 - 99 | £5.42 | £6.50 |
| 100 + | £4.83 | £5.80 |
Product Specification
| Thread Size | M16 |
| Pitch | 1.5mm |
| Material | A2 |
| Drive | H8 |
| Length | 10mm |
| Standard | DIN 906 |
Frequently Bought Together
Total Price: £0.00
M16 x 1.5mm Socket Pipe Plug DIN 906 | A2 Stainless Steel

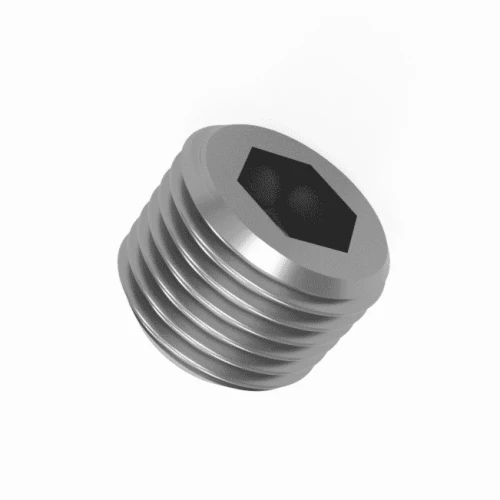

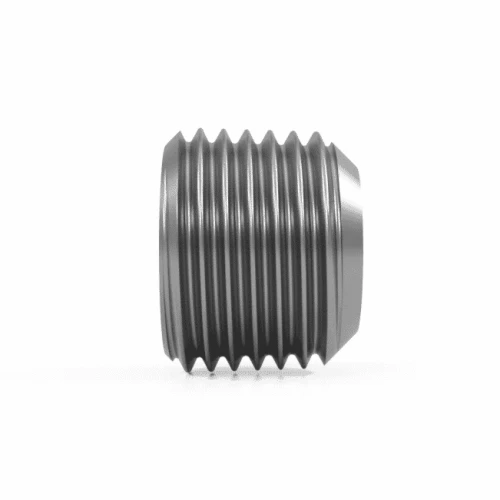

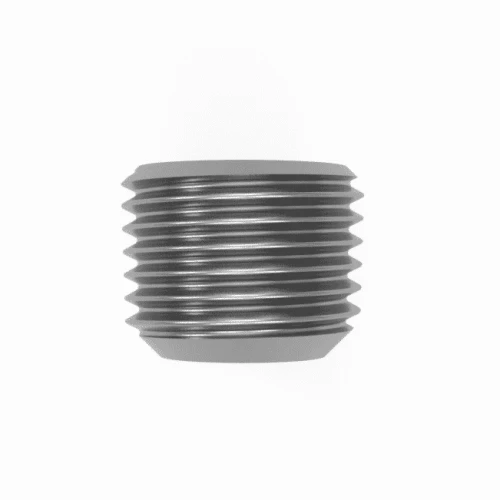

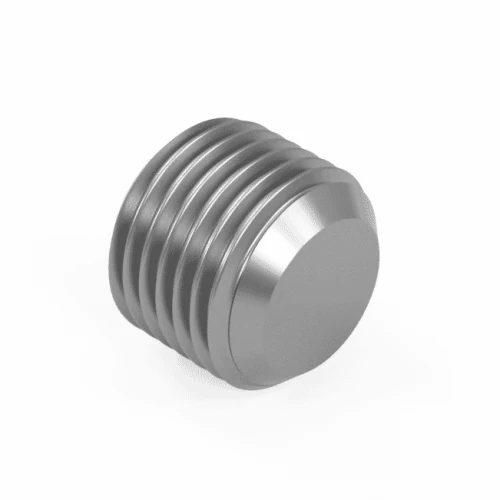

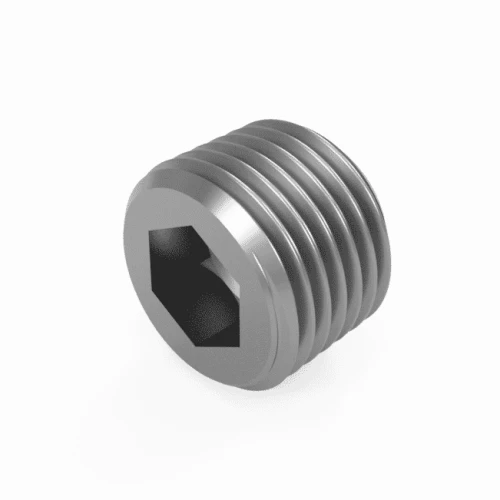

Built for tidy sealing of prepared threaded holes, this M16 internal hex pipe plug is manufactured to DIN 906 with a M16 thread size, 1.5mm pitch, 10mm length and H8 hex socket drive. It is used for closing pipe ends, sealing threaded ports and protecting internal threads in agricultural machinery.
A2 stainless steel, commonly equivalent to 304, offers dependable strength and corrosion resistance for many internal threaded components. The design makes installation straightforward: align the tapered thread with the prepared internal thread then tighten using the correct hex key. It is particularly useful as a equipment port plug where engineers need a reliable hydraulic plug for a serviceable maintenance fastener.
Common Applications
- Agricultural machinery
- Hydraulic cylinder ports
- Equipment overhaul work
- Steel component blanking
M16 x 1.5mm x 10mm Socket Pipe Plug DIN 906 Dimensions
- Thread Size: M16
- Pitch: 1.5mm
- Length: 10mm
- Drive: H8
- Material: A2
- Standard: DIN 906
Also Referred to As
- Locking screws with hexagon socket and taper thread
- Tapered threaded plugs
- Tapered pipe plugs
Equivalent Standards
- DIN 906: Germany, Deutsches Institut für Normung
- CSN 021913: Czech technical standard
View our full Stainless Steel Socket Pipe Plugs DIN 906 Range.
Explore our wider Threaded Plug Collection.
