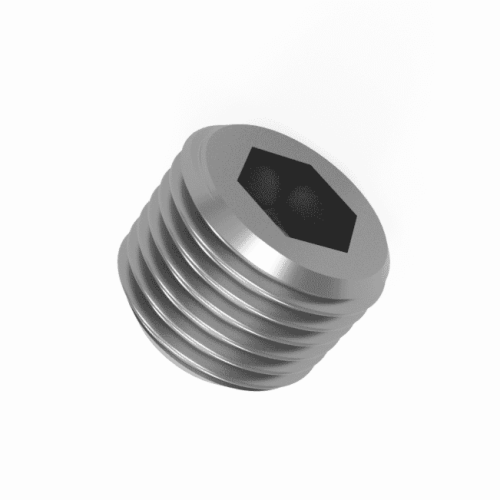

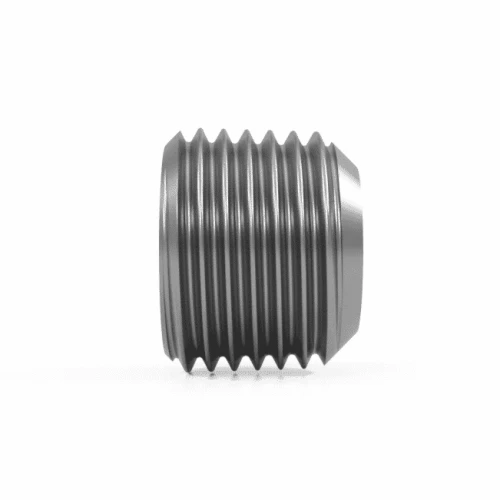

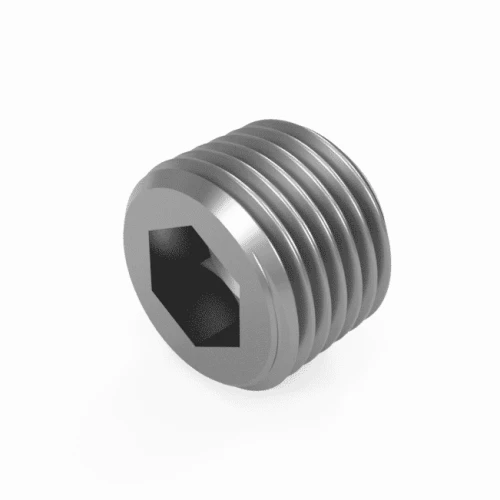

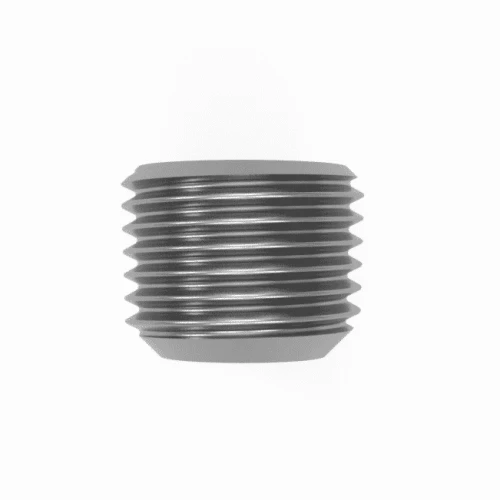

M20 x 1.5mm Socket Pipe Plug DIN 906 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.60 | £4.32 |
| 10 - 24 | £2.40 | £2.88 |
| 25 - 49 | £1.80 | £2.16 |
| 50 - 99 | £1.68 | £2.02 |
| 100 + | £1.50 | £1.80 |
Product Specification
| Thread Size | M20 |
| Pitch | 1.5mm |
| Material | A2 |
| Drive | H10 |
| Length | 10mm |
| Standard | DIN 906 |
Frequently Bought Together
Total Price: £0.00
M20 x 1.5mm Socket Pipe Plug DIN 906 | A2 Stainless Steel
Specified for maintenance access points and threaded closures, this M20 metal pipe plug suits applications requiring a strong stainless steel threaded plug with a low profile socket drive. It features a M20 thread, 1.5mm pitch, 10mm length and H10 drive for use in commercial equipment.
A2 stainless steel, commonly equivalent to 304, offers dependable strength and corrosion resistance for many internal threaded components. A flush style finish helps keep equipment surfaces clear of raised fasteners, which is useful around moving parts and guarded areas. It is particularly useful as a DIN 906 socket plug where engineers need a reliable internal bore plug for a serviceable pipe commissioning part.
Common Applications
- Commercial equipment builds
- Internal bore protection
- Pipe system commissioning
- Replacement DIN 906 plugs

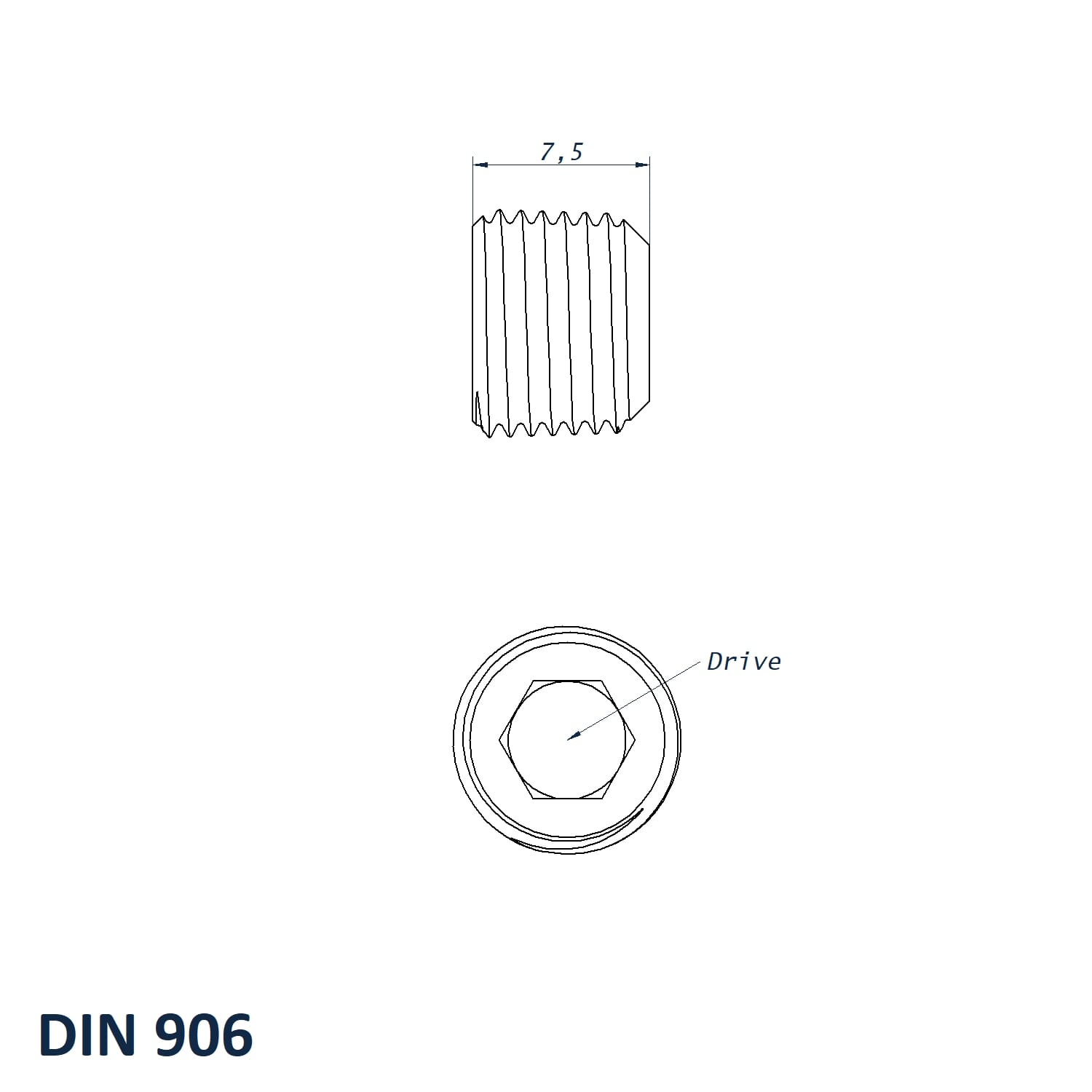

M20 x 1.5mm x 10mm Socket Pipe Plug DIN 906 Dimensions
- Thread Size: M20
- Pitch: 1.5mm
- Length: 10mm
- Drive: H10
- Material: A2
- Standard: DIN 906
Also Referred to As
- Locking screws with hexagon socket and taper thread
- Tapered threaded plugs
- Tapered pipe plugs
Equivalent Standards
- DIN 906: Germany, Deutsches Institut für Normung
- CSN 021913: Czech technical standard
View our full Stainless Steel Socket Pipe Plugs DIN 906 Range.
Explore our wider Threaded Plug Collection.
