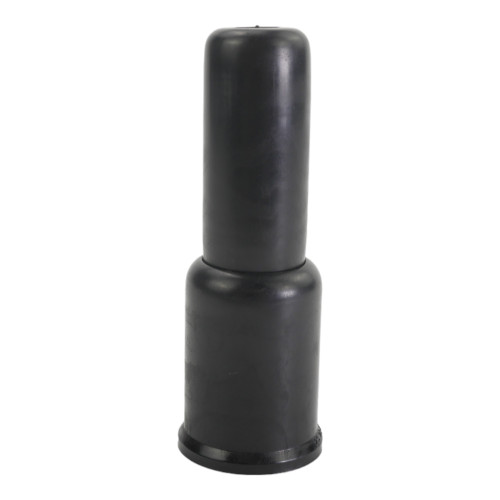

M76 (226mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 144mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £27.65 | £33.18 |
| 50 - 99 | £26.59 | £31.91 |
| 100 - 249 | £25.61 | £30.73 |
| 250 + | £25.14 | £30.17 |
Product Specification
| Thread Size | M76 |
| Nut Across Flats | 107mm |
| Inside Height | 226mm |
| Outside Diameter | 144.0mm |
| Washer Diameter | 137.0mm |
| Washer Thickness | 11.0mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | No |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M76 x 226mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 144.0mm OD | Black LDPE
Where exposed threads need a neater and safer finish, this M76 telescopic washer cap provides a taller protective cover with a simple push-on fit.
As a replaceable cover, it can be used to protect threads during storage, transport or service life and then removed when the fixing needs to be inspected. This makes it a useful choice where M76 fasteners need both washer coverage and extended thread protection.
What Are Telescopic Thread Protection Nut and Washer Caps?
DIN 125 washer caps are selected to cover the nut and flat washer together. The telescopic design of this M76 cap gives additional room for longer bolt projections, making it useful across outdoor steelwork and maintenance assemblies.
Common Applications
- Protecting long bolt projections on bridge brackets
- Covering nuts and DIN 125 washers on structural connections
- Reducing dirt build-up around external fasteners
- Providing a neat finish on civil engineering assemblies
M76 x 226mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M76
- Nut Across Flats: 107mm
- Inside Height: 226mm
- Outside Diameter: 144.0mm
- Washer Diameter: 137mm
- Washer Thickness: 11.0mm
- Telescopic: Yes
- Lock Nut Suitable: No
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
When the stud projection is difficult to measure or the assembly uses mixed washer sizes, our team can help narrow down the correct cap. You can reach us on 01233 713581.
