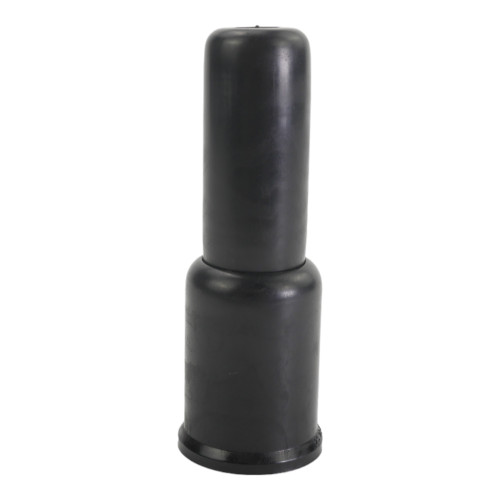

M90 (238mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 168mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £35.36 | £42.43 |
| 50 - 99 | £34.00 | £40.80 |
| 100 - 249 | £32.74 | £39.29 |
| 250 + | £32.14 | £38.57 |
Product Specification
| Thread Size | M90 |
| Nut Across Flats | 130mm |
| Inside Height | 238mm |
| Outside Diameter | 168.0mm |
| Washer Diameter | 159.0mm |
| Washer Thickness | 15.0mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | No |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M90 x 238mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 168.0mm OD | Black LDPE
Made from flexible LDPE, this M90 black washer cap supports fast installation on M90 fixings and helps improve the final presentation of fabricated equipment.
Because the cap is designed for longer thread projections, it helps reduce the need to stock several shorter caps for the same application. This can simplify purchasing for maintenance and production teams. The 168.0mm outside diameter gives clear washer coverage while the 238mm height allows space for the protruding thread.
What Are Telescopic Thread Protection Nut and Washer Caps?
A telescopic thread protection cap is used when the fixing needs more internal height than a standard nut cap. This M90 option is designed to cover the nut and washer area while helping reduce corrosion, dirt build-up and sharp exposed threads.
Common Applications
- Improving the appearance of machinery frames
- Protecting threaded studs on production equipment
- Covering washer areas on fabricated guards
- Supporting maintenance-friendly bolt protection
M90 x 238mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M90
- Nut Across Flats: 130mm
- Inside Height: 238mm
- Outside Diameter: 168.0mm
- Washer Diameter: 159mm
- Washer Thickness: 15.0mm
- Telescopic: Yes
- Lock Nut Suitable: No
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
If you are matching these caps to an existing nut, washer and stud projection, our team can help check the key dimensions before you order. For sizing advice or trade quantities, call 01233 713581.
