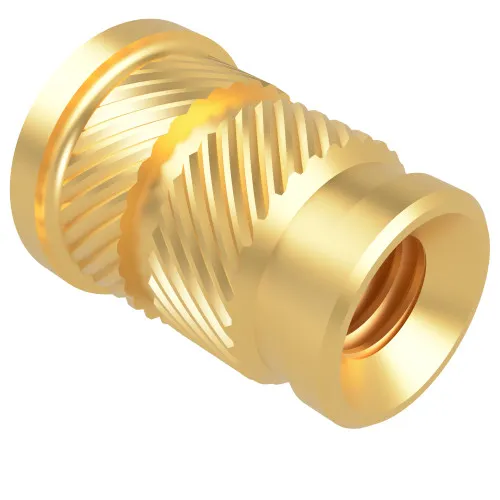

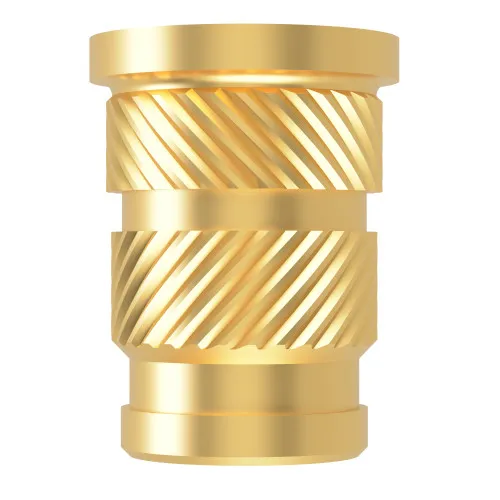

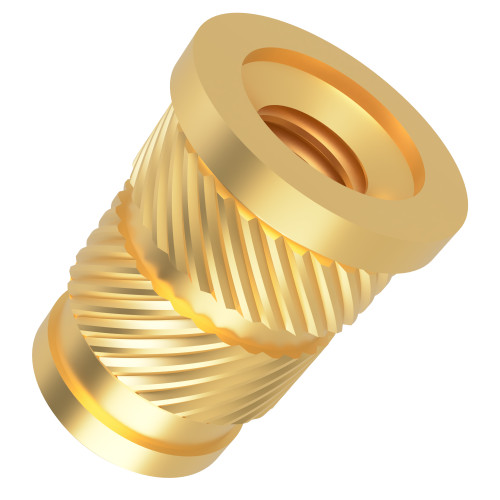

M6 x 12.7mm (Headed) Ultrasonic Threaded Insert For Plastic | Brass
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.68 | £0.81 |
| 100 - 999 | £0.45 | £0.54 |
| 1000 - 4999 | £0.34 | £0.41 |
| 5000 + | £0.27 | £0.32 |

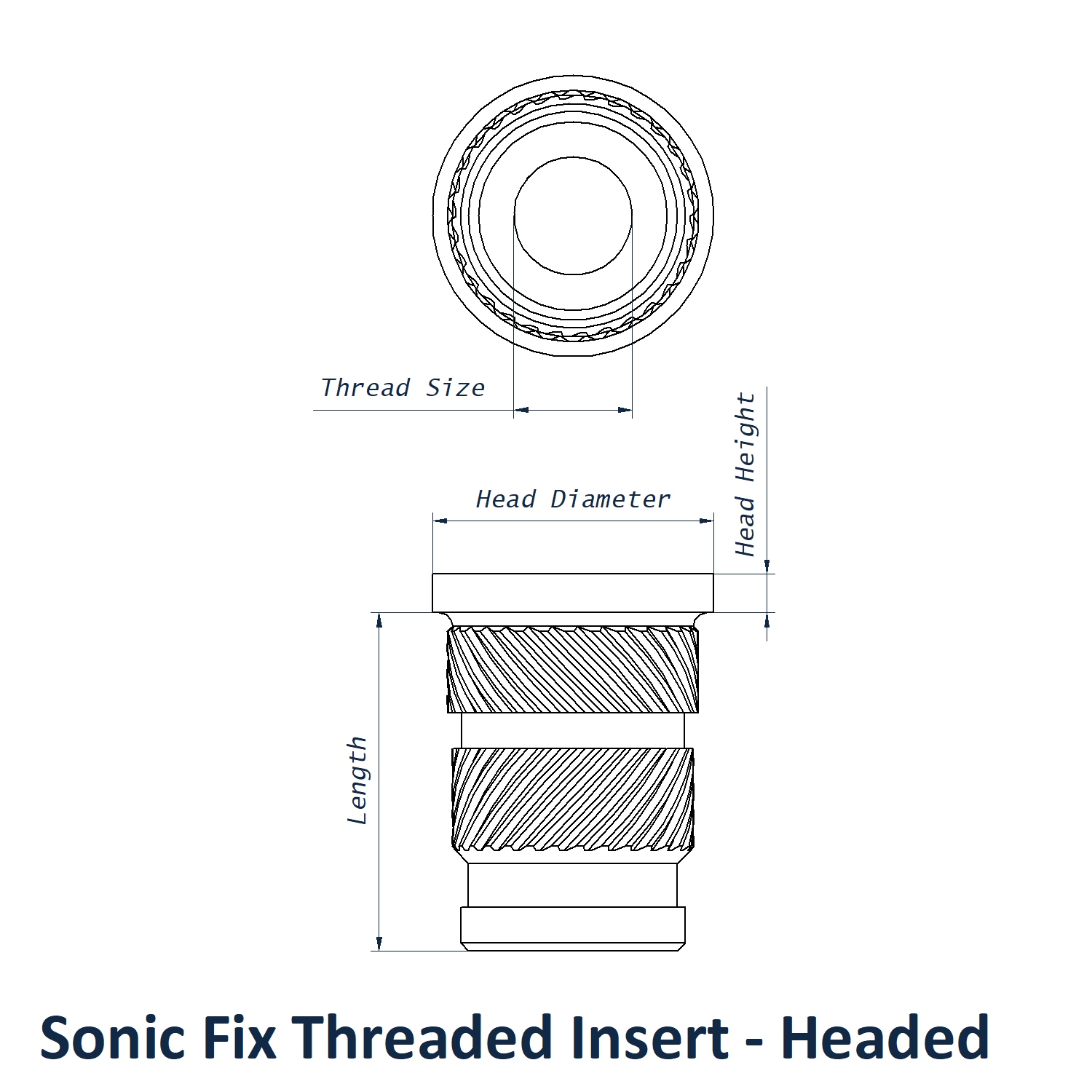

Product Specification
| Thread Size | M6 |
| Fixing Method | Ultrasonic |
| Recommended Hole Size | 8.0mm |
| Length | 12.7mm |
| Head Diameter | 9.5mm |
| Head Thickness | 1.35mm |
| Minimum Wall Thickness | 3.3mm |
| Insert Diameter | 7.9mm |
| Material | Brass |
Frequently Bought Together
Total Price: £0.00
M6 x 12.7mm Headed Sonic Threaded Insert For Plastic TIP-SH-M6-12.7-BRA
The M6 x 12.7mm Headed Sonic Threaded Insert For Plastic is designed for post mould installation into thermoplastics using heat or ultrasonic installation methods. Manufactured from brass, these inserts feature opposing knurls that provide a combination of high pull out resistance and excellent torque performance.
What are Headed Sonic Threaded Inserts?
Headed sonic threaded inserts are fastening components designed to create durable reusable female threads within thermoplastic materials. Installed using controlled heat or ultrasonic vibration, the insert softens the surrounding plastic during fitting to create a strong and reliable fixing point.
Key Features:
- Designed for post mould installation into thermoplastics
- Suitable for heat or ultrasonic installation methods
- Opposing knurl design improves pull out and torque resistance
- Allows installation into thin wall bosses
- Rapid installation process for production applications
- Free running female thread for smooth fastening
- Manufactured from durable brass
Key Applications and Industries
These sonic threaded inserts are commonly used within electronics, automotive manufacturing, consumer products, plastic housings and industrial assemblies where strong threaded fastening points are required within thermoplastic components.
Technical Specifications
- Product Code: TIP-SH-M6-12.7-BRA
- Thread Size: M6
- Length: 12.7mm
- Insert Diameter: 7.9mm
- Fixing Method: Ultrasonic
- Head Diameter: 9.5mm
- Head Thickness: 1.35mm
- Recommended Hole Size: 8.0mm
- Minimum Wall Thickness: 3.3mm
- Material: Brass
Benefits:
- Provides strong and reliable fastening within thermoplastics
- Supports rapid installation for production environments
- Improves pull out and torque resistance
- Suitable for thin wall boss applications
- Compatible with ultrasonic and heat installation methods
Why Choose Vital Parts?
Vital Parts supplies high quality threaded inserts and fastening solutions for industrial and commercial applications throughout the UK.
- Large UK stock availability
- Fast UK delivery options
- Competitive trade pricing
- Experienced technical support
If heat installation is used, ensure the insert softens the surrounding plastic without melting it to help minimise flash formation. During ultrasonic installation, low amplitude vibrations are recommended to avoid excessive pressure and ensure proper material flow around the insert.
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
