1/4in Black Threaded Bushing (Smooth Bore) - 7.9mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.25 | £1.50 |
| 250 - 499 | £1.07 | £1.29 |
| 500 - 999 | £0.94 | £1.13 |
| 1000 - 4999 | £0.83 | £1.00 |
| 5000 - 9999 | £0.75 | £0.90 |
| 10000 + | £0.62 | £0.75 |
£1.50 / each
.png)
Product Specification
| To Fit Thread Size | 1/4" |
| Internal Diameter | 7.9mm |
| Overall Height | 16.8mm |
| Wrenching Flats | 16.0mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

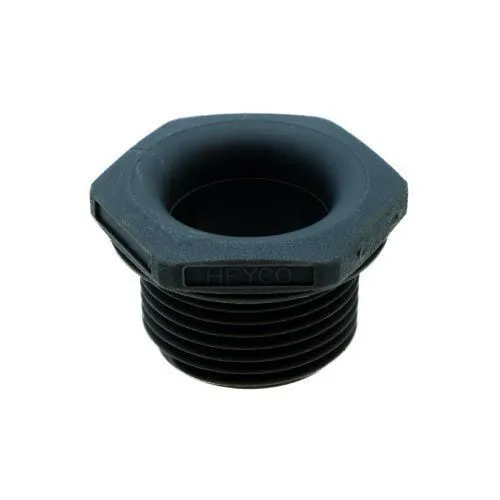

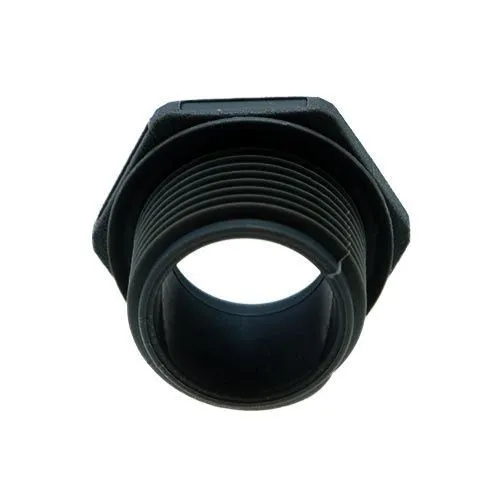

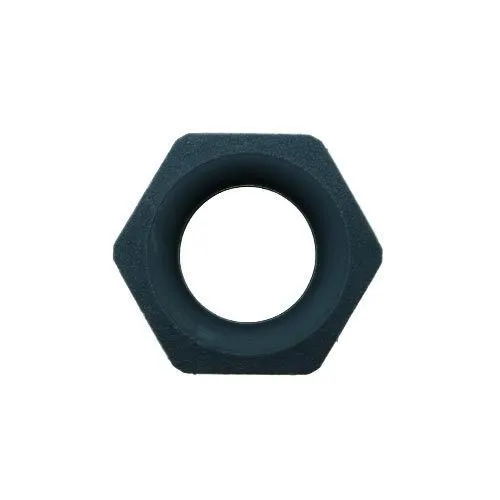

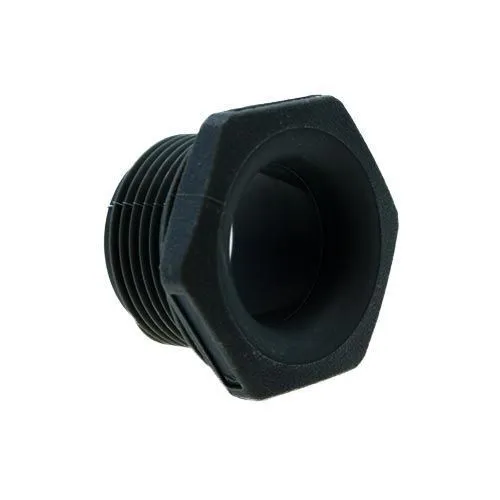

1/4" Threaded Smooth Bore Bushing | 7.9mm Internal Diameter | Black Nylon
Designed for compact threaded openings, this black threaded smooth bore bushing suits 1/4" NPT style cable entry points where a neat protective liner is needed. The 7.9mm internal diameter creates a smooth pass-through for wires or small cable runs, while the 16.0mm wrenching flats allow controlled tightening during installation.
The black Nylon construction is well suited to equipment where a discreet finish is preferred. As part of a UL94V-2 rated Nylon 6/6 style bushing range, it provides non-conductive cable protection for electrical, telecoms and small machinery assemblies.
What Are Threaded Smooth Bore Bushings?
Threaded smooth bore bushings are cable protection components designed to screw into threaded holes and provide a smooth internal passage for wires, cable bundles or tubing. Unlike a plain panel hole, the smooth bore helps protect cable insulation from abrasion, while the threaded outside supports secure fitting into compatible NPT style openings.
Common Applications
- Small control panel cable entries
- Telecoms equipment wiring routes
- Instrument casing pass-through holes
- Compact machinery cable protection

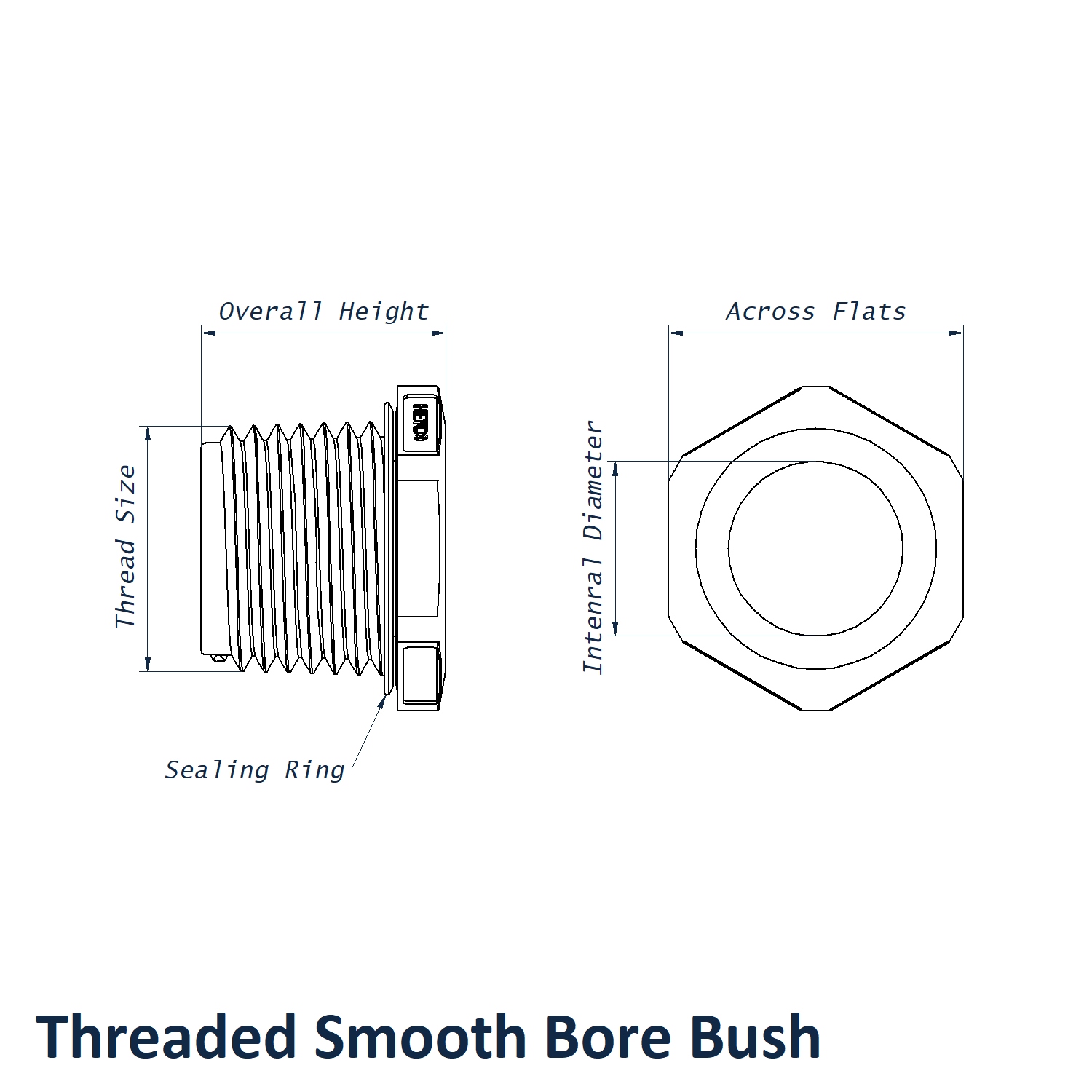

1/4" Black Threaded Smooth Bore Bushing Dimensions
- To Fit Thread Size: 1/4"
- Internal Diameter: 7.9mm
- Wrenching Flats: 16.0mm
- Overall Height: 16.8mm
- Colour: Black
- Material: Nylon
Cable Protection and Threaded Hole Fitment
This 1/4" black threaded smooth bore bushing is commonly used where a cable must pass through a threaded hole without making direct contact with an exposed metal edge. The smooth central bore helps support cleaner cable routing, while the Nylon body provides an insulating barrier for electrical, mechanical and equipment manufacturing applications.
View our full Threaded Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking whether this threaded smooth bore bushing suits your cable size, panel thread or enclosure application, speak with the Vital Parts team on 01233 713581. We can help with sizing guidance, samples where available and support for repeat trade orders.
