3/8in Black Threaded Bushing (Smooth Bore) - 10.9mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.31 | £1.57 |
| 250 - 499 | £1.12 | £1.35 |
| 500 - 999 | £0.98 | £1.18 |
| 1000 - 4999 | £0.88 | £1.05 |
| 5000 - 9999 | £0.78 | £0.94 |
| 10000 + | £0.66 | £0.79 |
£1.57 / each
Product Specification
| To Fit Thread Size | 3/8" |
| Internal Diameter | 10.9mm |
| Overall Height | 17.5mm |
| Wrenching Flats | 21.0mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
3/8" Threaded Smooth Bore Bushing | 10.9mm Internal Diameter | Black Nylon
Manufactured for 3/8" threaded apertures, this black smooth bore bushing provides a protective cable guide with a larger 10.9mm internal diameter. The threaded outer body helps secure the part into pre-threaded panels, reducing movement while keeping cable jackets away from sharp metal edges.
This size gives additional cable clearance compared with the 1/4" versions, making it useful for mid-size electrical leads and signal cable routes. The smooth bore design helps reduce rubbing points where cable movement or vibration could otherwise mark the insulation.
What Are Threaded Smooth Bore Bushings?
Threaded smooth bore bushings are cable protection components designed to screw into threaded holes and provide a smooth internal passage for wires, cable bundles or tubing. Unlike a plain panel hole, the smooth bore helps protect cable insulation from abrasion, while the threaded outside supports secure fitting into compatible NPT style openings.
Common Applications
- Machine guard cable protection
- Fabricated box section wiring holes
- Automation panel cable routing
- Mid-size cable pass-through points

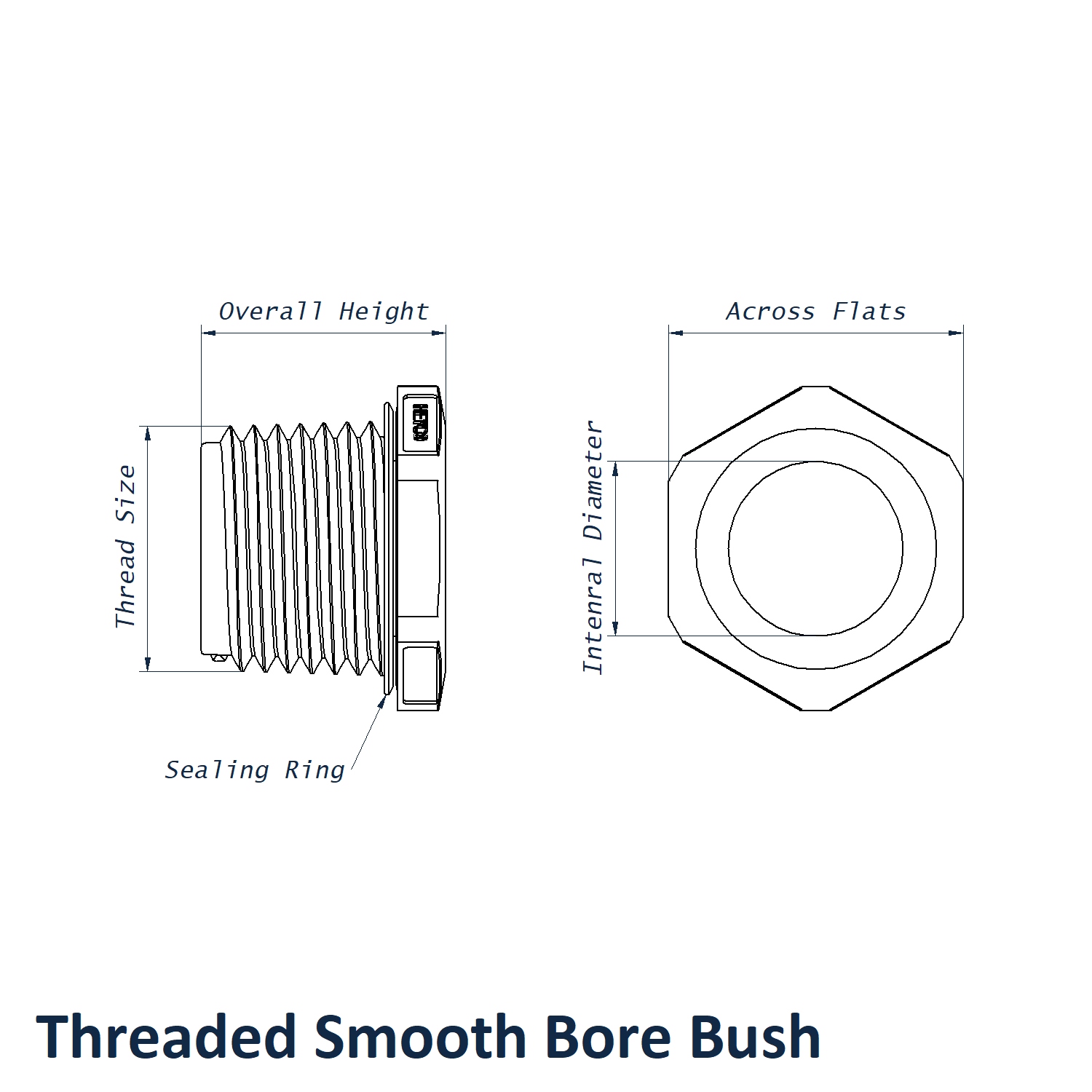

3/8" Black Threaded Smooth Bore Bushing Dimensions
- To Fit Thread Size: 3/8"
- Internal Diameter: 10.9mm
- Wrenching Flats: 21.0mm
- Overall Height: 17.5mm
- Colour: Black
- Material: Nylon
Cable Protection and Threaded Hole Fitment
This 3/8" black smooth bore bush is commonly used where a cable must pass through a threaded hole without making direct contact with an exposed metal edge. The smooth central bore helps support cleaner cable routing, while the Nylon body provides an insulating barrier for electrical, mechanical and equipment manufacturing applications.
View our full Threaded Smooth Bore Bushings range.
Product Support and Trade Orders
If you are comparing 3/8" cable bushing options or need help checking clearance for your cable diameter, call Vital Parts on 01233 713581. We can advise on fitment, specification checks and supply requirements for trade users.
