3/8in Grey Threaded Bushing (Smooth Bore) - 10.9mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.31 | £1.57 |
| 250 - 499 | £1.12 | £1.35 |
| 500 - 999 | £0.98 | £1.18 |
| 1000 - 4999 | £0.88 | £1.05 |
| 5000 - 9999 | £0.78 | £0.94 |
| 10000 + | £0.66 | £0.79 |
£1.57 / each
.png)
Product Specification
| To Fit Thread Size | 3/8" |
| Internal Diameter | 10.9mm |
| Overall Height | 17.5mm |
| Wrenching Flats | 21.0mm |
| Colour | Grey |
Frequently Bought Together
Total Price: £0.00

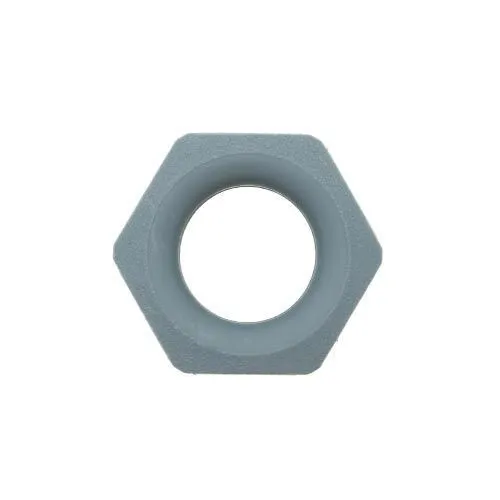

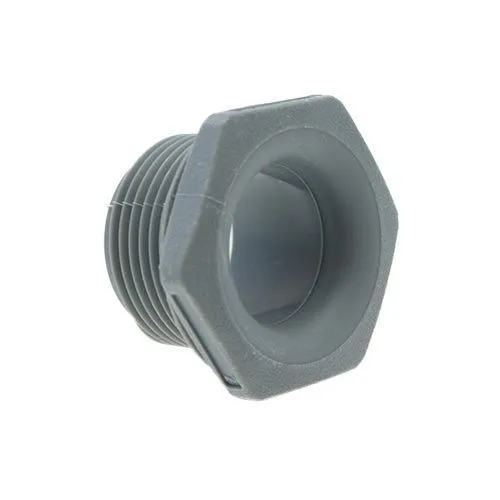

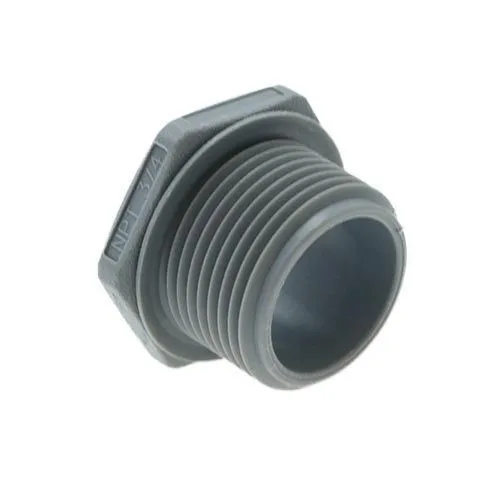

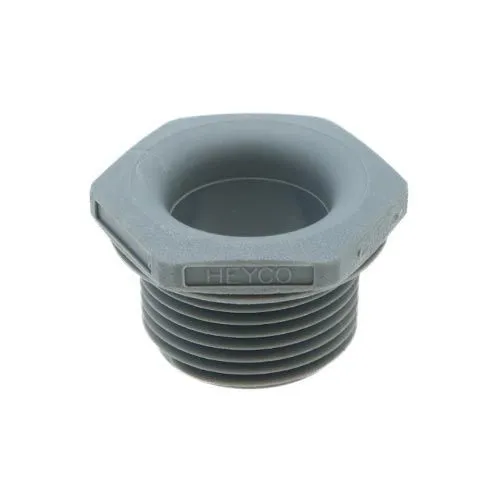

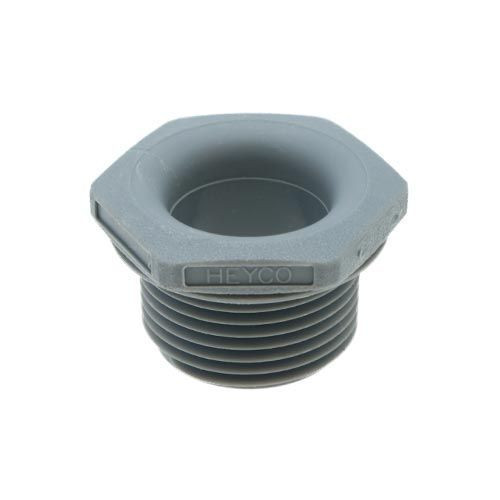

3/8" Threaded Smooth Bore Bushing | 10.9mm Internal Diameter | Grey Nylon
Commonly selected for grey panel builds and electrical enclosures, this 3/8" threaded cable bush combines a 10.9mm smooth bore with 21.0mm wrenching flats for easier fitting. It is a useful option where the bushing needs to blend into lighter housings while still offering reliable cable edge protection.
The grey colour can be helpful for enclosure builds, instrumentation panels and equipment where visual matching matters. Its Nylon body offers a lightweight, non-conductive barrier between the cable and the surrounding threaded metal edge.
What Are Threaded Smooth Bore Bushings?
Threaded smooth bore bushings are cable protection components designed to screw into threaded holes and provide a smooth internal passage for wires, cable bundles or tubing. Unlike a plain panel hole, the smooth bore helps protect cable insulation from abrasion, while the threaded outside supports secure fitting into compatible NPT style openings.
Common Applications
- Control cabinet threaded entries
- Instrumentation housing cable guides
- Grey equipment panel finishes
- Maintenance replacement bushings

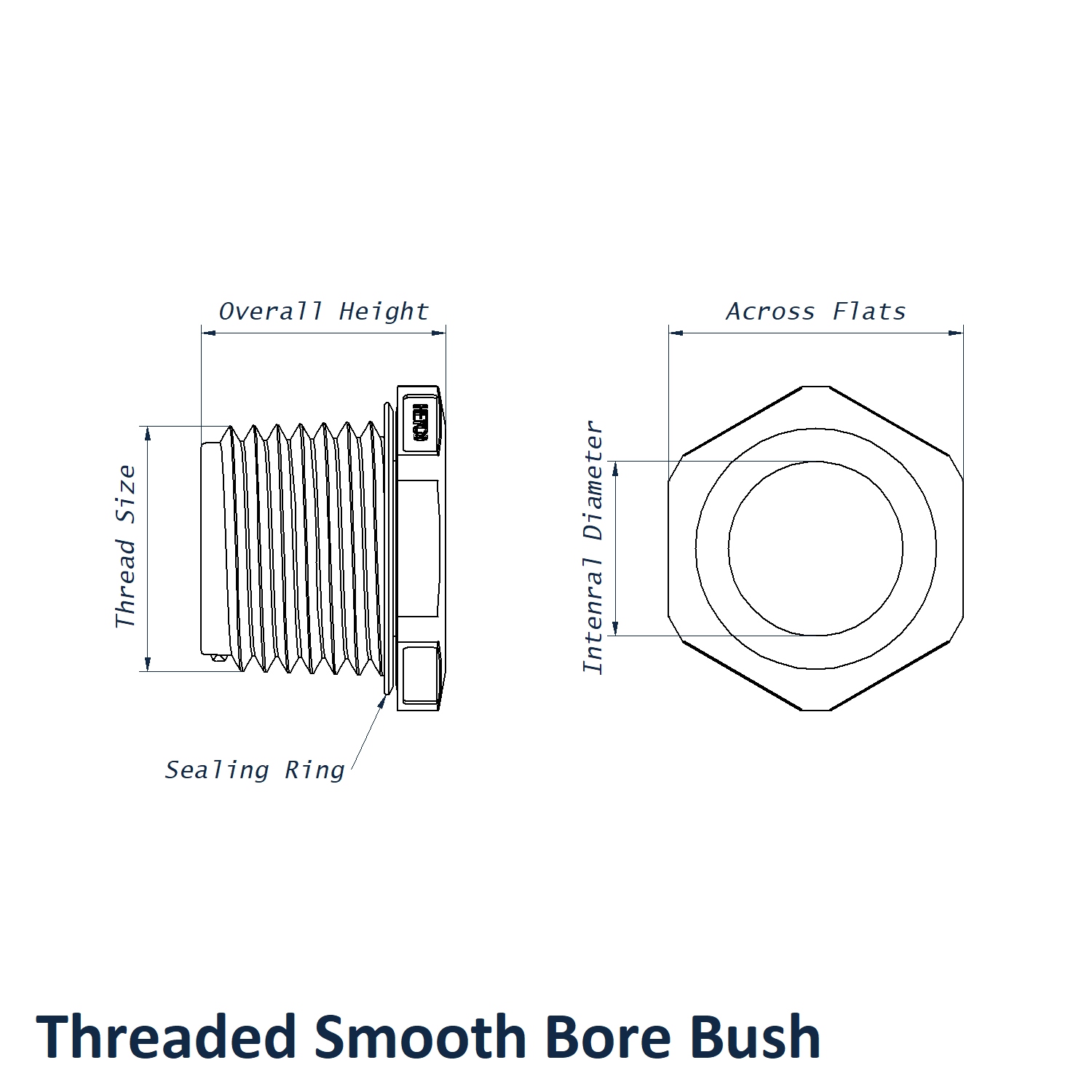

3/8" Grey Threaded Smooth Bore Bushing Dimensions
- To Fit Thread Size: 3/8"
- Internal Diameter: 10.9mm
- Wrenching Flats: 21.0mm
- Overall Height: 17.5mm
- Colour: Grey
- Material: Nylon
Cable Protection and Threaded Hole Fitment
This grey threaded cable bush is commonly used where a cable must pass through a threaded hole without making direct contact with an exposed metal edge. The smooth central bore helps support cleaner cable routing, while the Nylon body provides an insulating barrier for electrical, mechanical and equipment manufacturing applications.
View our full Threaded Smooth Bore Bushings range.
Product Support and Trade Orders
For help selecting the correct grey threaded cable bush for control panels, housings or production equipment, speak with our team on 01233 713581. We can support product matching, availability checks and larger order quantities.
