4mm x 12mm Torx Countersunk Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.57 | £0.69 |
| 50 - 99 | £0.34 | £0.41 |
| 100 - 249 | £0.23 | £0.28 |
| 250 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.08 | £0.10 |
£0.69 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.35mm |
| Head Height | 1.90mm |
| Drive | T15 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
4mm x 12mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Ideal for outdoor equipment housings and rigid plastic panels, this 4mm x 12mm PT45 plastic screw is manufactured from A2 Stainless Steel with a Countersunk head and T15 Torx recess. The thread-forming profile displaces compatible plastic to create the mating thread without relying on conventional cutting action.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 screws are designed for moulded or predrilled pilot holes in hard plastics and reinforced materials. The countersunk head provides a smooth low-profile finish while the Torx drive gives positive tool engagement for manual or automated assembly.
Common Applications
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Consumer Electronics: Secures hard-plastic casings and panels without leaving a prominent head above the surface.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.

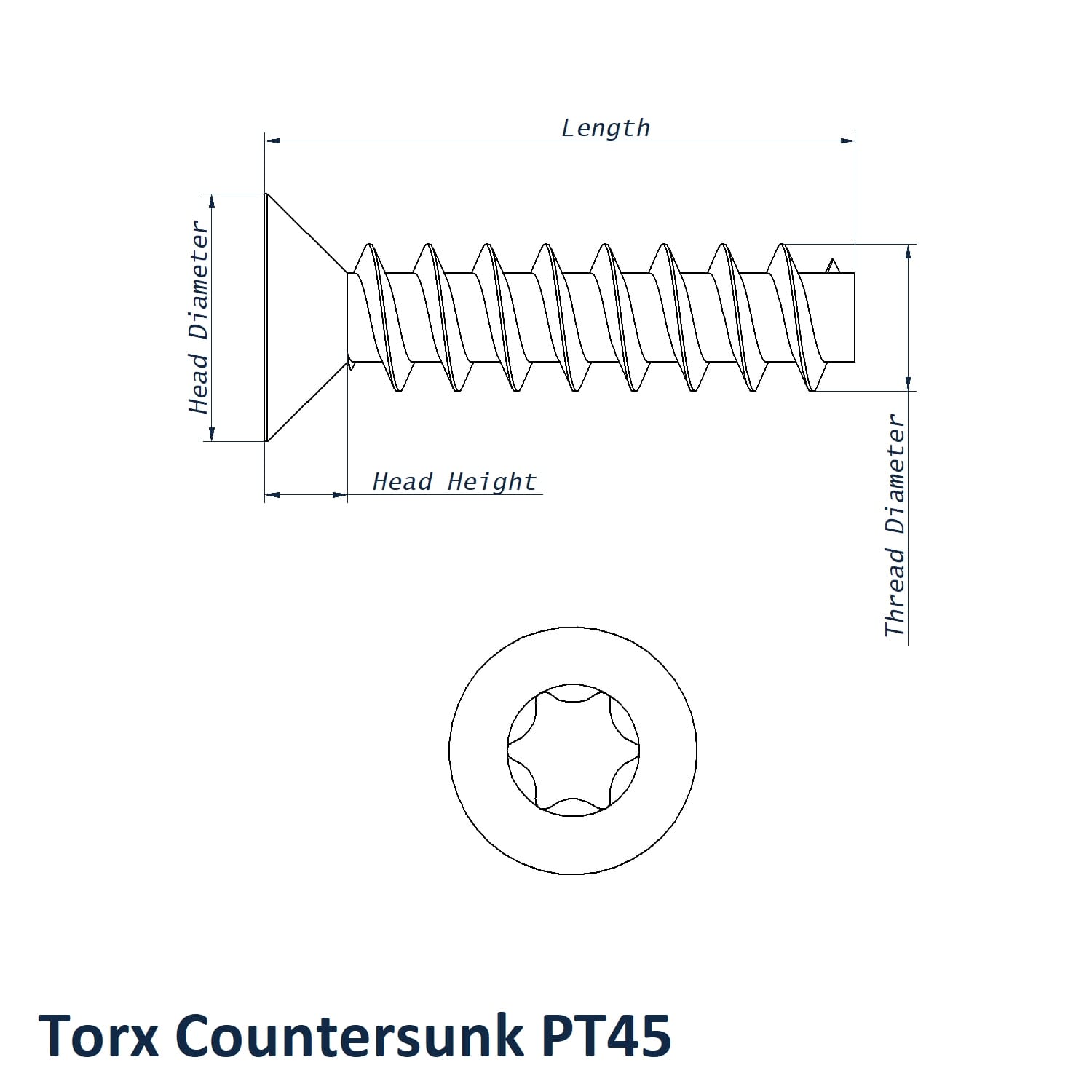

4mm x 12mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 12mm
- Head Diameter: 7.35mm
- Head Height: 1.90mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- A2 Stainless Steel construction provides improved corrosion resistance for suitable demanding environments.
- T15 Torx drive provides positive engagement and efficient torque transfer.
Compare other sizes in the Vital Parts Torx Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
