4mm x 8mm Torx Countersunk Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 49 | £0.43 | £0.52 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 249 | £0.17 | £0.21 |
| 250 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.11 | £0.13 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.07 | £0.08 |
£0.52 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 8mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.35mm |
| Head Height | 1.90mm |
| Drive | T15 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
4mm x 8mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Developed for automotive interior plastic components, this 4mm x 8mm Torx Countersunk Screw is part of the PT45 range for hard plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials such as polycarbonate and fibre-reinforced plastics.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is suited to materials such as polycarbonate and fibre-reinforced plastics while the countersunk head allows a flush installation into a matching recess.
Common Applications
- Lighting Products: Secures rigid plastic bezels, covers and housings where a flush finished face is useful.
- Food and Catering Equipment: Supports suitable rigid-plastic assemblies where corrosion-resistant A2 Stainless Steel is preferred.
- Automotive Components: Fastens rigid plastic trim and moulded parts where a low-profile screw head and Torx drive are beneficial.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.

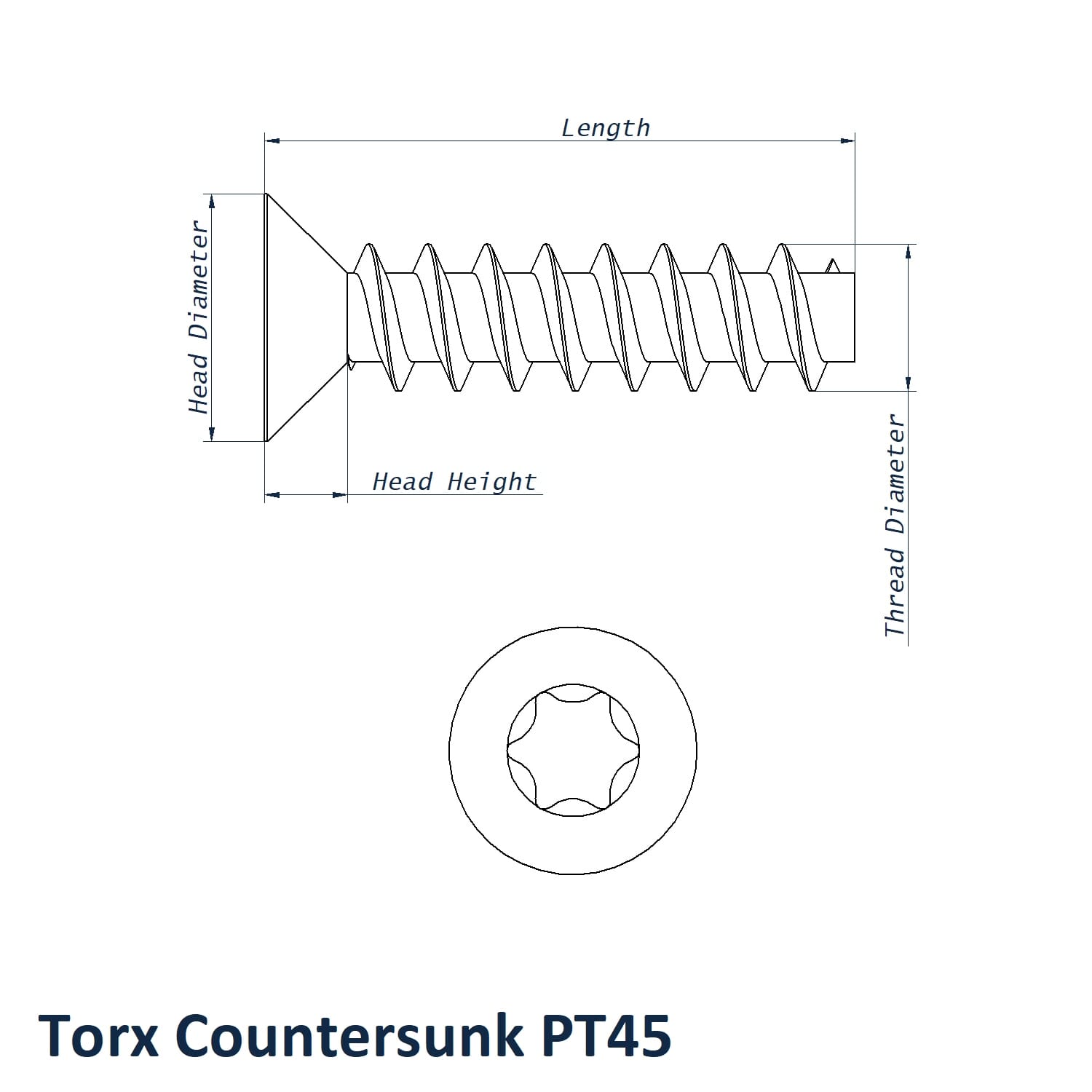

4mm x 8mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 8mm
- Head Diameter: 7.35mm
- Head Height: 1.90mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- 4mm thread size and 8mm thread length provide the primary fastening dimensions.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
View the complete Torx Countersunk PT45 Screws for Hard Plastics range for alternative sizes. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
