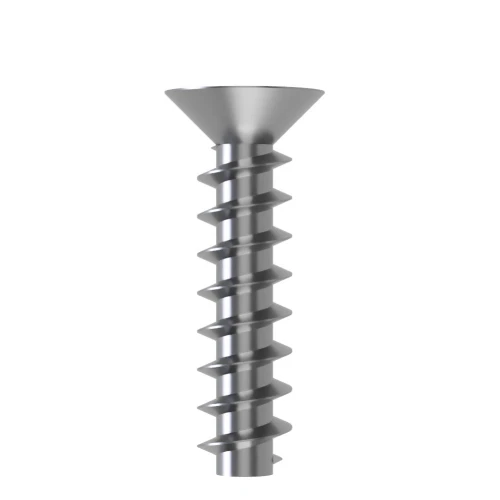

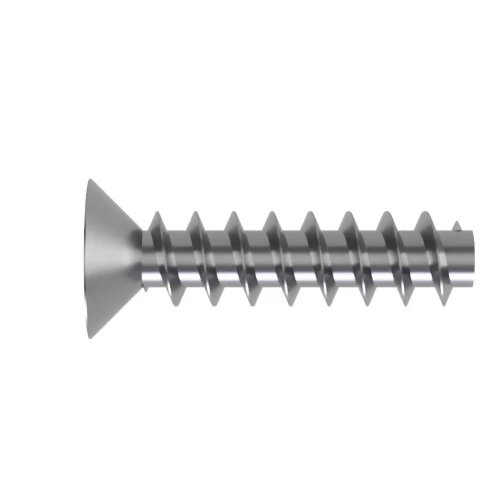

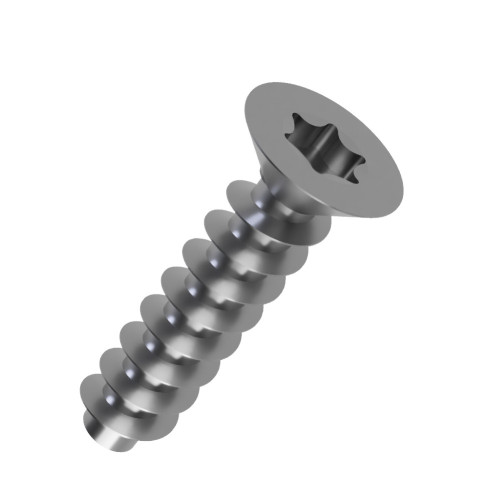

4mm x 16mm Torx Countersunk Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.84 | £1.01 |
| 50 - 99 | £0.50 | £0.60 |
| 100 - 249 | £0.33 | £0.40 |
| 250 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.21 | £0.25 |
| 1000 - 4999 | £0.17 | £0.20 |
| 5000 + | £0.12 | £0.15 |
£1.01 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 16mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.35mm |
| Head Height | 1.90mm |
| Drive | T15 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
4mm x 16mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Providing a dedicated fastening option for food and catering equipment components, this 4mm x 16mm Torx Countersunk PT45 Screw combines a 45° trilobular thread with A2 Stainless Steel. The countersunk head creates a low-profile finish while the Torx recess supports efficient torque transfer.
What Are Torx Countersunk PT45 Screws?
A Torx Countersunk PT45 screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful where secure engagement, flush installation and a strong drive-to-strip ratio are required.
Common Applications
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Consumer Electronics: Secures hard-plastic casings and panels without leaving a prominent head above the surface.

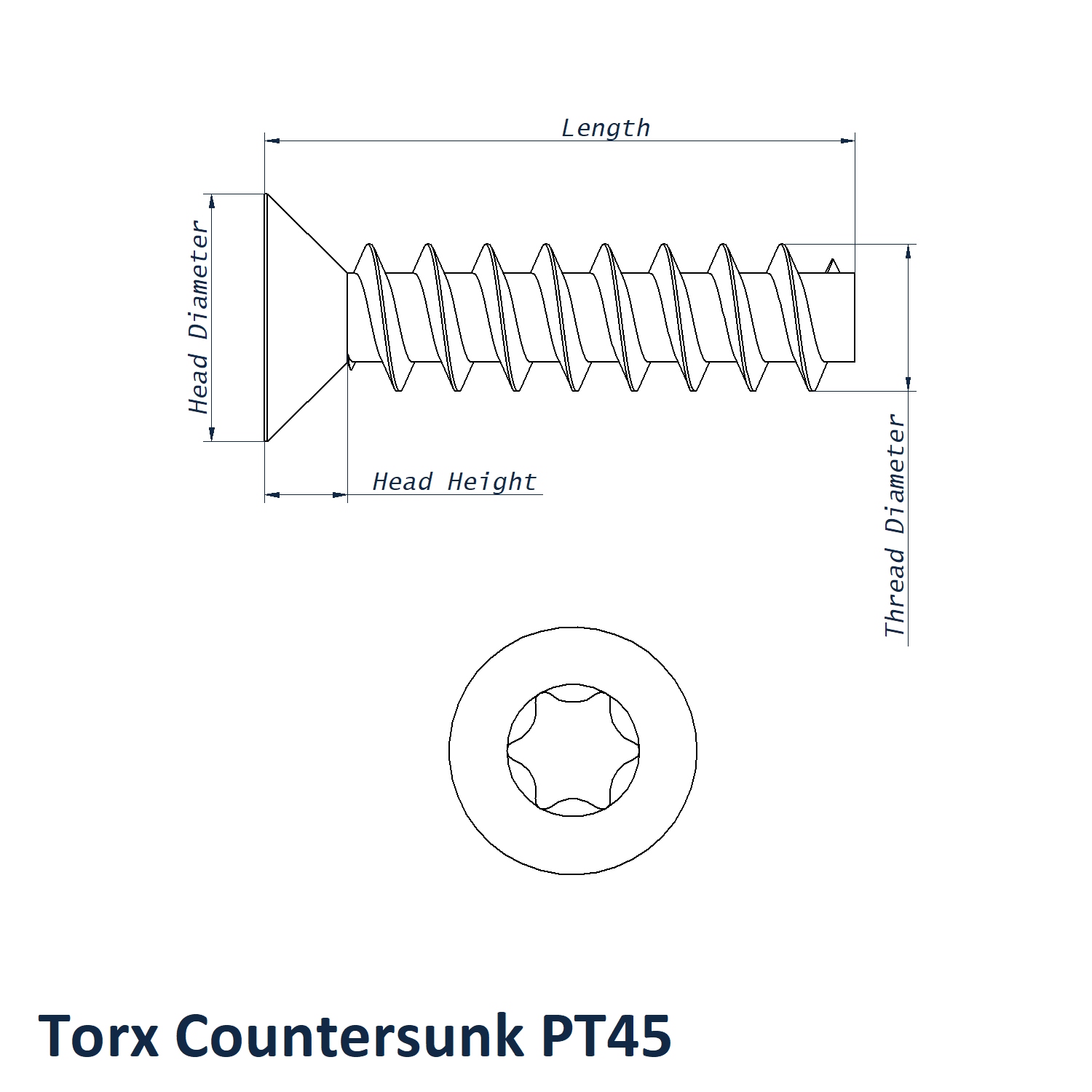

4mm x 16mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 16mm
- Head Diameter: 7.35mm
- Head Height: 1.90mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
Browse the full Torx Countersunk PT45 Screws for Hard Plastics category. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection, pilot-hole design and installation guidance. Technical support is available on 01233 713581.
