3mm x 20mm Torx Pan Screw for Hard Plastics (PT45) - T8 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.11 | £0.13 |
| 100 - 249 | £0.07 | £0.08 |
| 250 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.21 / each
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 20mm |
| Material | Steel BZP |
| Head Diameter | 5.00mm |
| Head Height | 1.95mm |
| Drive | T8 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

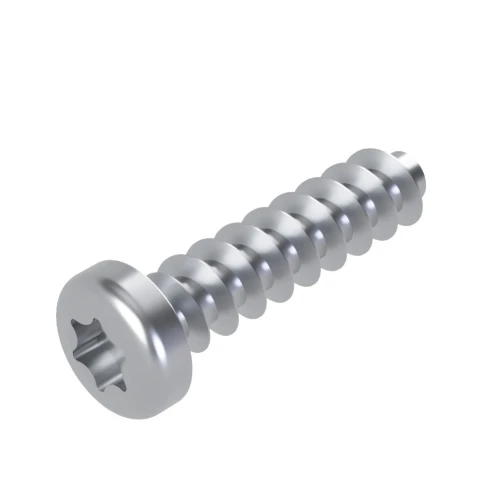

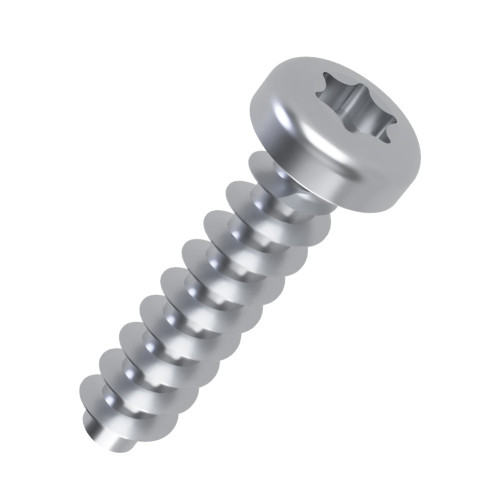

3mm x 20mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Offering a thread-forming solution for engineering plastics used in manufactured assemblies, this 3mm x 20mm PT45 Screw combines a Pan head with a T8 Torx recess. The Bright Zinc Plated Steel fastener uses a shorter 45° thread and trilobular body to suit compatible hard plastics and reinforced materials.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics. The Torx drive offers high contact area for efficient torque transfer.
Common Applications
- Production Assemblies: Provides a high-contact Torx drive format for repeatable fastening into hard-plastic components.
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.

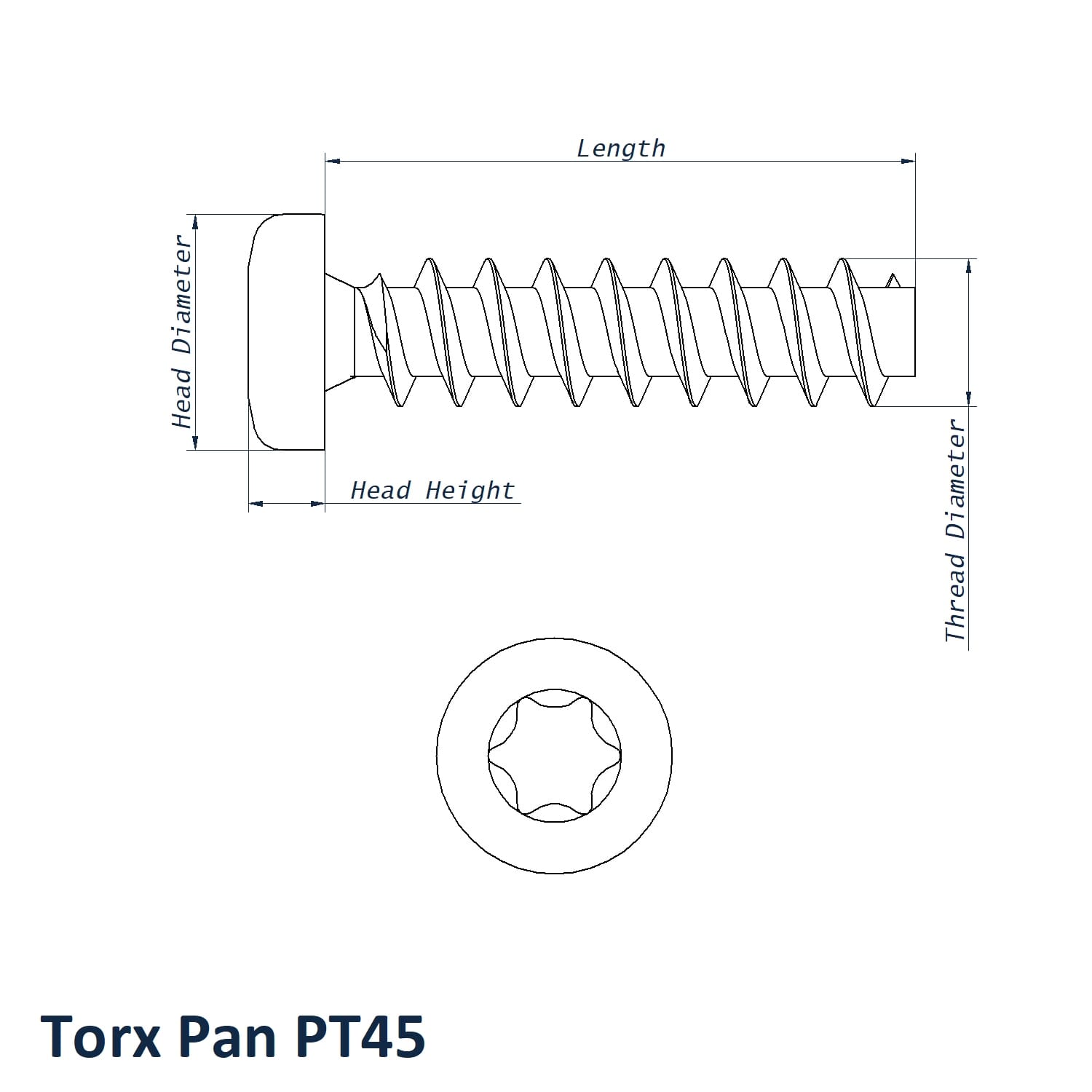

3mm x 20mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 20mm
- Head Diameter: 5.00mm
- Head Height: 1.95mm
- Drive: T8
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 5.00mm head diameter and 1.95mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the hard-plastic component.
- The wider Torx Pan PT45 range includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
Further PT45 sizes are available through the Torx Pan Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
