3mm x 6mm Torx Pan Screw for Hard Plastics (PT45) - T8 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.11 | £0.13 |
| 100 - 249 | £0.07 | £0.08 |
| 250 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.21 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 6mm |
| Material | Steel BZP |
| Head Diameter | 5.00mm |
| Head Height | 1.95mm |
| Drive | T8 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

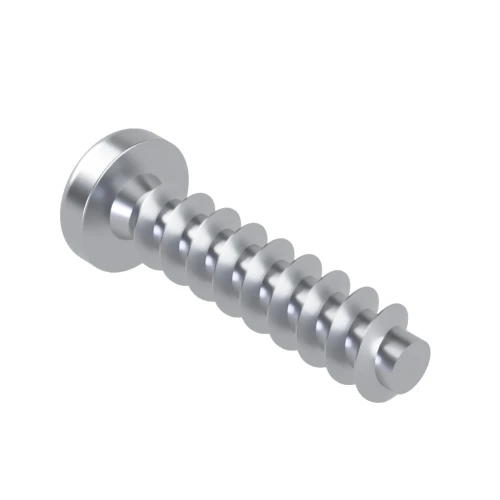

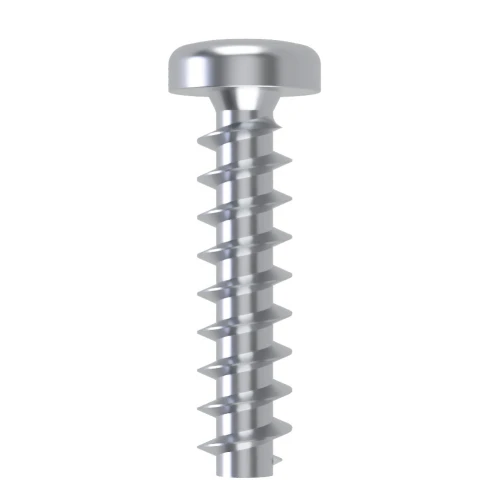

3mm x 6mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
This 3mm x 6mm PT45 Screw is intended for engineering plastics used in manufactured assemblies. It uses a Pan head, T8 Torx recess and Bright Zinc Plated Steel construction with a trilobular thread form developed for hard-plastic fastening.
What Are Torx Pan PT45 Screws?
PT45 Torx Pan Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while using less torque than an equivalent fully round thread form.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.

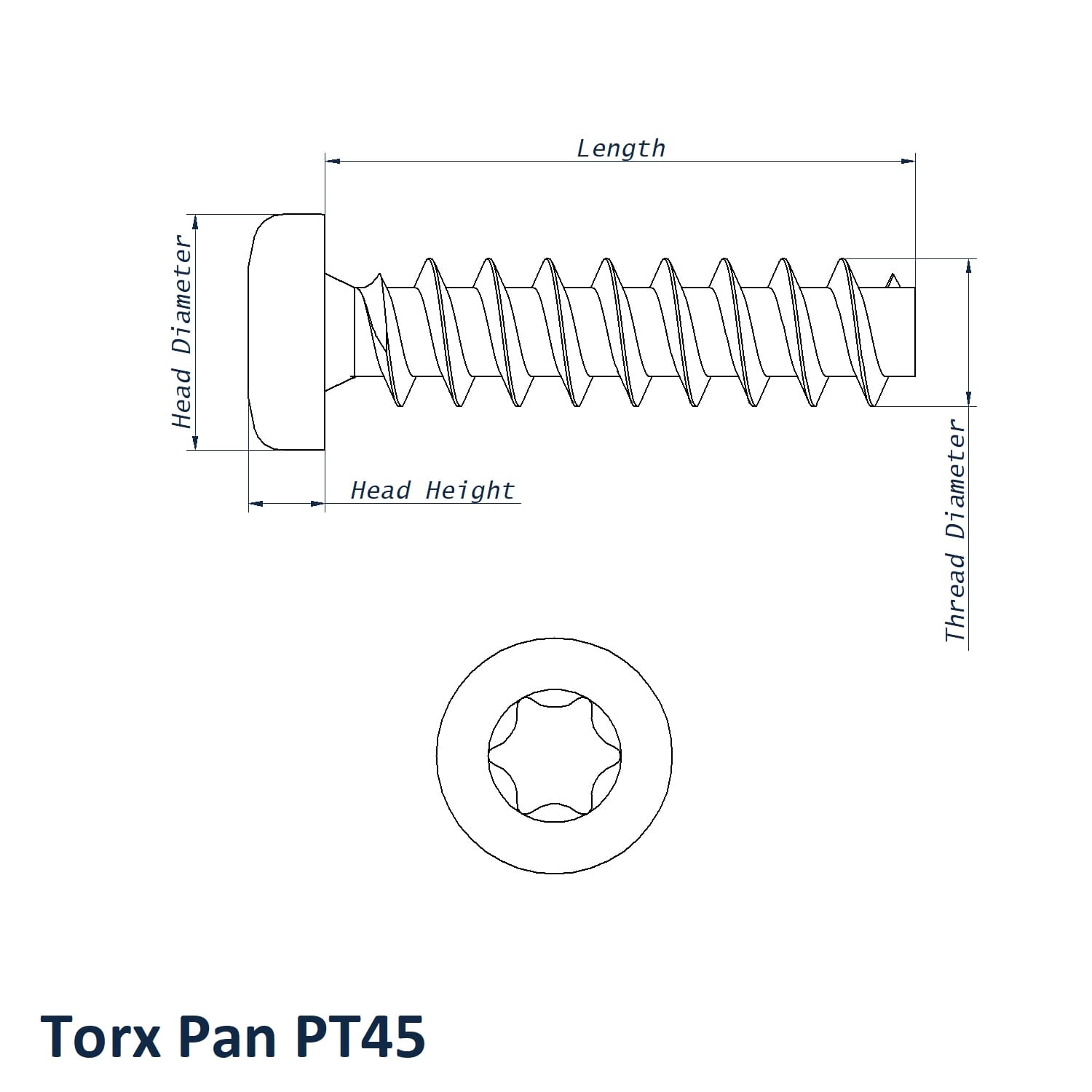

3mm x 6mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 6mm
- Head Diameter: 5.00mm
- Head Height: 1.95mm
- Drive: T8
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- 5.00mm head diameter and 1.95mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the hard-plastic component.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- 3mm thread size and 6mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Torx Pan PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
