3mm x 10mm Torx Pan Screw for Hard Plastics (PT45) - T8 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.14 | £0.17 |
| 50 - 99 | £0.08 | £0.10 |
| 100 - 249 | £0.06 | £0.07 |
| 250 - 499 | £0.04 | £0.05 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
£0.17 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 5.00mm |
| Head Height | 1.95mm |
| Drive | T8 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

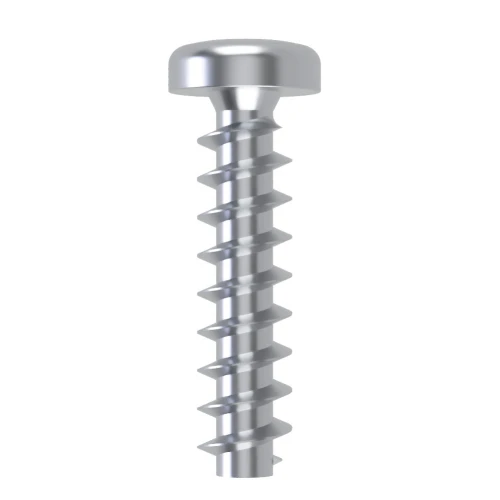

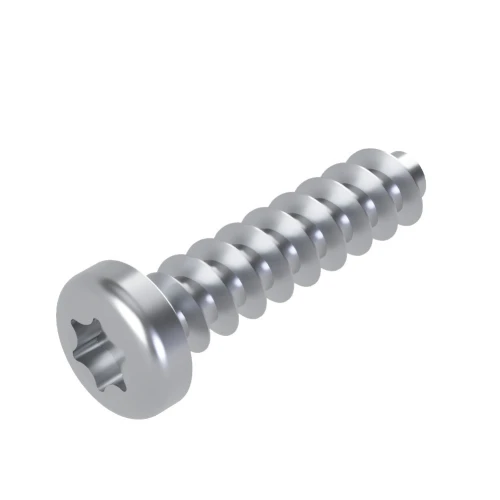

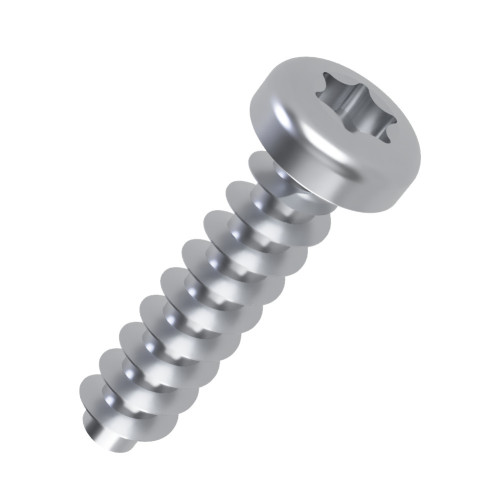

3mm x 10mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Ideal for consumer electronics and appliance housings, this 3mm x 10mm PT45 plastic screw is manufactured from Bright Zinc Plated Steel with a Pan head and T8 Torx drive. The trilobular thread form pushes material aside to create the mating thread without relying on conventional cutting action.
What Are Torx Pan PT45 Screws?
PT45 Torx Pan Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while using less torque than an equivalent fully round thread form.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.

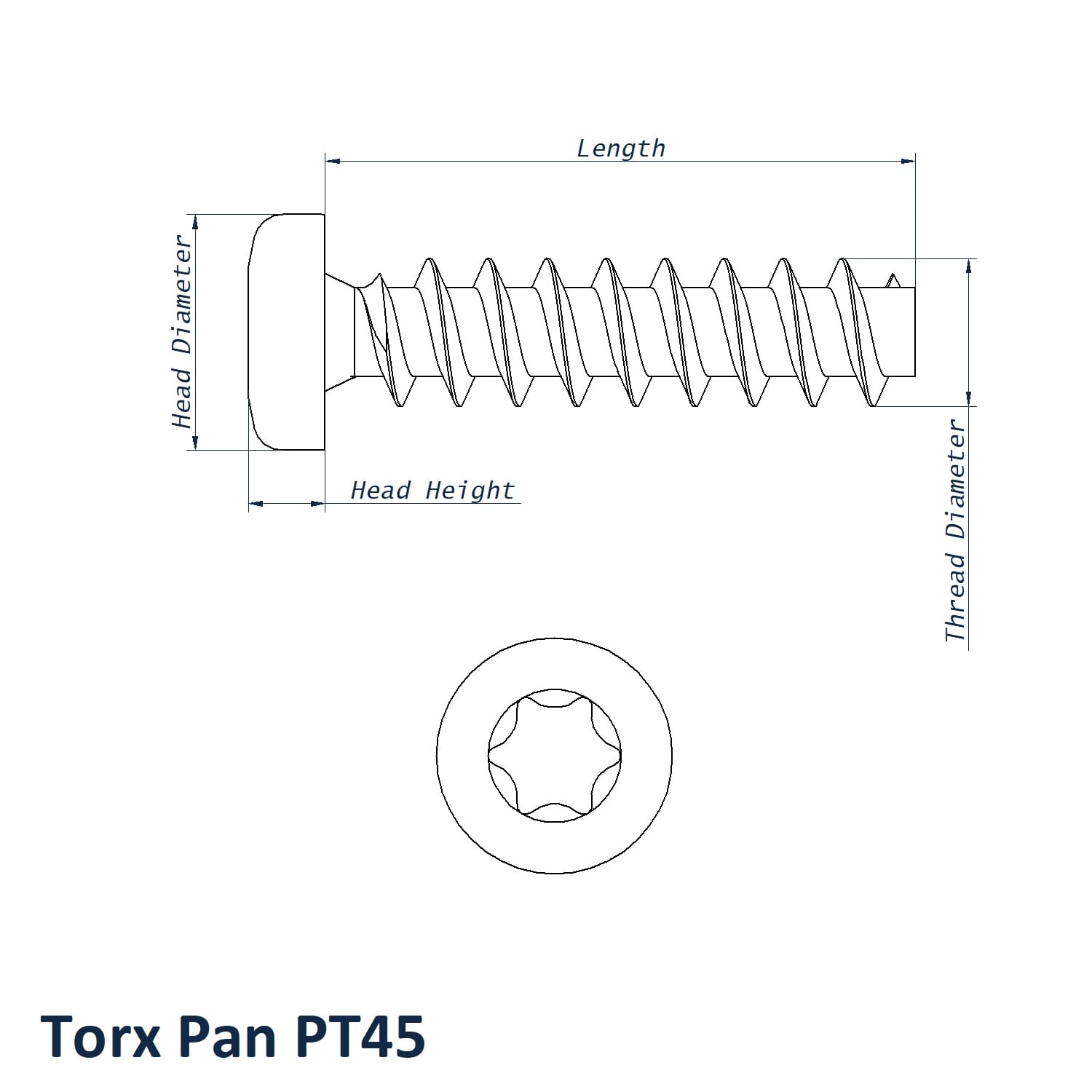

3mm x 10mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 10mm
- Head Diameter: 5.00mm
- Head Height: 1.95mm
- Drive: T8
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Pan head provides a broad bearing surface above the hard-plastic component.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- T8 Torx drive provides positive engagement and efficient torque transfer.
See related dimensions and materials in the Torx Pan PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
