5mm x 10mm Torx Pan Screw for Hard Plastics (PT45) - T20 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.40 | £0.48 |
| 50 - 99 | £0.24 | £0.29 |
| 100 - 249 | £0.16 | £0.19 |
| 250 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.06 | £0.07 |
£0.48 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 8.00mm |
| Head Height | 2.80mm |
| Drive | T20 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

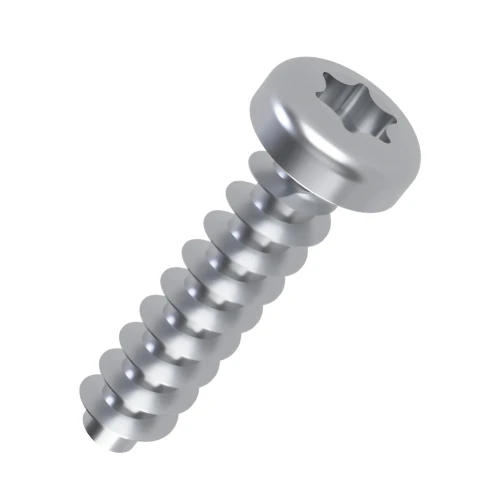

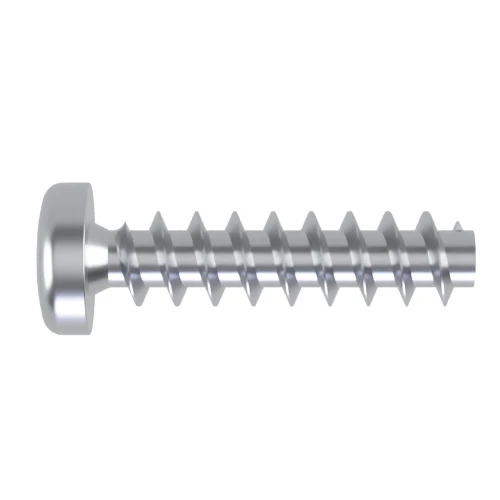

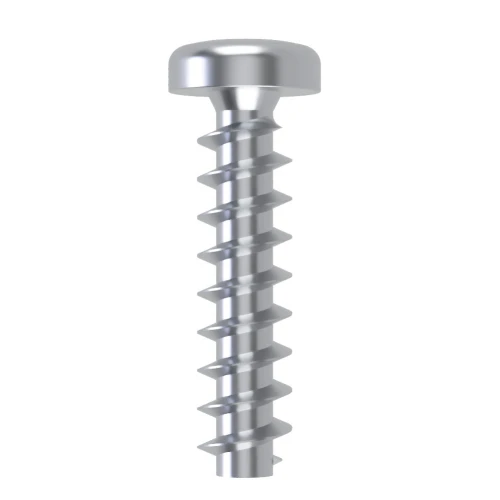

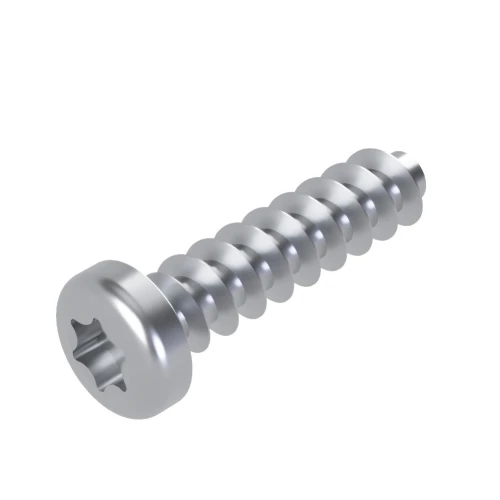

5mm x 10mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Ideal for consumer electronics and appliance housings, this 5mm x 10mm PT45 plastic screw is manufactured from Bright Zinc Plated Steel with a Pan head and T20 Torx drive. The trilobular thread form pushes material aside to create the mating thread without relying on conventional cutting action.
What Are Torx Pan PT45 Screws?
A PT45 Torx screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Glass-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.

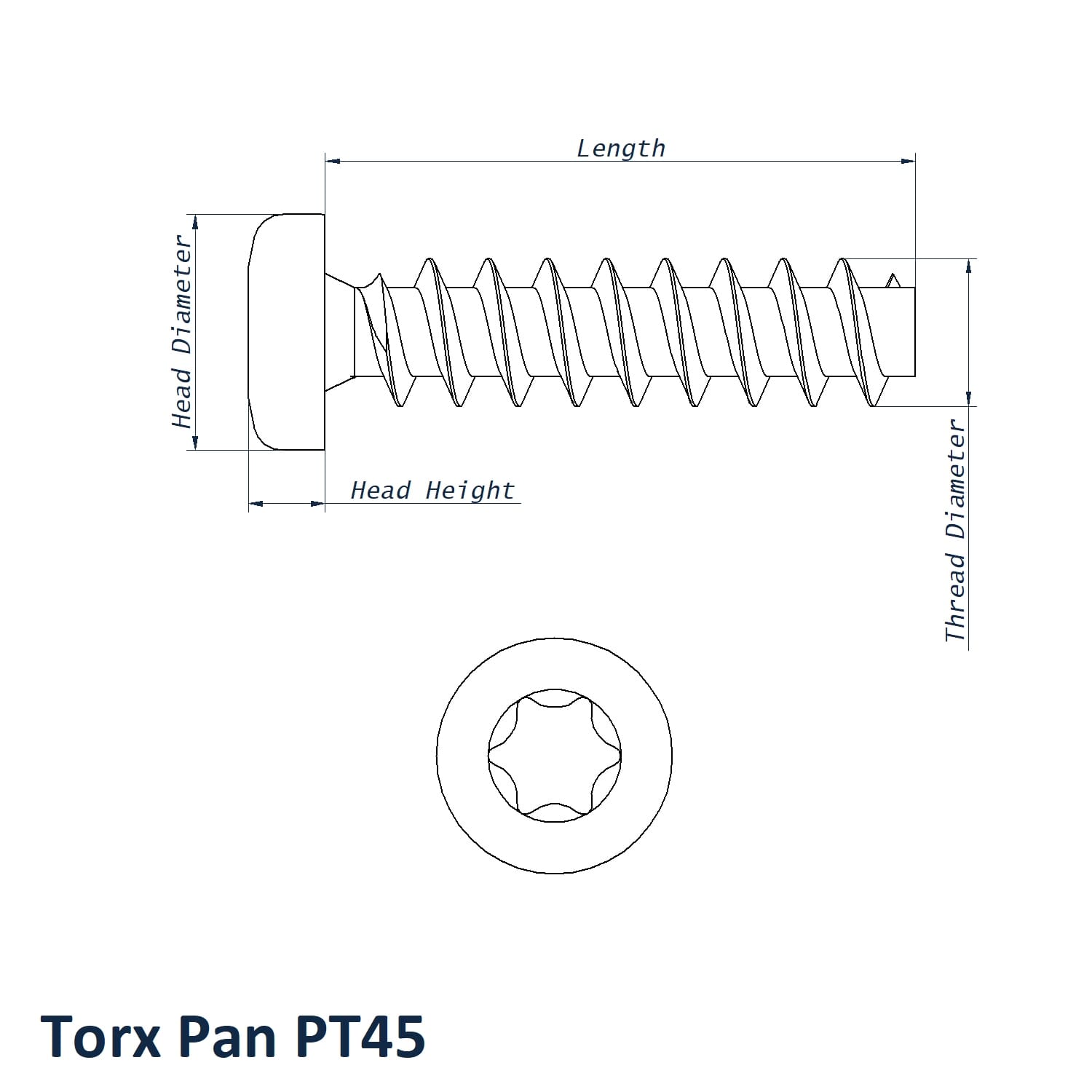

5mm x 10mm Torx Pan PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 10mm
- Head Diameter: 8.00mm
- Head Height: 2.80mm
- Drive: T20
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 8.00mm head diameter and 2.80mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the hard-plastic component.
- The wider Torx Pan PT45 range includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
Further PT45 sizes are available through the Torx Pan Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
