5mm x 12mm Torx Pan Screw for Hard Plastics (PT45) - T20 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.27 | £0.32 |
| 50 - 99 | £0.16 | £0.19 |
| 100 - 249 | £0.11 | £0.13 |
| 250 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.04 | £0.05 |
£0.32 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 12mm |
| Material | Steel BZP |
| Head Diameter | 8.00mm |
| Head Height | 2.80mm |
| Drive | T20 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

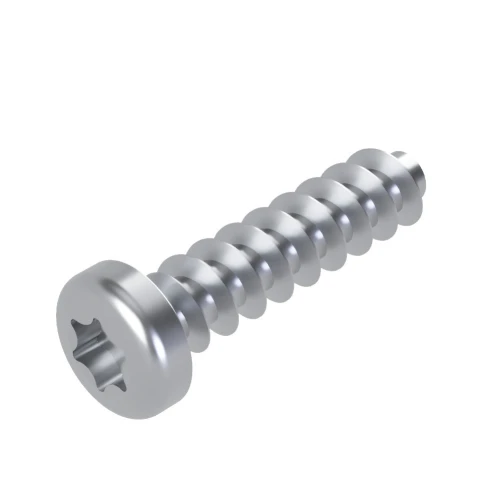

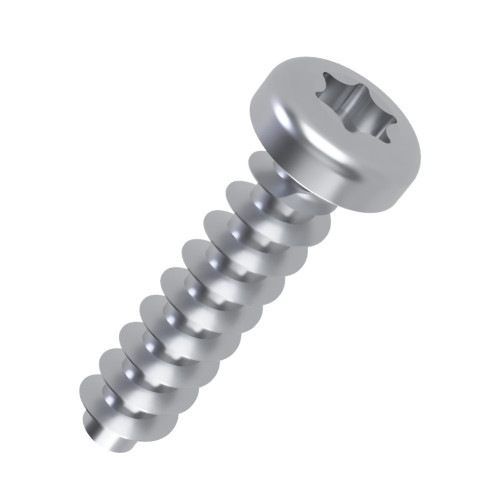

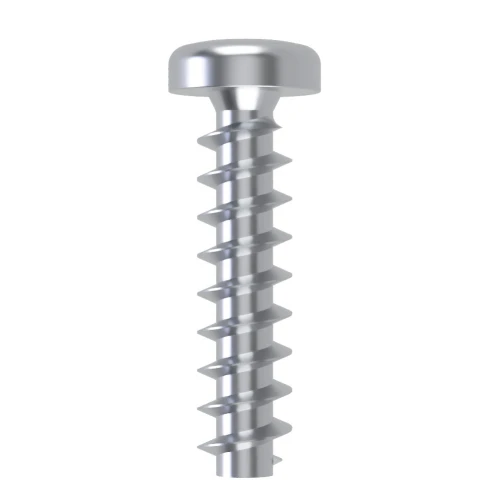

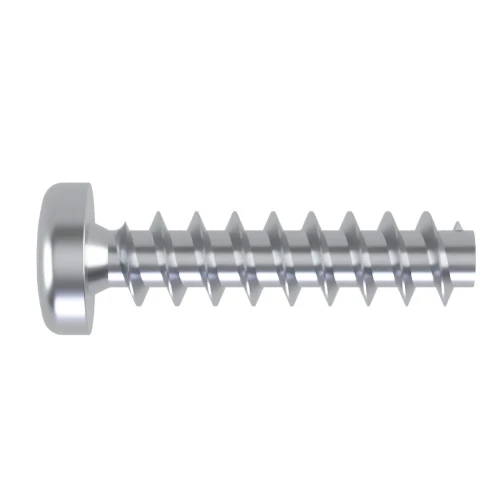

5mm x 12mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Providing a dedicated fastening option for reinforced plastic components, this 5mm x 12mm Torx Pan PT45 Screw combines a 45° trilobular thread with Bright Zinc Plated Steel. The design sits between a PT30 screw and a conventional self tapping screw which makes it well suited to harder plastics and fibre-reinforced materials.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics. The Torx drive offers high contact area for efficient torque transfer.
Common Applications
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Glass-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings used in suitable lighting equipment.

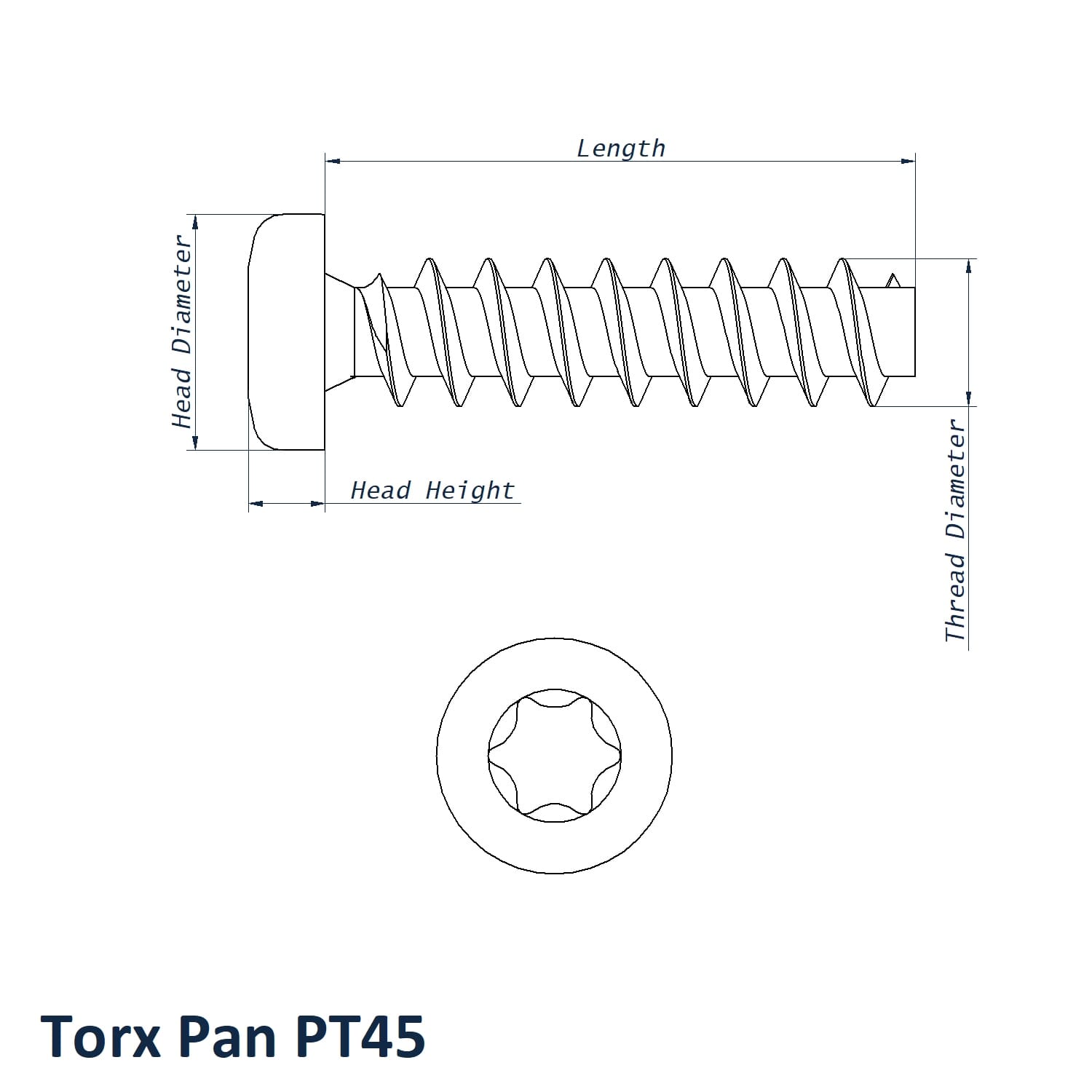

5mm x 12mm Torx Pan PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 12mm
- Head Diameter: 8.00mm
- Head Height: 2.80mm
- Drive: T20
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- 5mm thread size and 12mm thread length provide the primary fastening dimensions.
- T20 Torx drive provides positive engagement and efficient torque transfer.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
View the complete Torx Pan PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
