5mm x 16mm Torx Pan Screw for Hard Plastics (PT45) - T20 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.32 | £0.38 |
| 50 - 99 | £0.19 | £0.23 |
| 100 - 249 | £0.12 | £0.15 |
| 250 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.38 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 16mm |
| Material | Steel BZP |
| Head Diameter | 8.00mm |
| Head Height | 2.80mm |
| Drive | T20 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

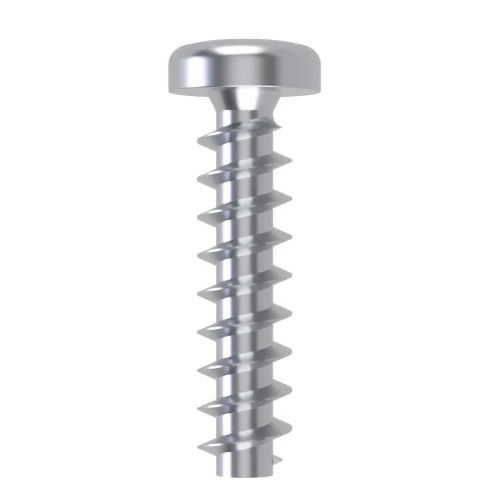

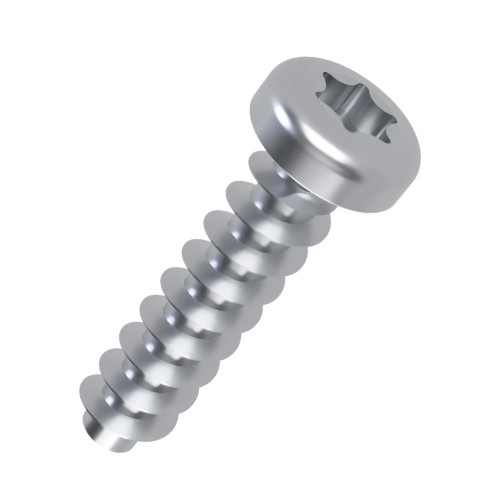

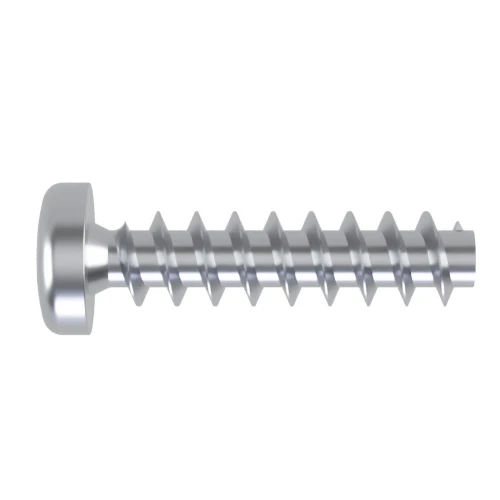

5mm x 16mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Built for engineering plastics used in manufactured assemblies, this 5mm x 16mm PT45 Screw uses a Pan head, T20 Torx drive and Bright Zinc Plated Steel construction. The specialised thread form is designed for harder plastics where a shorter thread profile and strong drive-to-strip performance are useful.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics. The Torx drive offers high contact area for efficient torque transfer.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.

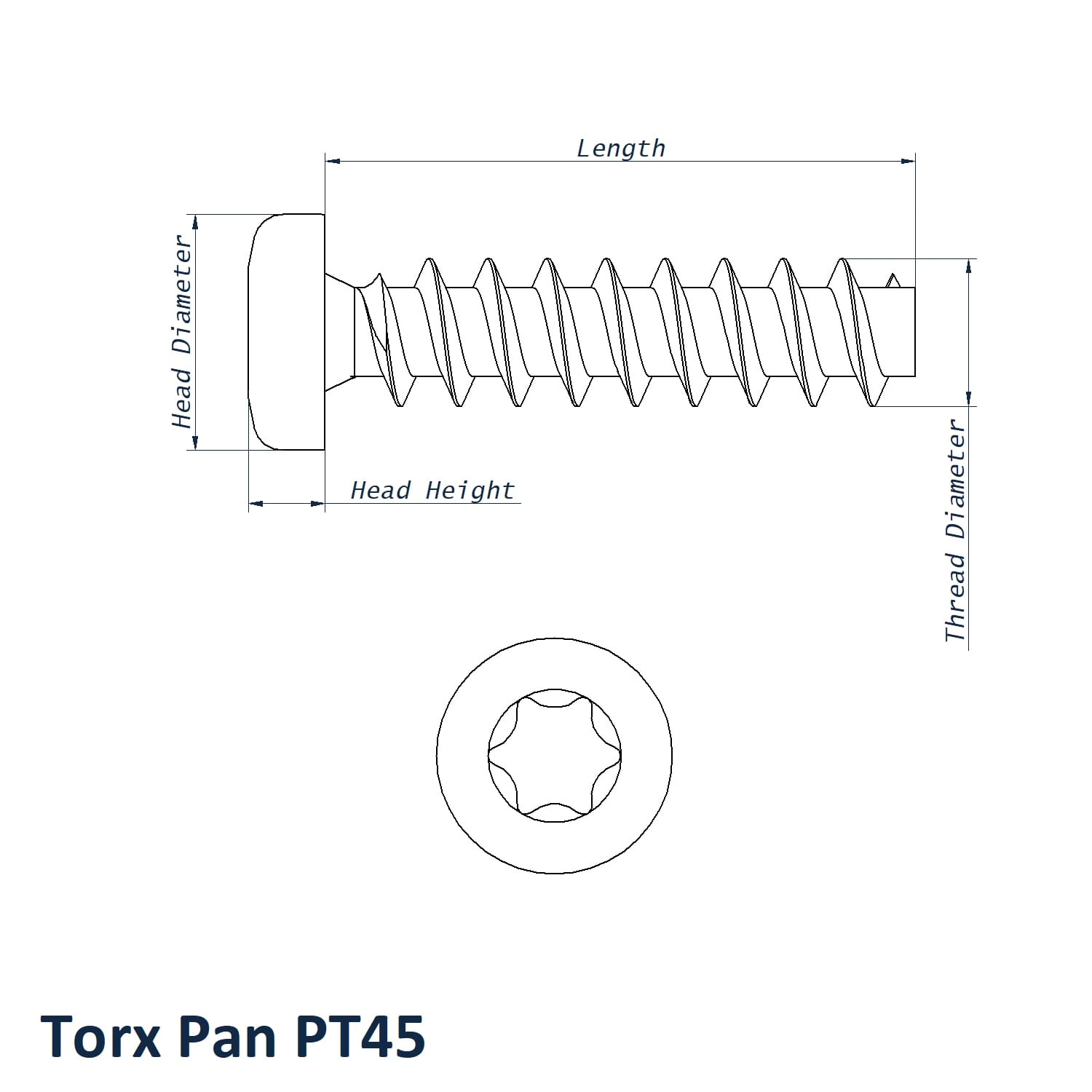

5mm x 16mm Torx Pan PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 16mm
- Head Diameter: 8.00mm
- Head Height: 2.80mm
- Drive: T20
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- 8.00mm head diameter and 2.80mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the hard-plastic component.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- 5mm thread size and 16mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Torx Pan PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
