Window Viewport Plugs - BLA417
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.65 | £0.78 |
| 2 - 249 | £0.65 | £0.78 |
| 250 - 499 | £0.53 | £0.63 |
| 500 - 999 | £0.42 | £0.51 |
| 1000 - 2499 | £0.37 | £0.44 |
| 2500 - 4999 | £0.32 | £0.38 |
| 5000 + | £0.22 | £0.26 |
Product Stock

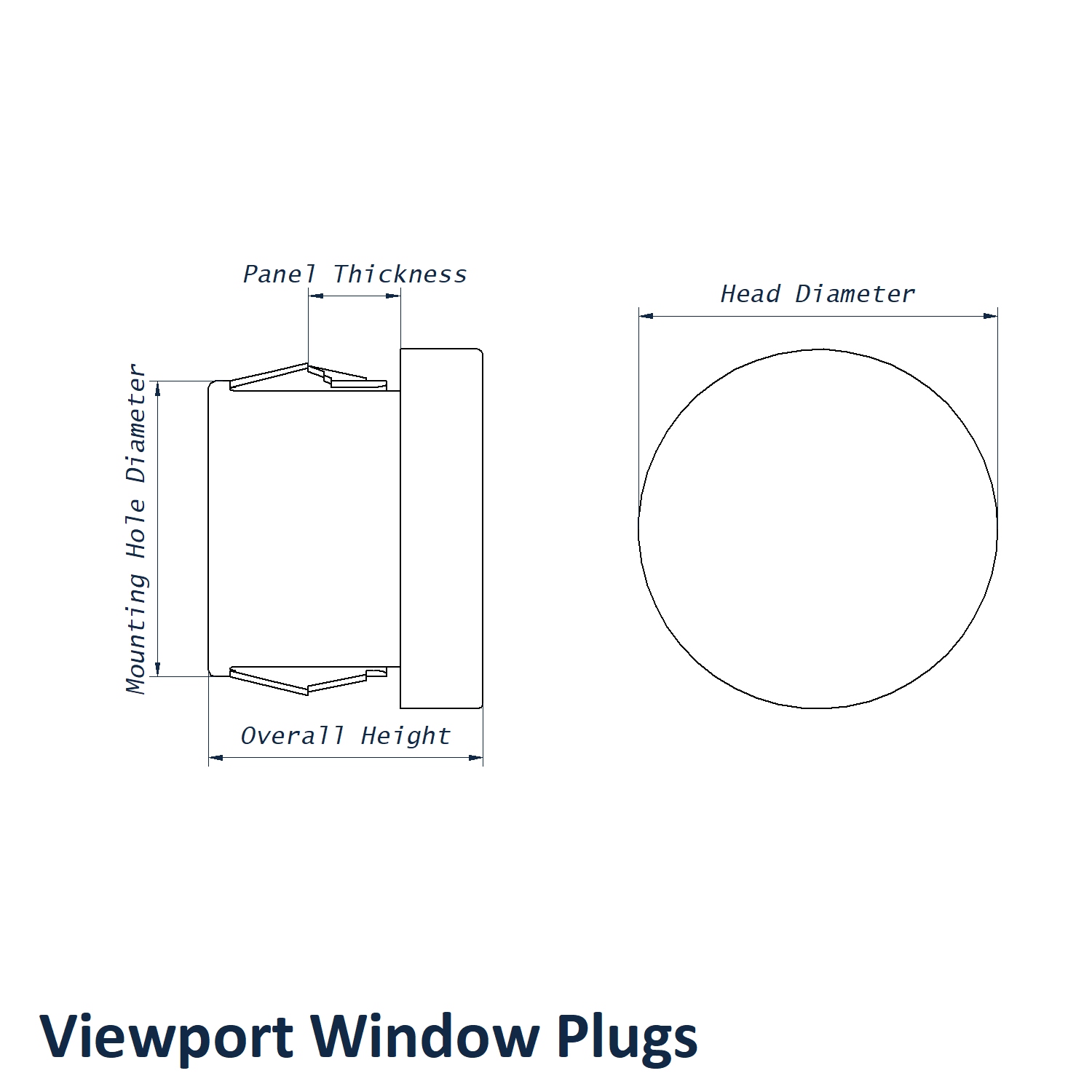

| Product Specifications | BLA417 |
|---|---|
| Mounting Hole Diameter | 19.3mm |
| Panel Thickness | 3.2mm |
| Material | Polycarbonate |
| Head Diameter | 21.8mm |
| Overall Height | 10.3mm |
| Colour | Clear |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

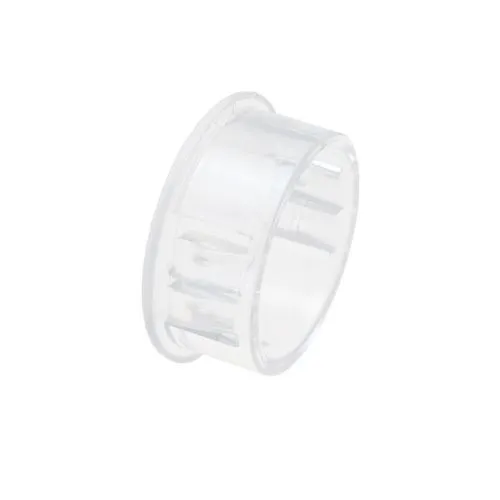

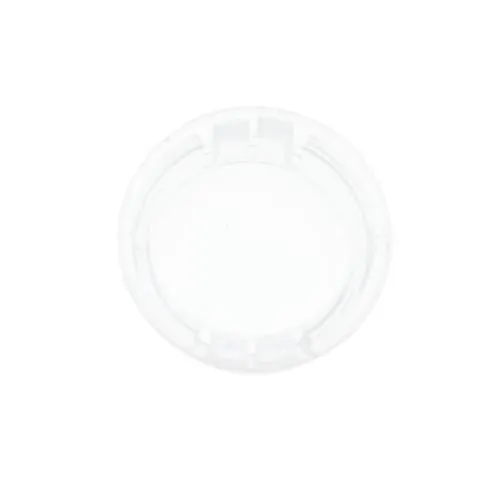

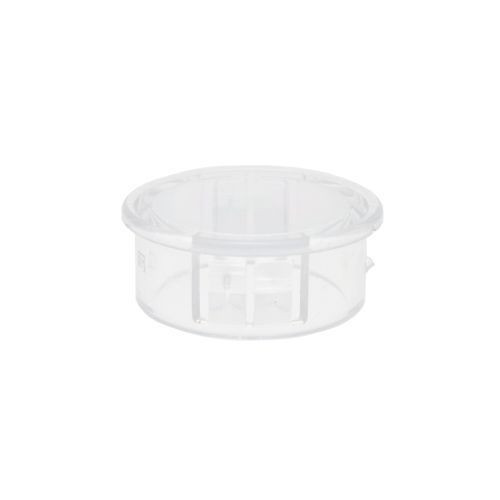

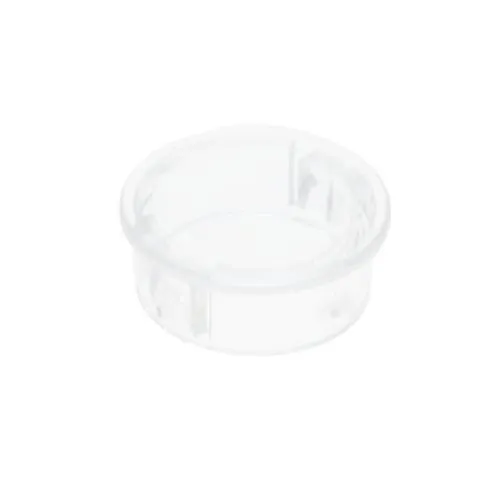

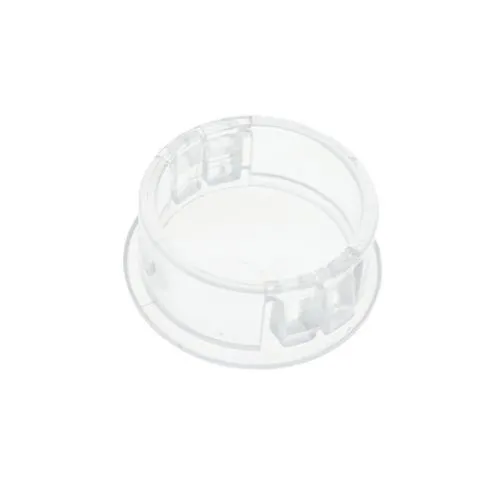

Viewport Window Plugs - 19.3mm Mounting Hole Diameter - 3.2mm Panel Thickness - 21.8mm Head Diameter - 10.3mm Height - Polycarbonate | Vital Parts - BLA417
Our Viewport Window Plugs provide a practical and visually accessible solution for applications requiring internal component monitoring. Made from high-quality transparent Polycarbonate, these plugs are available in both round and oval styles and include a UL94V-2 flammability rating. Designed to fit securely into a range of panel thicknesses, these plugs allow for safe and easy visual inspection of fuses, indicator lights, sensors, or other internal features without needing to open the housing or panel.
What are Viewport Window Plugs?
Viewport Window Plugs, also known as Window Plugs or Inspection Plugs, are plastic inserts used to seal holes in panels while still allowing for internal visibility. Manufactured from flame-resistant Polycarbonate, these plugs are engineered with built-in locking fingers that accommodate a variety of wall thicknesses. The finish allows for non-obstructive viewing of internal elements such as warning lights or fuse positions, making them ideal for control panels, equipment housings, and enclosures that require routine visual inspection. These plugs provide both a functional and protective role by sealing the opening while maintaining transparency.
Key Features:
- Manufactured from UL94V-2 rated Polycarbonate
- Temperature resistant from -40°C to 115°C
- Available in both round and oval configurations
- Transparent body allows for internal visibility
- Integrated locking fingers for a secure, tool-free installation
- Available in sizes from 4.7mm up to 50.8mm
- Suitable for a range of standard panel thicknesses
Key Applications and Industries
In the UK market, Viewport Window Plugs are commonly used in sectors where internal monitoring is important without compromising the enclosure seal:
- Electrical and control panels: For viewing fuse locations, indicator lights, or circuit status
- Industrial machinery: Allowing inspection of internal components or fluid levels
- HVAC systems: Monitoring airflow indicators or filter status
- Medical and laboratory equipment: Viewing operational indicators without disrupting the enclosure
- Enclosure manufacturing: Providing access to visual inspection while maintaining protection
Technical Specifications
- Mounting Hole diameter : 19.3mm
- Panel Thickness : 3.2mm
- Head Diameter : 21.8mm
- Overall Height : 10.3mm
- Material: Transparent Polycarbonate (UL94V-2 rated)
- Temperature resistance: -40°C to 115°C
- Fitment: Locking fingers to accommodate varying panel thicknesses
- Installation: Snap-fit, no tools required
Benefits:
- Provides visibility of internal components without opening the enclosure
- Simple installation and secure fit using locking fingers
- Helps improve maintenance efficiency through passive inspection
- Protects internal elements from dust, moisture, and tampering
- Available in a range of sizes and shapes to suit different needs
Why Buy from Vital Parts?
As a trusted UK supplier of high-quality fasteners and industrial components, Vital Parts offers a customer-first experience with benefits that include:
- Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
- Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
- Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.
Click here to view our full Guide to Plugs and Stoppers
Viewport Window Plugs are the perfect solution for safe, effective visual monitoring of internal systems while maintaining the integrity of your enclosure. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
