Short Viewport Window Plugs - BLA438
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.62 | £0.75 |
| 250 - 499 | £0.53 | £0.64 |
| 500 - 999 | £0.43 | £0.52 |
| 1000 - 2499 | £0.38 | £0.45 |
| 2500 - 4999 | £0.33 | £0.39 |
| 5000 + | £0.22 | £0.26 |

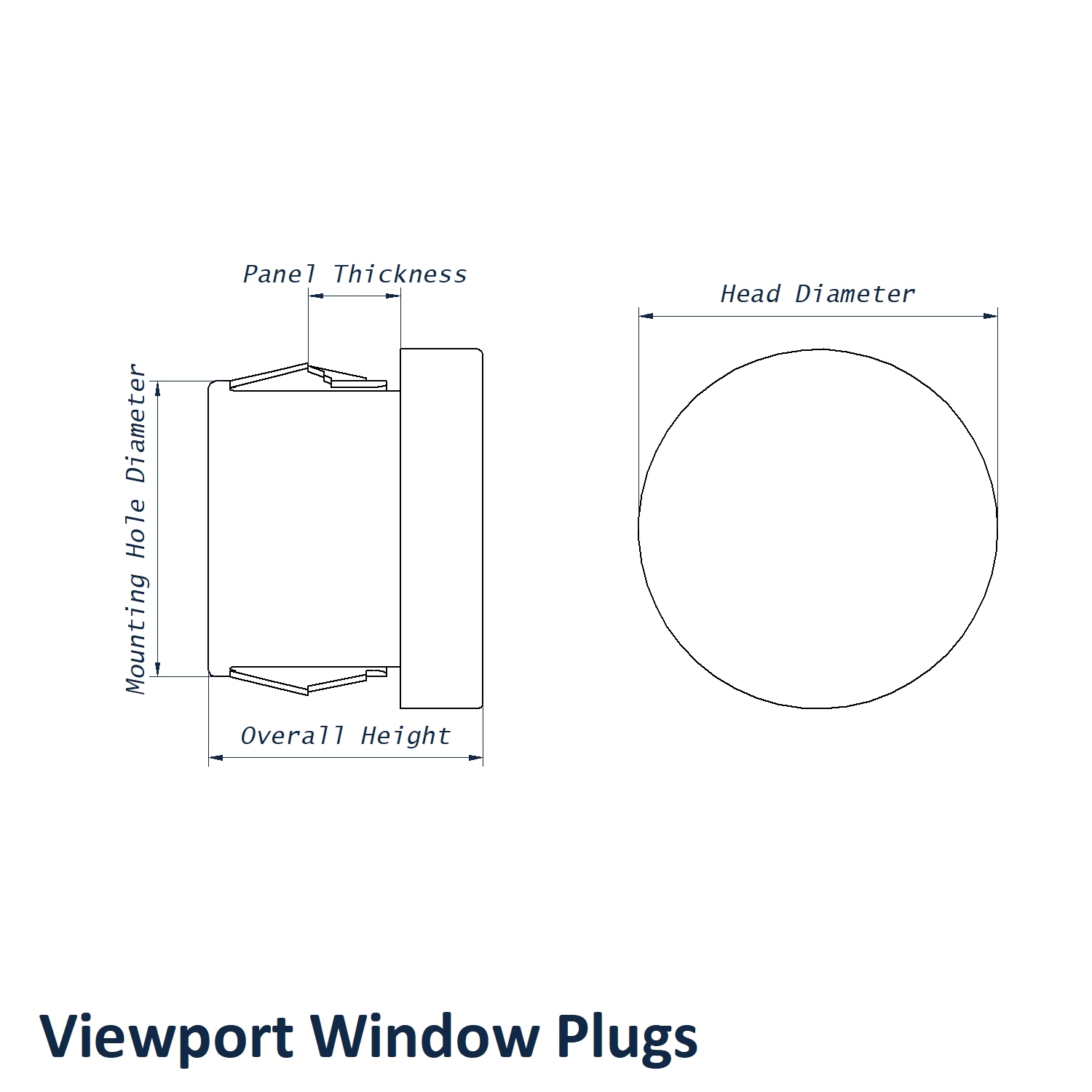

Product Specification
| Mounting Hole Diameter | 22.5mm |
| Panel Thickness | 1.6mm |
| Material | Polycarbonate |
| Head Diameter | 24.2mm |
| Overall Height | 6.4mm |
| Colour | Clear |
Frequently Bought Together
Total Price: £0.00
Short Viewport Window Plugs - 22.5mm Mounting Hole Diameter 1.6mm Panel Thickness - 24.2mm Head Diameter - 6.4mm Overall Height - Polycarbonate | Vital Parts - BLA438
Our Shorty Viewport Window Plugs are a compact alternative to our standard Viewport Plugs, specifically designed for applications with thinner panel thicknesses. Manufactured from high-quality transparent Polycarbonate, these plugs are rated to UL94V-2 flammability standards and offer temperature resistance from -40°C to 115°C. These plugs are ideal for creating an internal viewing window in panels up to 1.6mm thick, allowing for inspection of internal components without the need to remove or disassemble enclosures.
What are Shorty Viewport Window Plugs?
Shorty Viewport Window Plugs are clear snap-fit plugs used to provide visibility into enclosed systems, offering a minimal profile suited for thin panels. Designed to accommodate a single locking position, they ensure a secure and flush fit in material thicknesses up to 1.6mm. Made from the same flame-resistant Polycarbonate as our standard Viewport range, these plugs provide high clarity and durability. Whether for viewing indicator lights, fuse positions, or other key components, Shorty Viewport Plugs provide an efficient solution for low-profile monitoring windows.
Key Features:
- Manufactured from UL94V-2 rated clear Polycarbonate
- Temperature resistant from -40°C to 115°C
- Single locking position for secure fit in thin panels (up to 1.6mm)
- Low-profile design with minimal intrusion into the panel
- Provides clear internal visibility for inspection purposes
- Available in mounting hole diameters from 13mm to 25.7mm
Key Applications and Industries
Shorty Viewport Window Plugs are commonly used across UK industries where space is limited and internal monitoring is essential:
- Electrical panels: Viewing fuse locations, indicators, or wiring without opening the panel
- Medical and lab equipment: Monitoring internal sensors or status indicators
- Industrial control systems: Adding a visual inspection point in thin-wall enclosures
- Telecommunications: Allowing inspection in confined cabinet or panel areas
- Custom enclosures and OEM manufacturing: For adding functionality and clarity in compact devices
Technical Specifications
- Mounting Hole diameter : 22.5mm
- Panel Thickness : 1.6mm
- Head Diameter : 24.2mm
- Overall Height : 6.4mm
- Material: Transparent Polycarbonate (UL94V-2 flame rated)
- Temperature resistance: -40°C to 115°C
- Panel thickness compatibility: Up to 1.6mm
- Locking mechanism: Single-position snap-fit
- Installation: Tool-free push fit
Benefits:
- Perfect for use in compact applications with limited panel thickness
- Clear view of internal components aids maintenance and monitoring
- Quick and easy installation without tools
- Flush finish maintains a clean and professional appearance
- Reliable and durable material suited to industrial environments
Why Buy from Vital Parts?
As a trusted UK supplier of high-quality fasteners and industrial components, Vital Parts offers a customer-first experience with benefits that include:
- Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
- Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
- Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.
Click here to view our full Guide to Plugs & Stoppers
Shorty Viewport Window Plugs offer a compact and effective solution for monitoring enclosed systems through thin panels. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
