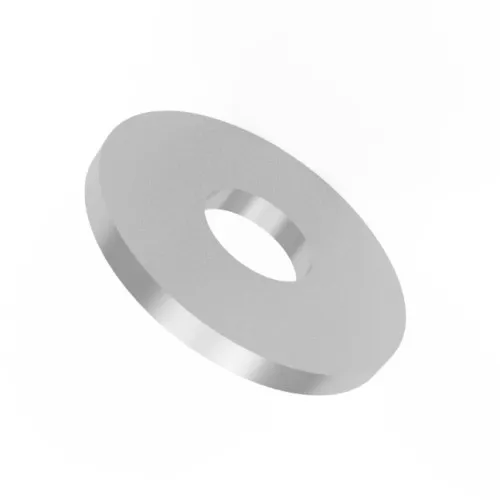

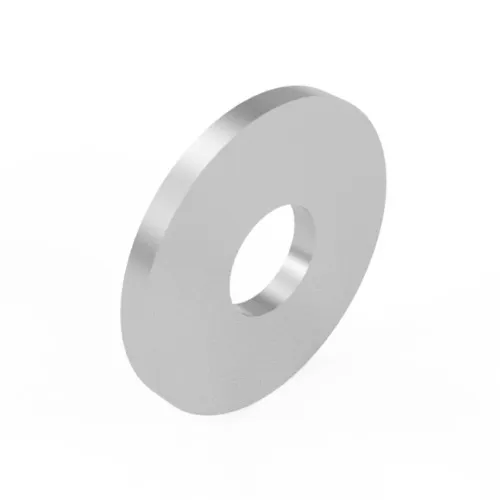

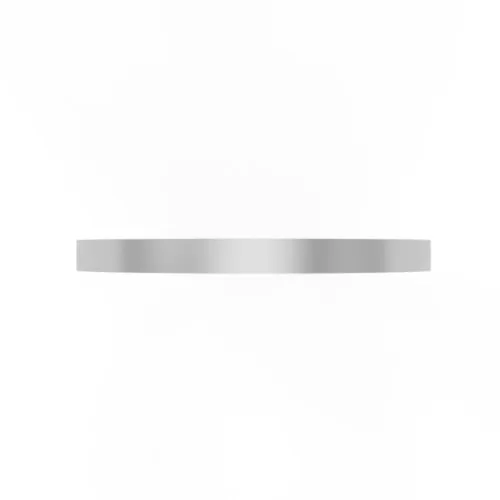

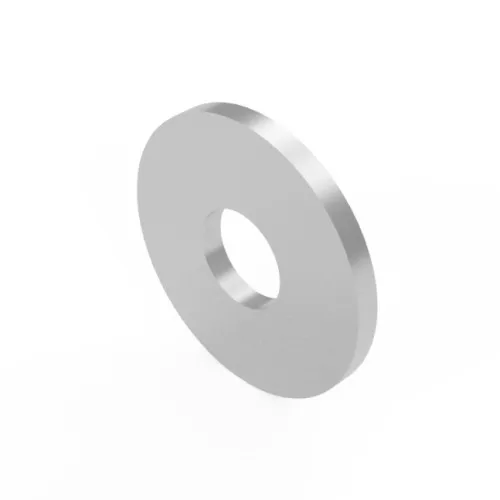

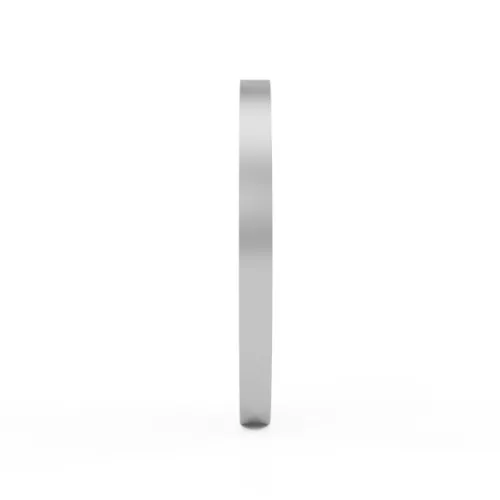

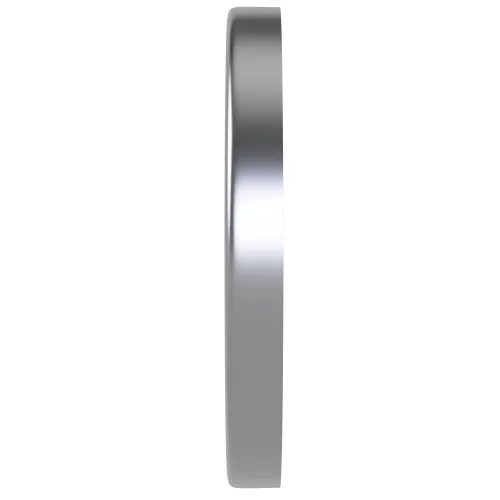

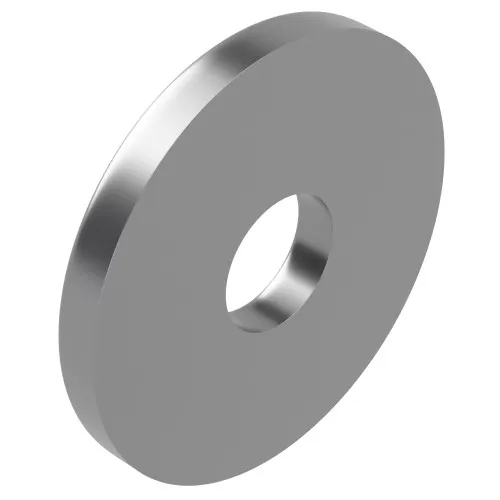

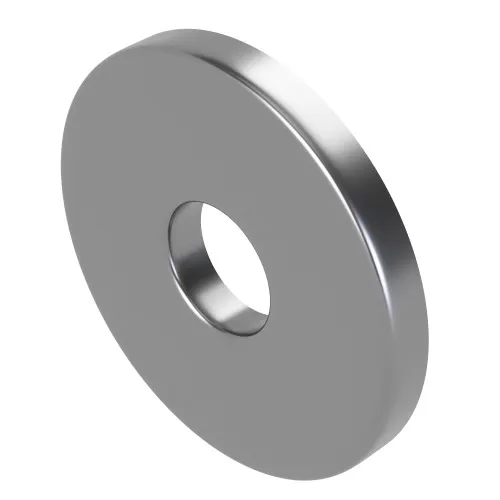

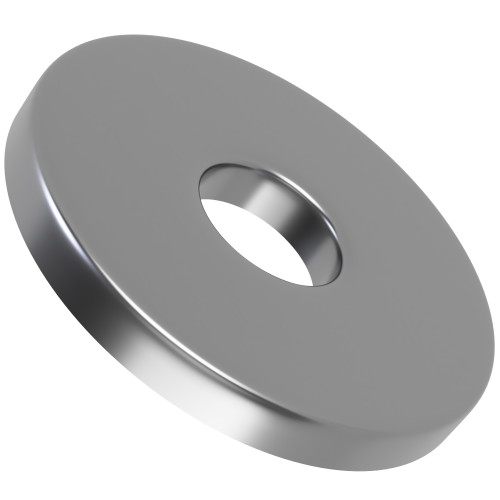

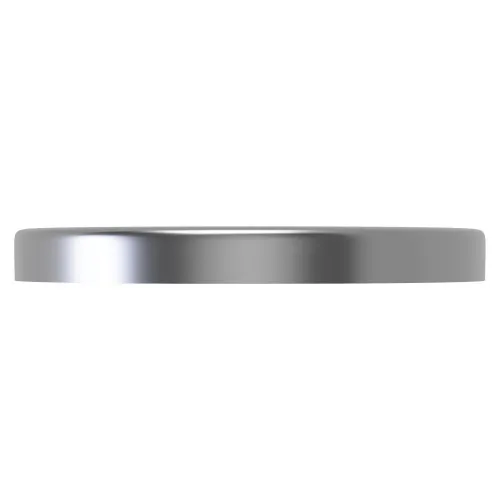

M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel

Product code: W440R-M8-A2
View All Specifications
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M8 (9mm) x 28mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.10 £0.12
100 - 499 £0.09 £0.11
500 - 999 £0.07 £0.09
1000 - 9999 £0.07 £0.08
10000 + £0.06 £0.07

£0.12 / each


Up to 1,295 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 4,695 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 1,008,785 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
1,008,785 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Size M8
Internal Diameter 9.0mm
Outside Diameter 28.0mm
Thickness 3.00mm
Standard DIN 440R
Material A2 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 Wood Construction Washer - 9mm ID x 28mm OD | DIN 440R | A2 Stainless Steel

For decking, pergolas and outdoor timber projects, this large diameter timber washer supports stronger timber connections by spreading the applied load over a wider area. Its 28.0mm outside diameter provides substantial coverage around the M8 fastening point while the 3.00mm thickness gives the washer a robust section. The A2 Stainless Steel material is well suited to general construction and outdoor timber projects where good corrosion resistance is required.

What Are Wood Construction Washers?

Timber Construction Washers provide a larger bearing surface than standard flat washers. They are commonly positioned beneath bolt heads or nuts in timber framing so the fixing force is distributed more evenly across beams, posts, joists and other wooden components.

Common Applications

  • Timber Frame Construction: Spreads bolt or coach screw load across beams, posts and joists to support stronger structural joints.
  • Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
  • Retaining Structures: Helps spread clamping force in heavy timber walls, sleepers and structural support projects.
  • Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.

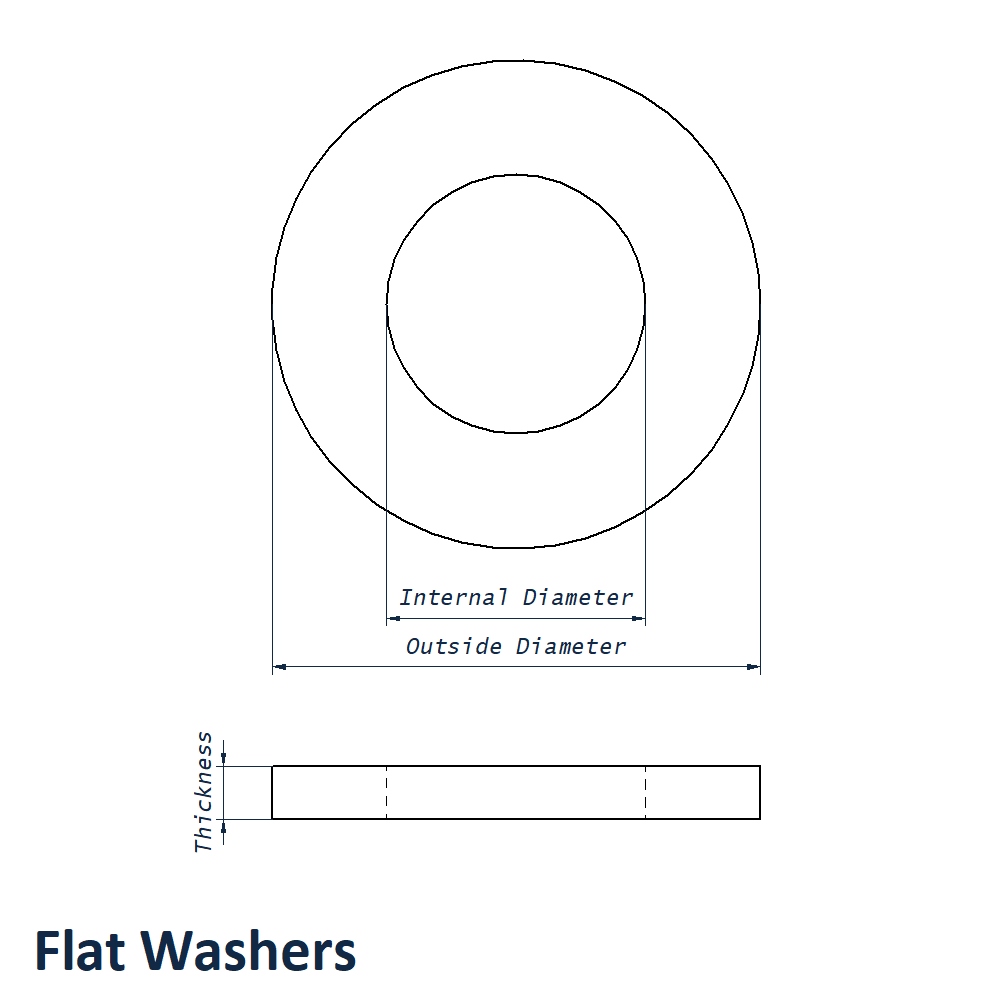

M8 DIN 440R Wood Construction Washer Dimensions

  • Size: M8
  • Internal Diameter: 9.0mm
  • Outside Diameter: 28.0mm
  • Thickness: 3.00mm
  • Material: A2 Stainless Steel
  • Standard: DIN 440R

Key Benefits

  • 28.0mm outside diameter creates a large bearing area to spread load across the timber.
  • A2 Stainless Steel construction provides corrosion resistance for suitable timber construction applications.
  • Wide washer profile helps reduce the risk of fastener pull-through under clamping load.
  • Round construction-washer format supports stable load distribution across timber connections.

Browse the complete Timber Construction Washers range for alternative internal diameters, outside diameters and stainless steel grades. We can help you choose the right option on 01233 713581.
