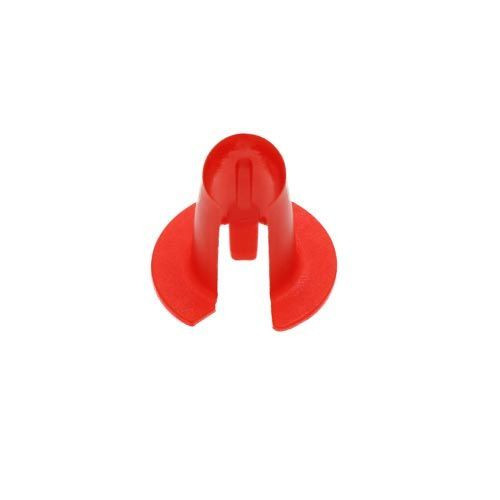

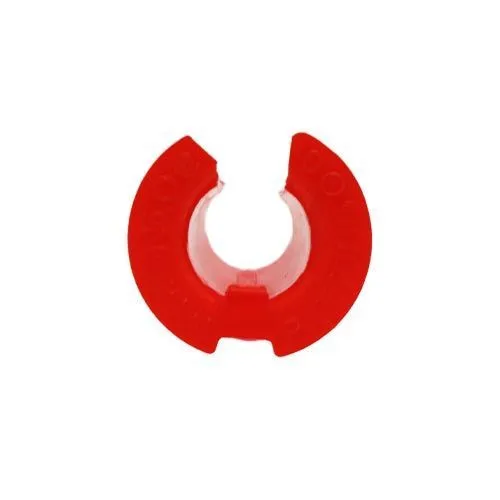

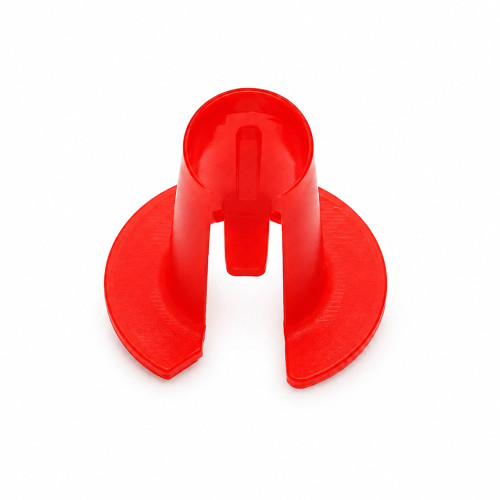

11.2mm Anti Short Bushing (Armoured Cable) - 17.8mm Head | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.10 | £0.12 |
| 250 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 - 9999 | £0.06 | £0.07 |
| 10000 + | £0.05 | £0.06 |
£0.12 / each
.png)
Product Specification
| Internal Diameter | 11.2mm |
| Head Diameter | 17.8mm |
| Overall Height | 16.0mm |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
11.2mm BX Cable Bushing | 17.8mm Head Diameter | Red Anti-Short Protection
This 11.2mm BX cable bushing is made for protecting wiring where armoured cable has been cut back for termination. Its red body, 17.8mm head diameter and 16mm overall height provide a practical anti-short bushing for electrical installers working with metal-clad cable and FMC cable.
As a red anti-short cable insert, the bushing improves visibility once installed and gives inspectors a clear indication that the armour end has been protected. The material is suitable for low-temperature environments and is designed for reliable use in commercial and industrial electrical work.
What Are Armour Cable Bushings?
BX cable bushings are small protective inserts used where armoured or flexible metal conduit cable has been stripped for connection. They act as an insulating sleeve, helping prevent the metal sheath from cutting into live cable cores during installation, movement or servicing.
Common Applications
- Armoured cable terminations in offices, retail units and plant rooms
- FMC cable protection where metal edges could damage internal wiring
- Electrical enclosure wiring for machinery and service equipment
- Retrofit installation work where existing cable ends need safer finishing

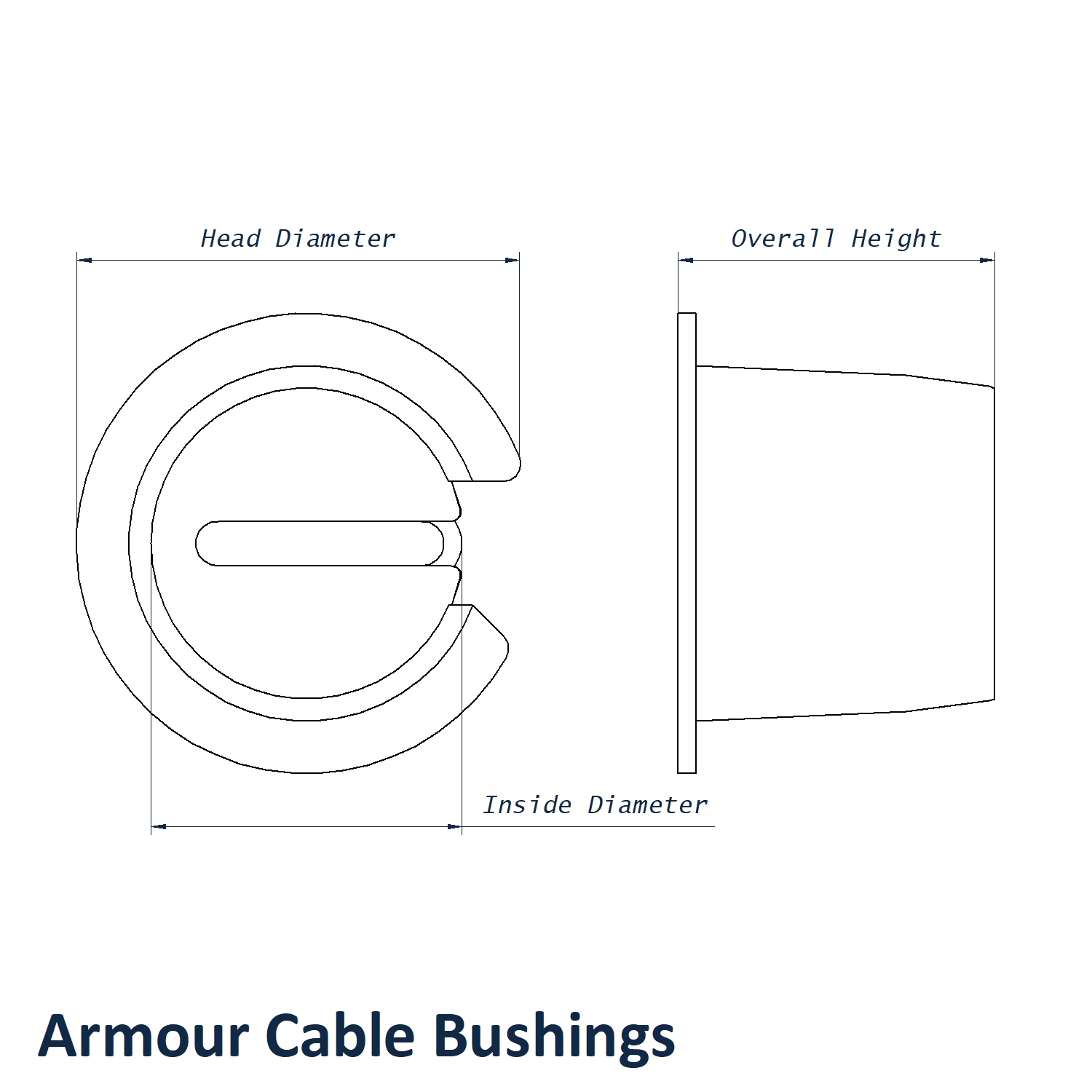

11.2mm Red Armour Cable Bushing Dimensions
- Internal Diameter: 11.2mm
- Head Diameter: 17.8mm
- Overall Height: 16mm
- Colour: Red
- Material: High Dielectric Polyethylene
BX Cable Bushing Use
Use this BX cable bushing when a protective insert is needed between the stripped metal sheath and the conductors. The red finish makes the installed part easier to identify during electrical inspection and maintenance work.
View our full Armour Cable Bushings range.
Product Support and Trade Orders
For help checking armour cable bushing size, BX cable compatibility or larger electrical installation quantities, speak with the Vital Parts team on 01233 713581. We can help with sizing guidance, sample checks where available and repeat supply for maintenance, commercial and industrial projects.
