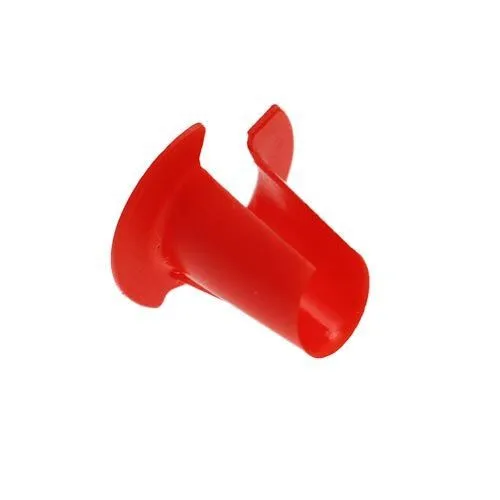

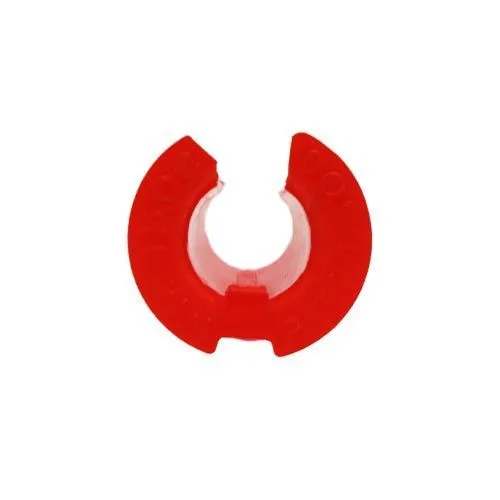

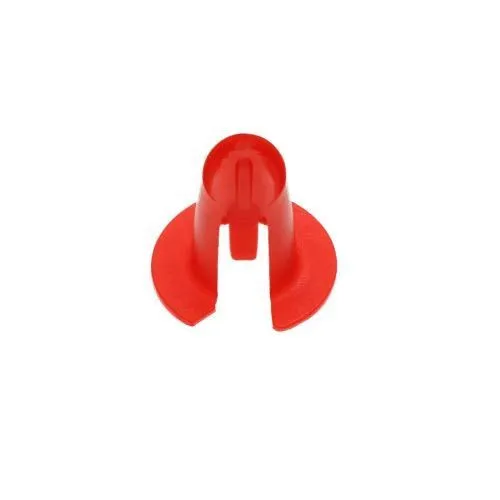

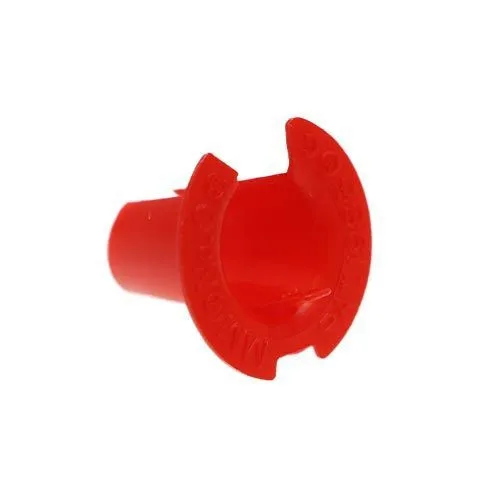

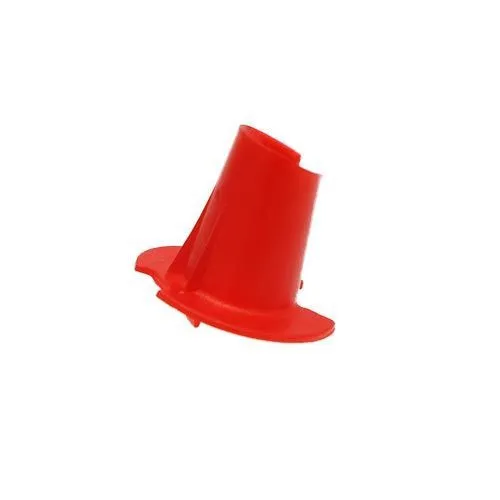

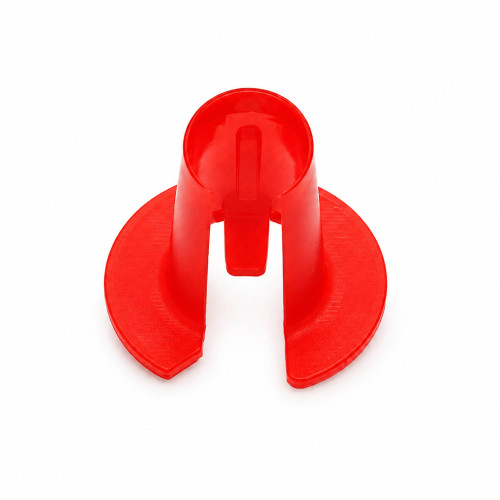

14mm Anti Short Bushing (Armoured Cable) - 21.6mm Head | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.12 | £0.15 |
| 250 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 - 9999 | £0.07 | £0.09 |
| 10000 + | £0.06 | £0.07 |
£0.15 / each
.png)

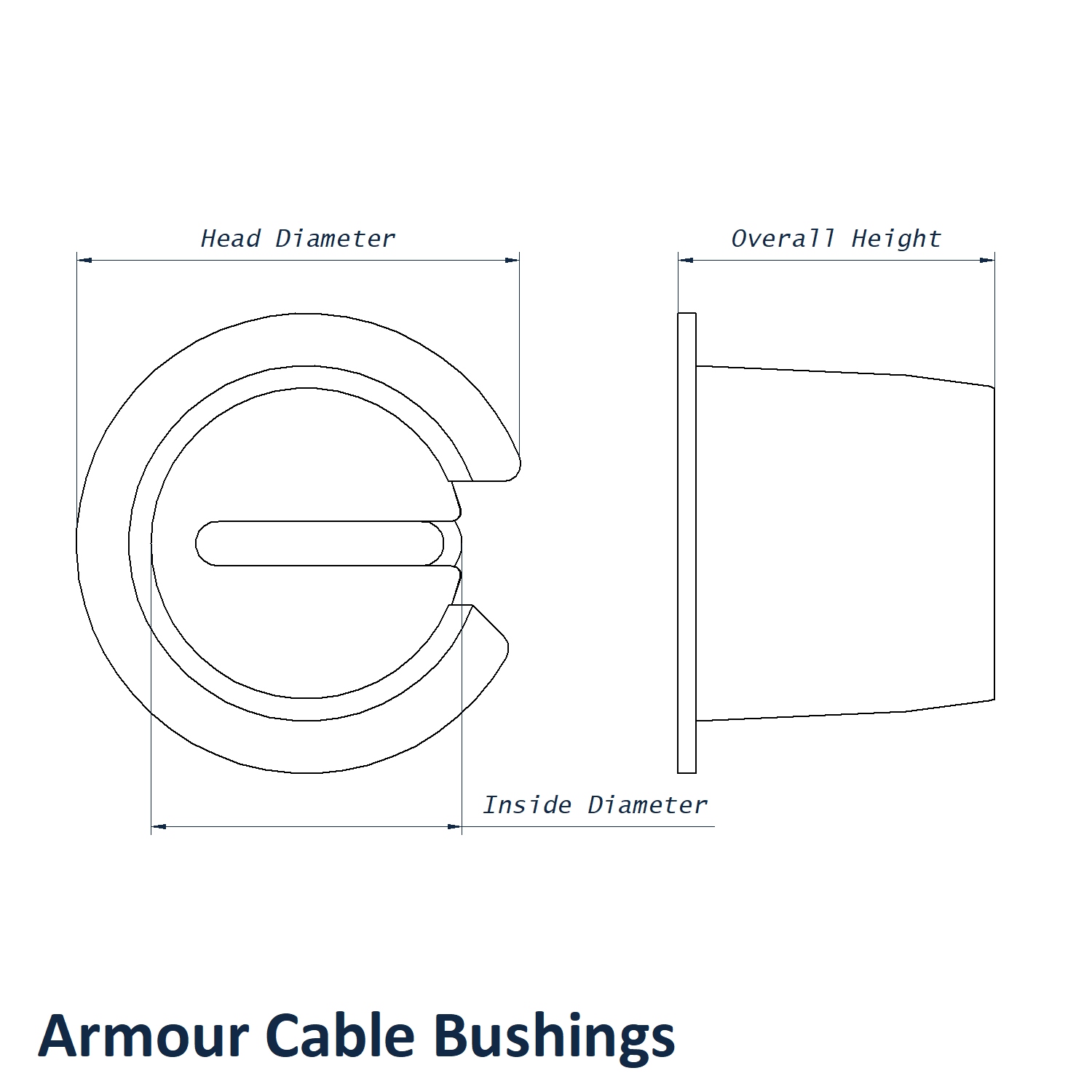

Product Specification
| Internal Diameter | 14.0mm |
| Head Diameter | 21.6mm |
| Overall Height | 15.5mm |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
14mm Anti-Short Armour Cable Bushing | 15.5mm Overall Height | Red
Manufactured for cable entry protection, this 14mm red anti-short bushing helps separate conductors from sharp metal armour edges. The 21.6mm head diameter gives a clear stop point at the cable end while the 15.5mm height supports a secure push-fit installation.
The chamfered entry helps guide the bushing into position while the insulating body protects cable cores from contact with sharp metal. This makes it useful for installers who need fast repeat fitting on junction boxes, control cabinets and plant-room terminations.
What Are Armour Cable Bushings?
An anti-short bushing is used between the cable armour and the internal wires so the stripped metal edge does not damage conductor insulation. This makes it a key safety part for metal-clad electrical assemblies, particularly where cables are routed into enclosures, panels or junction boxes.
Common Applications
- Metal-clad cable protection in manufacturing and workshop environments
- Junction box entries where cable armour has been cut back
- Panel wiring tasks that require clear red anti-short identification
- Maintenance repairs on cable runs exposed to vibration or movement
14mm Red Armour Cable Bushing Dimensions
- Internal Diameter: 14mm
- Head Diameter: 21.6mm
- Overall Height: 15.5mm
- Colour: Red
- Material: High Dielectric Polyethylene
Anti-Short Bushing Detail
This red anti-short bushing supports safer metal-clad cable work by helping prevent the armour edge from rubbing through conductor insulation. It is suited to repeat electrical installation tasks where quick push-fit protection is required.
View our full Armour Cable Bushings range.
Product Support and Trade Orders
For help checking armour cable bushing size, BX cable compatibility or larger electrical installation quantities, speak with the Vital Parts team on 01233 713581. We can help with sizing guidance, sample checks where available and repeat supply for maintenance, commercial and industrial projects.
