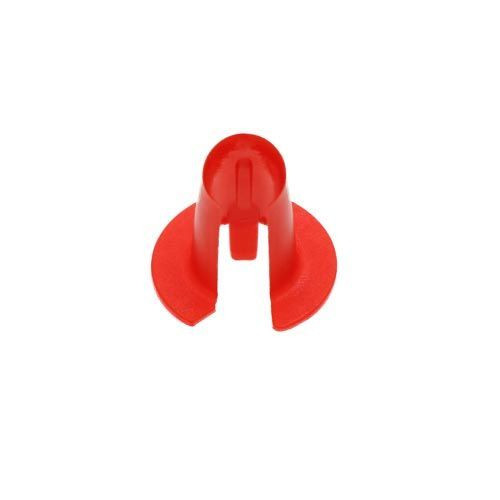

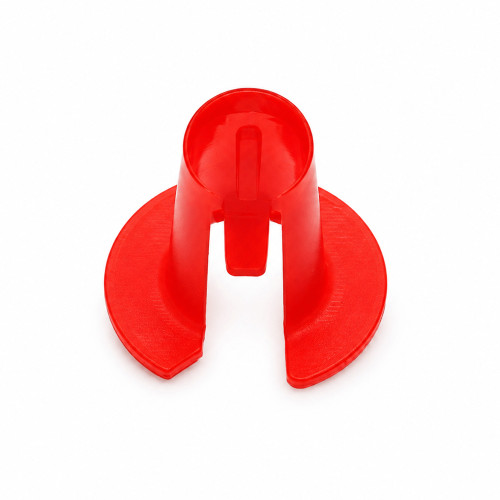

14.7mm Anti Short Bushing (Armoured Cable) - 22.9mm Head | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.12 | £0.15 |
| 250 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 - 9999 | £0.07 | £0.09 |
| 10000 + | £0.06 | £0.07 |
£0.15 / each
.png)
Product Specification
| Internal Diameter | 14.7mm |
| Head Diameter | 22.9mm |
| Overall Height | 17.3mm |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
14.7mm FMC Cable Bushing | 22.9mm Head Diameter | Red Cable Protection
Frequently specified for armoured cable preparation, this 14.7mm red cable bushing provides an insulating sleeve at the point where the armour is trimmed. With a 22.9mm head diameter and 17.3mm overall height, it is suited to neat terminations that need both conductor protection and clear visual identification.
Its compact red profile is easy to spot during electrical checks, helping reduce missed protection points on armoured wiring systems. The bushing supports safer terminations by forming a simple barrier between conductors and the stripped cable armour.
What Are Armour Cable Bushings?
Armoured cable bushings provide a simple push-fit way to finish cut metal cable ends before termination. By covering the rough edge, they help protect the cable cores and make the installation easier to inspect on site.
Common Applications
- Electrical installations in HVAC equipment, pumps and mechanical rooms
- Armoured cable preparation for distribution boards and cabinets
- Cable protection in refurbishment projects and replacement work
- Public sector facilities where termination safety needs to be easy to check

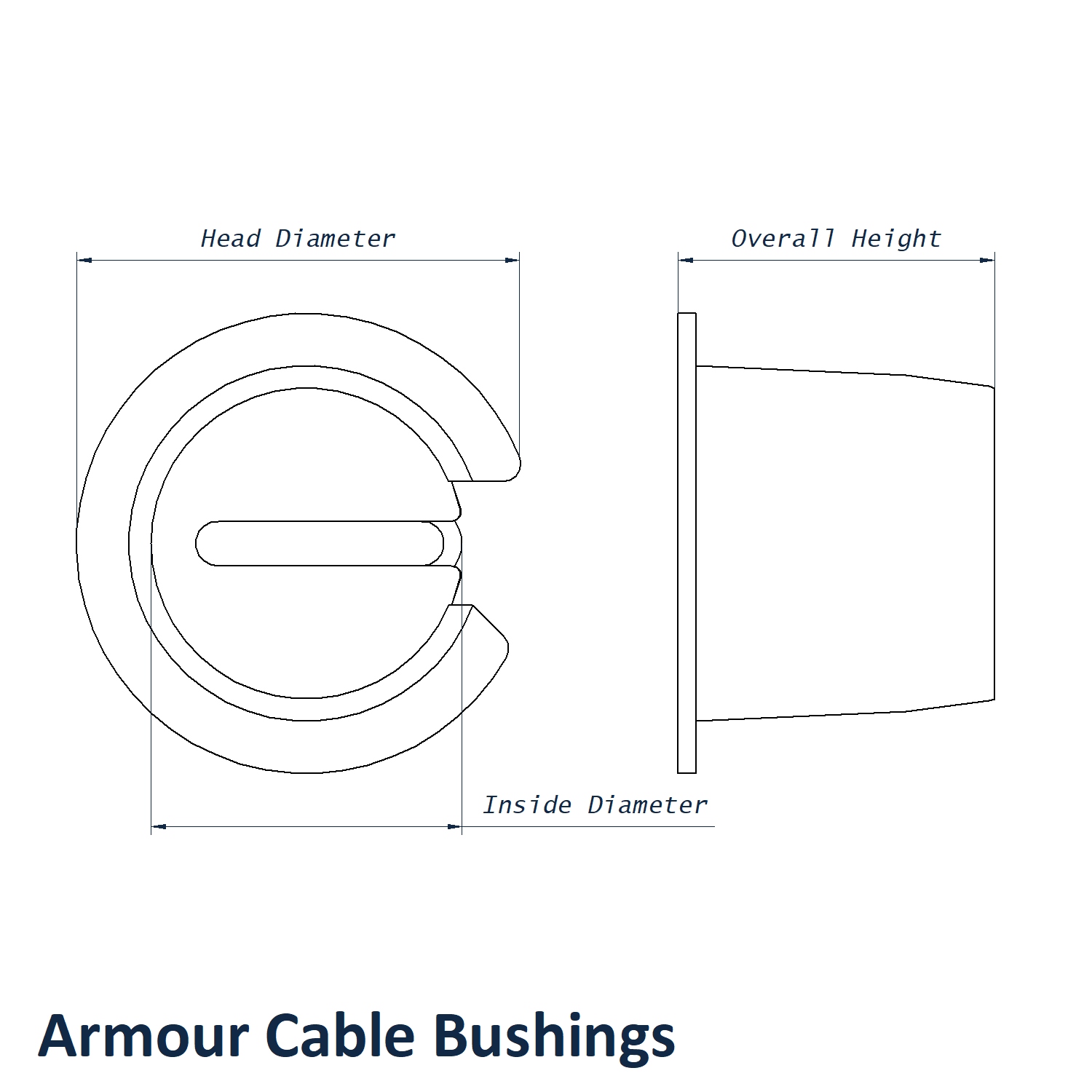

14.7mm Red Armour Cable Bushing Dimensions
- Internal Diameter: 14.7mm
- Head Diameter: 22.9mm
- Overall Height: 17.3mm
- Colour: Red
- Material: High Dielectric Polyethylene
FMC Cable Termination Support
For flexible metal conduit work, this FMC cable bushing helps create a cleaner termination point and reduces the risk of conductor damage at the entry. It is useful for panel wiring, plant equipment and service installations.
View our full Armour Cable Bushings range.
Product Support and Trade Orders
For help checking armour cable bushing size, BX cable compatibility or larger electrical installation quantities, speak with the Vital Parts team on 01233 713581. We can help with sizing guidance, sample checks where available and repeat supply for maintenance, commercial and industrial projects.
