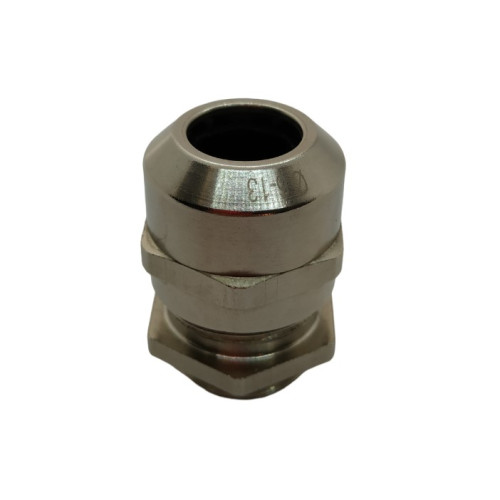

M12 x 1.5mm EMC Cable Gland (5 mm Thread Length) - 3-7mm Cable | Earthing Cone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £8.85 | £10.62 |
| 25 - 49 | £6.58 | £7.89 |
| 50 - 99 | £6.58 | £7.89 |
| 100 + | £5.46 | £6.55 |
£10.62 / each
.png)

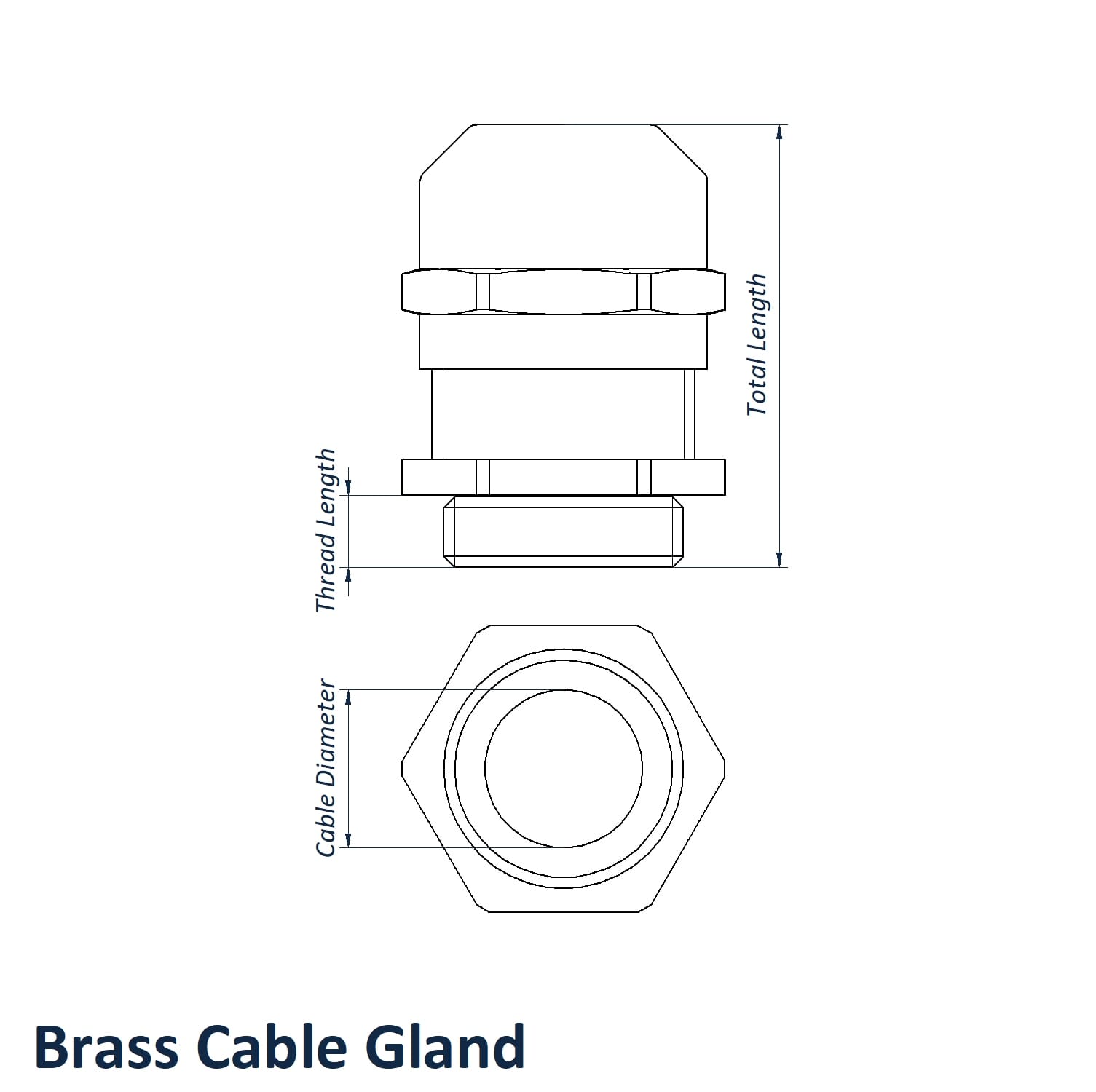

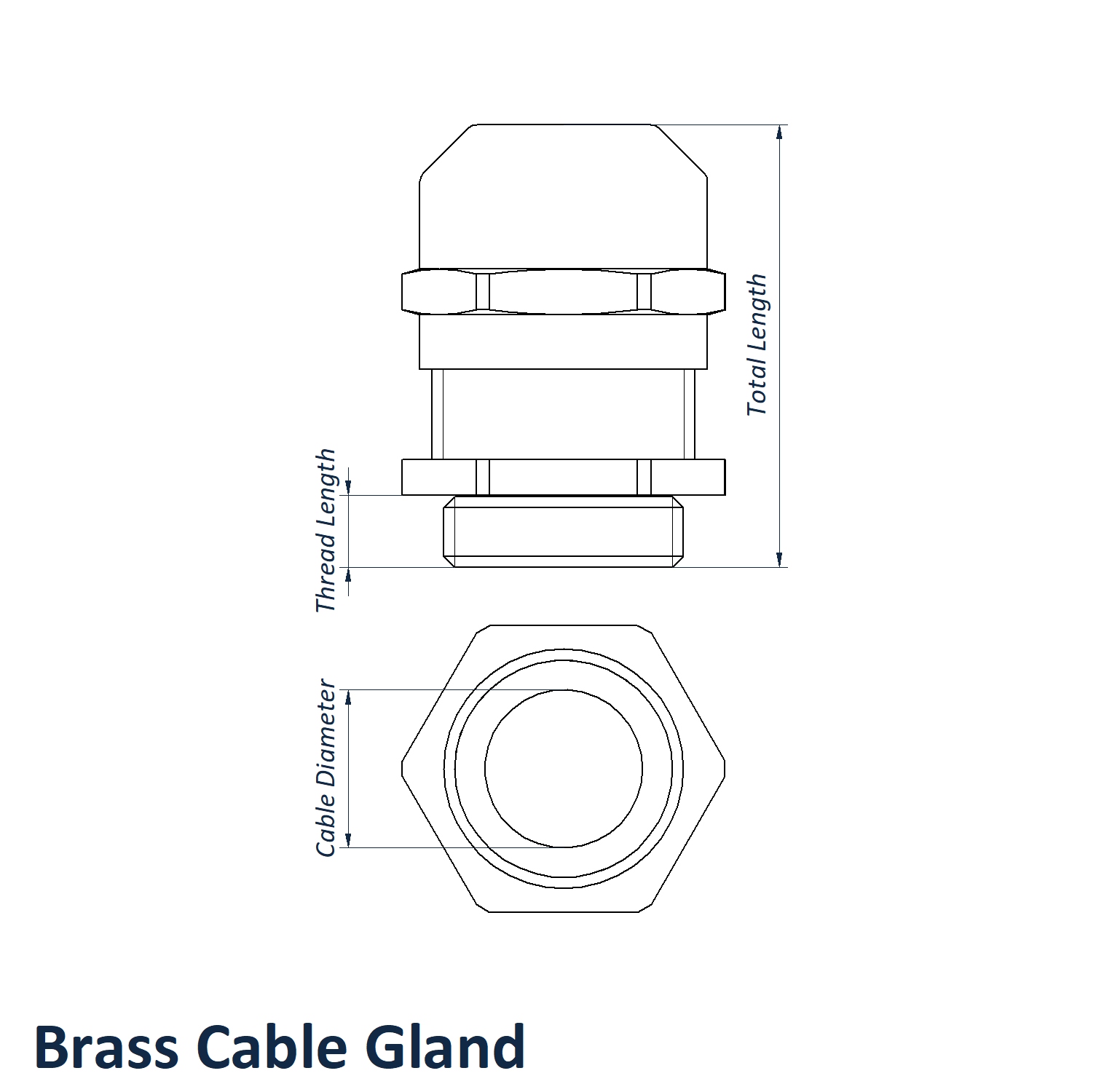

Product Specification
| Thread | M12 x 1.5mm |
| Cable Diameter | 3.0-7.0mm |
| Thread Length | 5 mm |
| Total Length | 23-30mm |
| Style | Earthing Cone |
| Colour | Silver |
| Material | Nickel Plated Brass |
Frequently Bought Together
Total Price: £0.00
This M12 x 1.5 Nickel Plated Brass EMC gland is for isolating items from electromagnetic interference or RFI. They are designed to work with SY and shielded cables.
This gland comes with in a Earthing Cone style.
Here are some of the key features of our brass EMC cable glands.
• Suitable for a temperature range of -40 °C to 100 °C
• Approved to the following standards:
o VDE
o UL recognised
• Provides seal to IP69 / IP68 (5 bar 30 min)

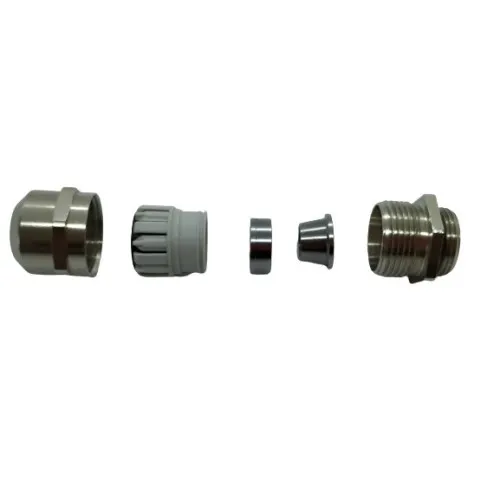

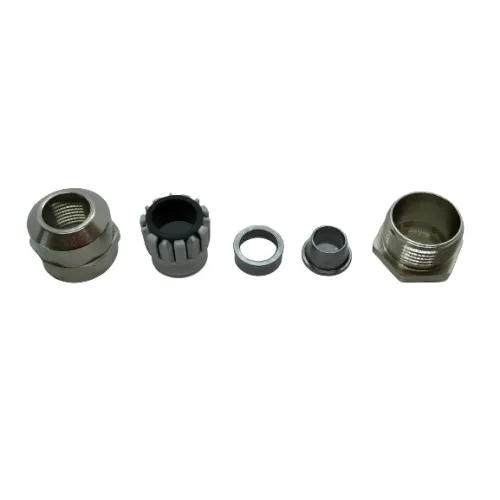

• Made from Nickel plated brass, a nylon clamping clamp and EDPM rubber seals.
o Earthing cones – Nickel Plated Brass
o Contact Springs – Stainless Steel
The matching locknut should you require it is CBG270
