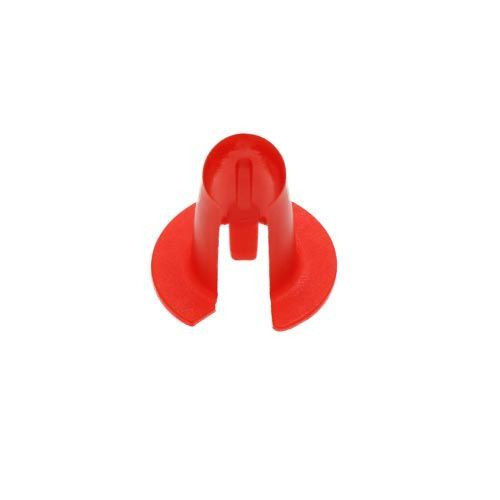

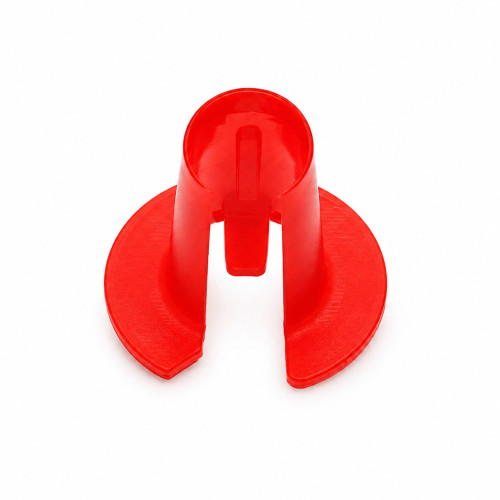

9.4mm Anti Short Bushing (Armoured Cable) - 17.3mm Head | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.08 | £0.10 |
| 250 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 - 9999 | £0.05 | £0.06 |
| 10000 + | £0.04 | £0.05 |
£0.10 / each
.png)
Product Specification
| Internal Diameter | 9.4mm |
| Head Diameter | 17.3mm |
| Overall Height | 14.7mm |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
9.4mm Internal Diameter Armour Cable Bushing | Red High Dielectric Polyethylene
Designed for smaller BX and flexible metal conduit terminations, this 9.4mm armour cable bushing gives a red insulating barrier between the cut cable armour and the internal conductors. The 17.3mm head diameter and 14.7mm overall height help it sit neatly at the cable end while remaining visible during inspection.
The high dielectric polyethylene construction is non-conductive, helping reduce the risk of cable insulation being damaged by rough conduit or armour edges. Its push-fit design keeps installation quick for electricians, panel builders and maintenance teams without adding extra tools to the job.
What Are Armour Cable Bushings?
Armour cable bushings, also called BX cable bushings or anti-short bushings, are fitted into the end of cut armoured cable to stop sharp metal edges from contacting the conductors. They are commonly used with BX cable, FMC cable, MC cable and other metal-clad cable systems where conductor insulation needs extra protection at the termination point.
Common Applications
- Protecting small BX cable ends in commercial lighting and power circuits
- Reducing conductor abrasion inside electrical junction boxes
- Finishing flexible metal conduit terminations during maintenance work
- Supporting inspection-ready cable protection in control panel builds

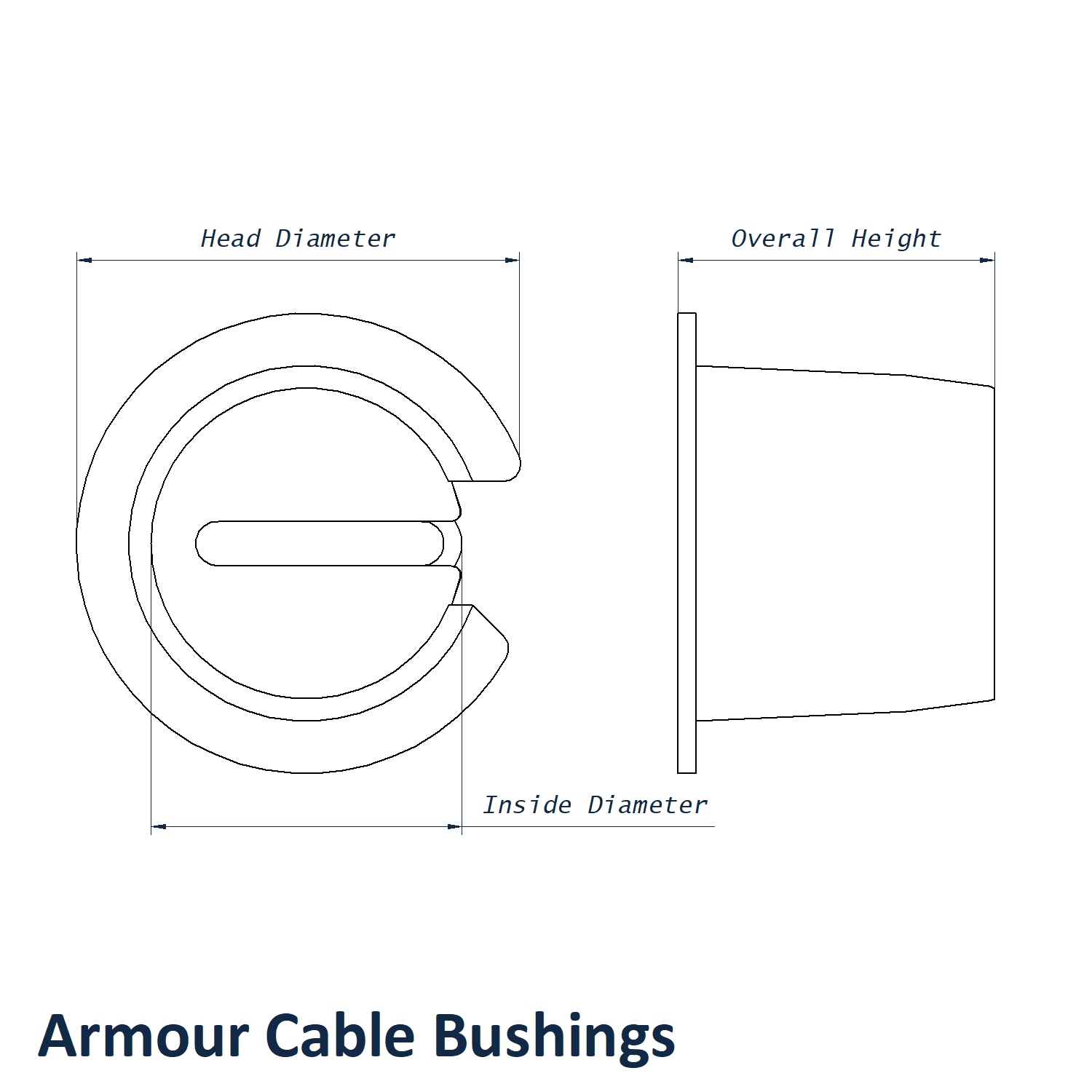

9.4mm Red Armour Cable Bushing Dimensions
- Internal Diameter: 9.4mm
- Head Diameter: 17.3mm
- Overall Height: 14.7mm
- Colour: Red
- Material: High Dielectric Polyethylene
Small Armour Cable Protection
This smaller internal diameter option is a strong choice where a compact red armour cable bushing is needed for neat BX cable termination. It helps improve installation consistency by covering the cut metal edge before the cable is connected.
View our full Armour Cable Bushings range.
Product Support and Trade Orders
For help checking armour cable bushing size, BX cable compatibility or larger electrical installation quantities, speak with the Vital Parts team on 01233 713581. We can help with sizing guidance, sample checks where available and repeat supply for maintenance, commercial and industrial projects.
