Precision Masking Solutions for Powder Coating Excellence
Precision Masking Solutions for Powder Coating Excellence
The powder coating industry demands exceptional attention to detail. Even a small masking error can compromise finish quality, create additional preparation work and lead to costly rework.
Why Precision Masking Matters
Professional powder coaters need reliable masking materials that withstand high-temperature curing while helping to maintain clean edges, protected threads and consistent finished components.
Leading powder coating specialists across the UK choose precision masking products because they support repeatable results under demanding curing conditions.
High-temperature tapes, masking caps, plugs and discs help reduce rework, improve production efficiency and maintain defect-free masking across repeated processing cycles.
Key Requirements
- Temperature resistance beyond 200°C
- Clean and consistent edge definition
- Reliable component protection
- Cost-effective reusability
Benefits of Professional Masking Products
Precision masking products help powder coaters protect critical areas throughout preparation, coating and curing.
High-Temperature Performance
Designed for demanding curing environments where ordinary masking products may soften or fail.
Clean Edge Definition
Helps create clear boundaries between coated and uncoated areas on finished parts.
Reusable Protection
Reusable caps and plugs can support repeated production cycles and help reduce masking costs.
Reduced Rework
Reliable masking helps prevent unwanted coating on threads, holes and contact surfaces.
Powder Coating Masking Products Compared
Select the masking style according to the part and area that must remain coating-free.
| Masking Product | Commonly Used For | Main Benefit |
|---|---|---|
| Masking Caps | Studs, pins, tube ends and exposed components | Quick push-fit protection over external features. |
| Masking Plugs | Holes, bores, ports and internal threads | Helps prevent coating from entering internal openings. |
| Masking Discs | Flat surfaces, holes and contact points | Creates a defined circular protected area. |
| High-Temperature Tape | Edges, seams, larger surfaces and irregular areas | Flexible masking for shaped or extended boundaries. |
Featured EPDM Masking Solutions
Flexible products designed to mask and protect components during industrial finishing.

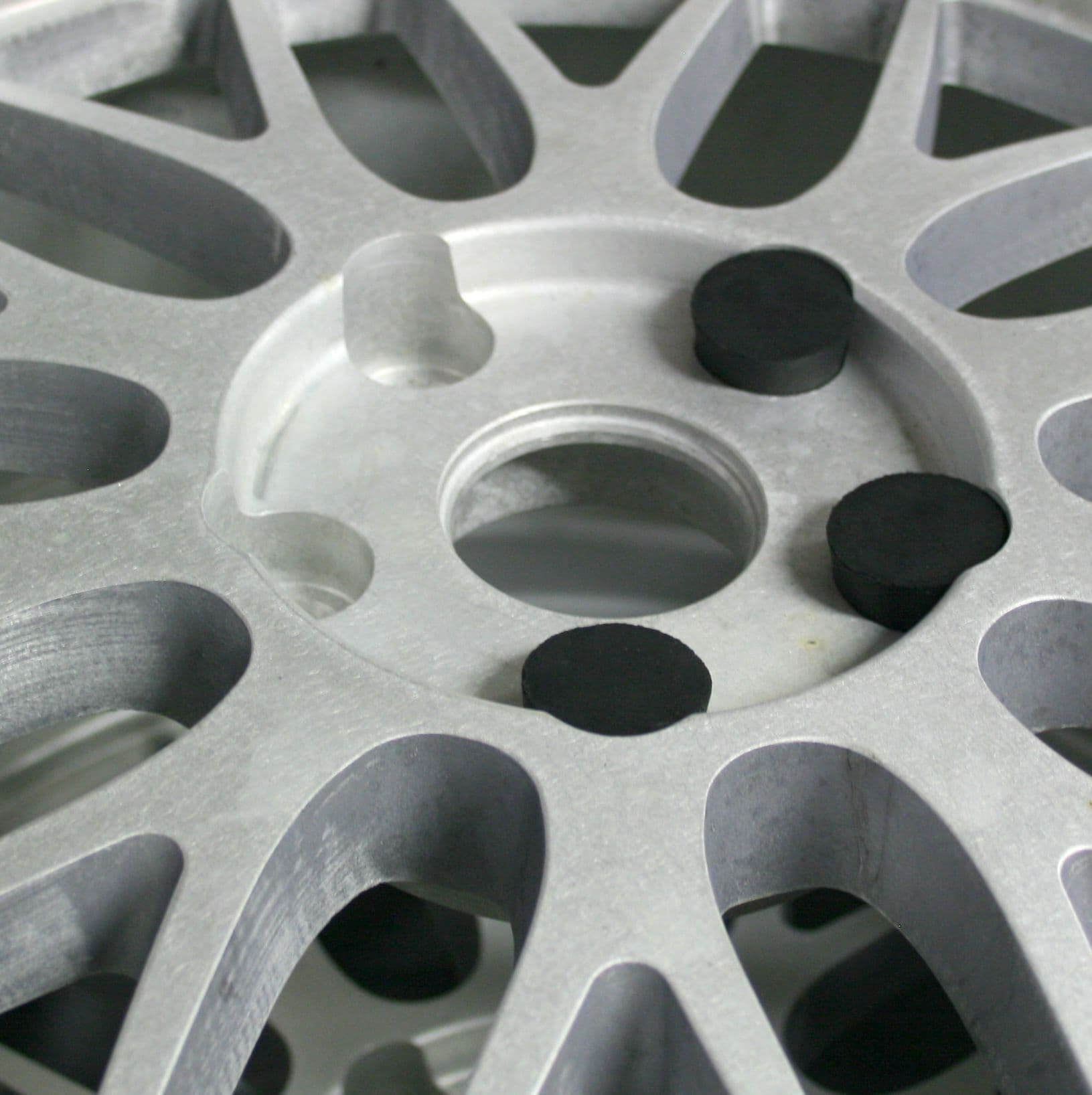

EPDM Tapered Plugs
A tapered profile allows the plug to fit a range of hole diameters while protecting openings from unwanted coating.
Explore Masking Products

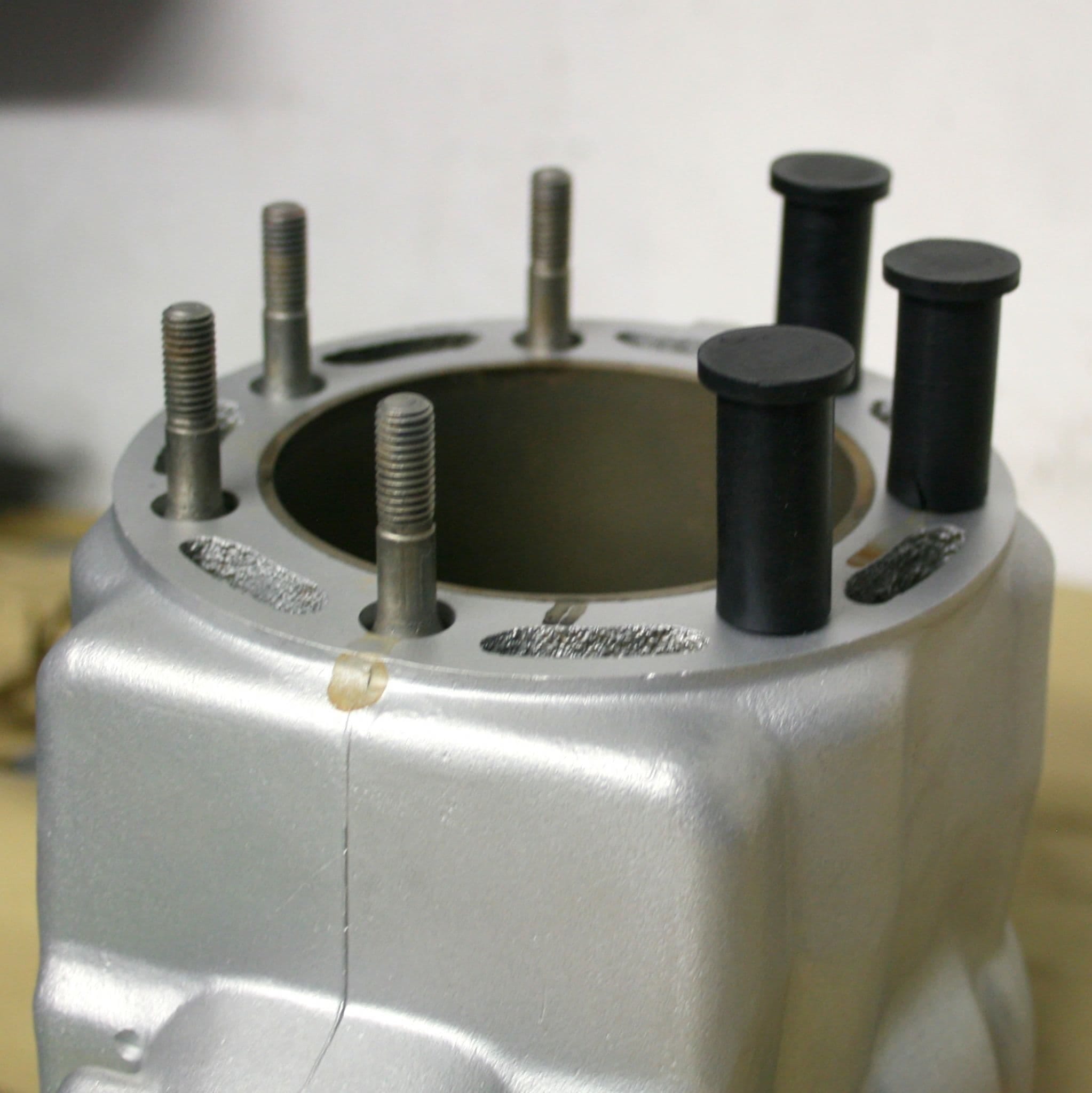

EPDM Ribbed Eze Caps
The ribbed internal profile helps the cap grip components securely while remaining quick to fit and remove.
Explore Masking ProductsCommon Masking Problems and Solutions
Selecting the correct masking product helps reduce common powder coating defects.
Coating Inside Threads
Use a correctly sized masking plug or cap to protect the threaded area throughout coating and curing.
Poor Edge Definition
Select tape, discs or fitted masking components that maintain firm contact around the required boundary.
Masking Product Movement
Check that the selected cap or plug provides the correct grip and fit before the component enters the curing process.
Unnecessary Rework
Standardise masking sizes and processes so operators can achieve repeatable protection across each production batch.
Choose the Right Masking Product
Masking Discs & Die Cuts
quickly cover holes and irregular shapes with high temperature adhesive discs
Popular Masking Solutions for Powder Coating
Discover our most trusted masking components specifically engineered for high-temperature powder coating applications.

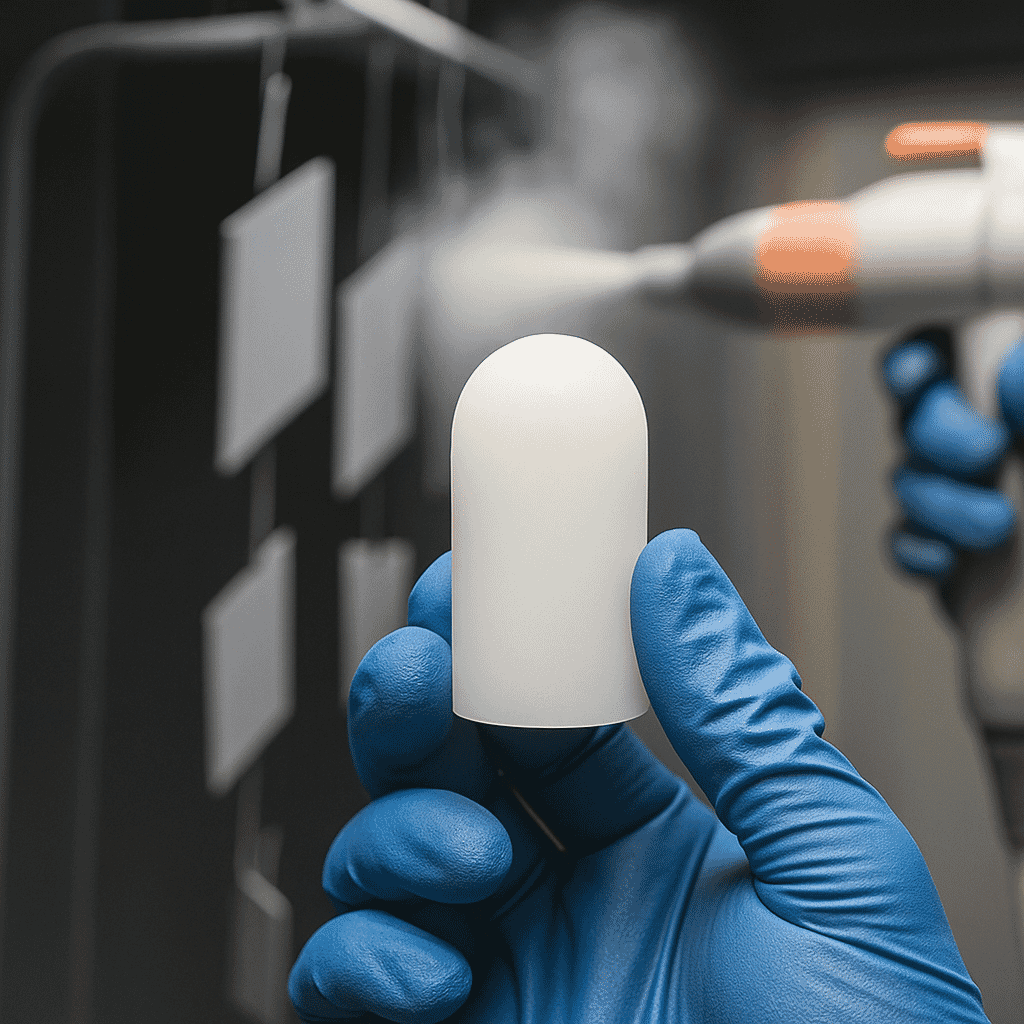

Masking Caps
High temperature silicone caps designed to protect threaded components during powder coating. Available in multiple sizes with temperature resistance up to 200°C.
- ✓Temperature resistant to 200°C
- ✓Reusable for 100+ cycles
- ✓Various thread sizes available
- View Masking Caps →
Masking Tapes
High-temperature polyester and glass cloth tapes specifically formulated for powder coating applications. Superior adhesion with clean removal after curing cycles.
- ✓Temperature resistant up to 220°C (Green Polyester)
- ✓Clean removal with silicone adhesive
- ✓Multiple widths from 3mm to 250mm
- View Masking Tapes →
Alloy Masking Disks
Premium precision-machined disks for high-volume production environments. Exceptional durability and perfect edge definition for critical applications.
- ✓Precision-machined aluminium
- ✓Hundreds of reuse cycles
- ✓Perfect edge definition
- View Alloy Disks →
Masking Hooks
Specialised hanging solutions for powder coating lines. Designed to provide optimal grounding while supporting various component weights and sizes.
- ✓Various weight capacities
- ✓Optimal grounding design
- ✓Multiple hook configurations
- View Masking Hooks →
We also offer a range of Masking Kits — grouping caps, plugs and tapes together in one cost-effective solution, with temperature resistance up to 315°C.
Powder Coating Masking - Frequently Asked Questions
Need Help Selecting a Masking Product?
Contact our technical sales team for help choosing masking caps, plugs, discs or high-temperature tapes for your powder coating process.
