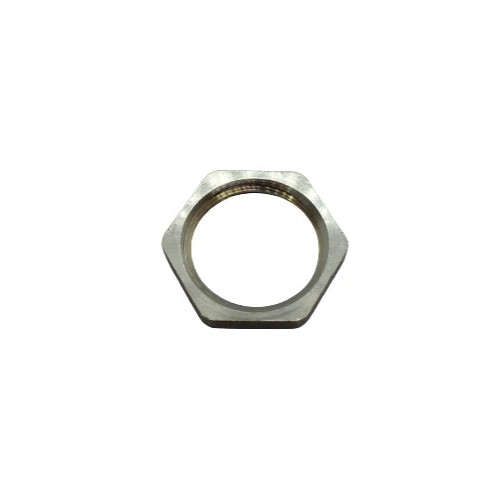

M63 Brass Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.72 | £8.07 |
| 10 - 24 | £5.81 | £6.97 |
| 25 - 49 | £4.91 | £5.89 |
| 50 + | £4.02 | £4.82 |
£8.07 / each
.png)
Product Specification
| Thread | M63 x 1.5mm |
| Across Flats | 75mm |
| Height | 6.0mm |
| Style | Plain |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M63 x 1.5mm Threaded Brass Cable Gland (IP68) 34 - 48mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M63 x 1.5mm Cable Gland Lock Nut | Nickel Plated Brass
This M63 x 1.5mm Plain Cable Gland Lock Nut is intended for compatible gland entries used in control, power and equipment panels. The Brass body uses a Nickel Plated finish with 75mm across flats and a 6.0mm profile.
What Are Brass Cable Gland Lock Nuts?
A Brass cable gland lock nut secures a gland after it has been inserted through a panel or enclosure entry. The threaded ring tightens against the internal face of the panel which helps keep the cable gland correctly positioned during installation and service.
Common Applications
- Lighting Equipment: Provides a secure threaded fastening for cable entries used on suitable lighting housings and panels.
- Panel Building: Provides a repeatable gland-to-panel fixing during electrical panel assembly.
- Industrial Control Panels: Provides a threaded fixing for gland entries carrying power, control or instrumentation cables.
- Automation Equipment: Supports gland installation on control boxes, sensor enclosures and automated machinery.

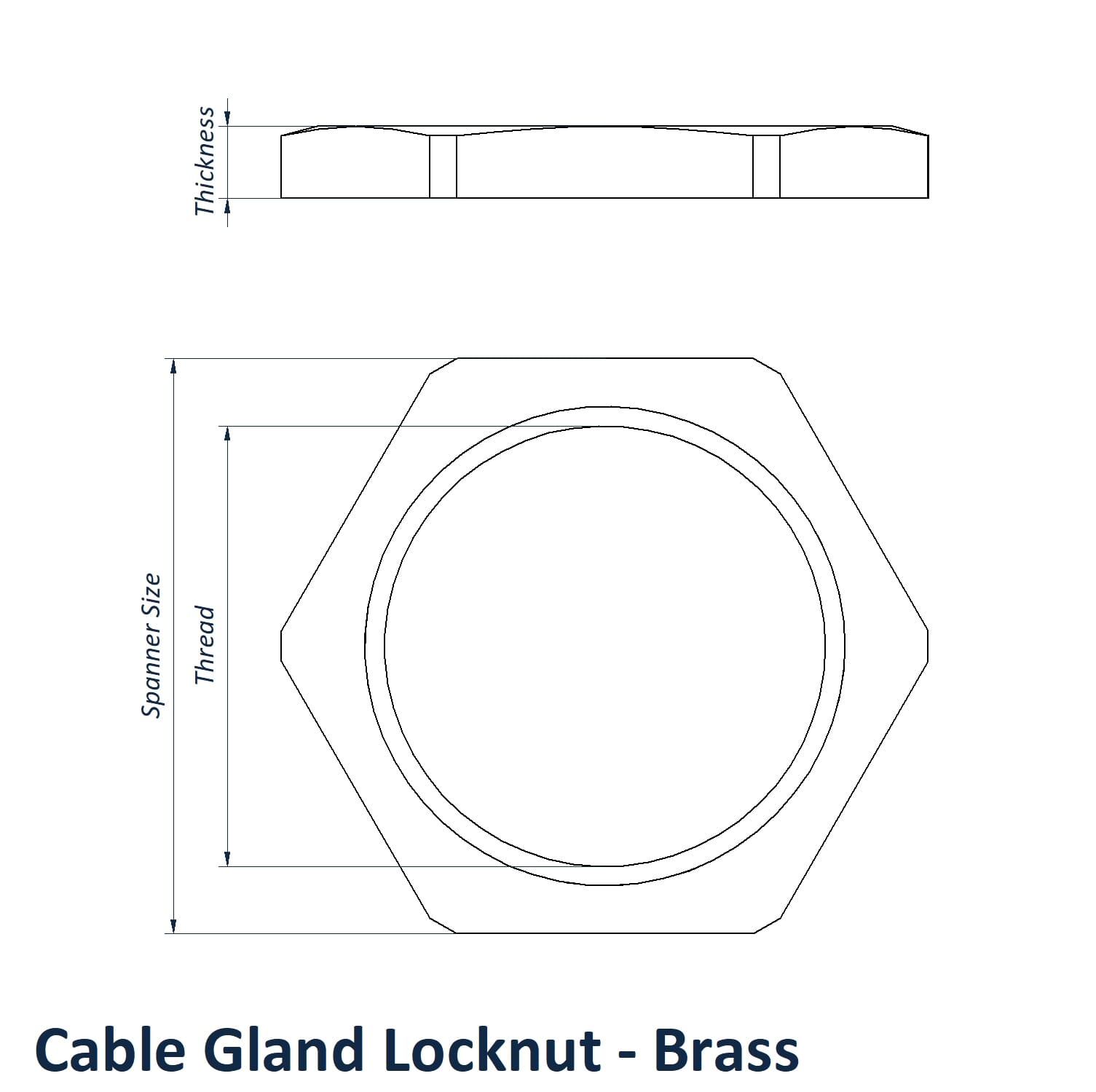

M63 x 1.5mm Plain Cable Gland Lock Nut Dimensions
- Thread: M63 x 1.5mm
- Across Flats: 75mm
- Material: Brass
- Height: 6.0mm
- Style: Plain
- Colour/Finish: Nickel Plated
Key Benefits
- Plain style matches the supplied SKU specification.
- Nickel Plated finish matches the supplied product specification.
- Threaded ring design secures a compatible cable gland against the internal face of a panel or enclosure.
- 6.0mm height matches the uploaded lock nut profile.
Browse the full Cable Gland Lock Nuts range for panel and enclosure installations. We supply A2 stainless steel, brass and nylon material options as well as EMC lock nuts for compatible shielded gland systems. Technical support is available on 01233 713581.
