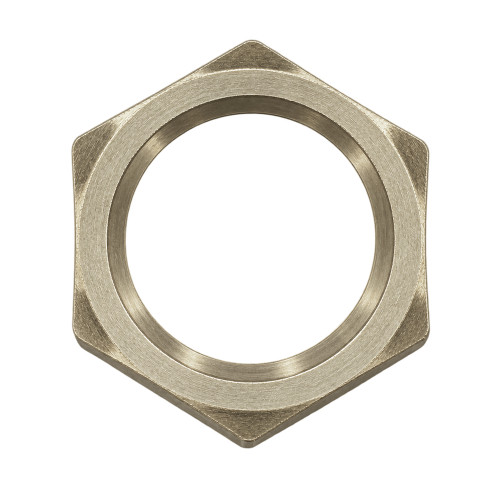

M12 Brass Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.40 | £0.48 |
| 10 - 49 | £0.35 | £0.42 |
| 50 - 99 | £0.29 | £0.35 |
| 100 + | £0.24 | £0.29 |
£0.48 / each
Product Specification
| Thread | M12 x 1.5mm |
| Across Flats | 15mm |
| Height | 2.8mm |
| Style | Plain |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M12 x 1.5mm Threaded Brass Cable Gland (IP68) 3 - 7mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M12 x 1.5mm Cable Gland Lock Nut | Nickel Plated Brass
Providing a secure mechanical fixing for panel-mounted cable glands, this M12 x 1.5mm Brass lock nut has a Plain 2.8mm profile and measures 15mm across flats. The Nickel Plated finish matches the supplied SKU specification and the thread is designed to pair with a compatible gland.
What Are Brass Cable Gland Lock Nuts?
Brass lock nuts provide a robust metal fixing for cable glands used in control, power, data and industrial equipment. The hexagonal profile gives installers a practical surface for tightening while the internal thread matches the gland entry.
Common Applications
- Lighting Equipment: Provides a secure threaded fastening for cable entries used on suitable lighting housings and panels.
- Panel Building: Provides a repeatable gland-to-panel fixing during electrical panel assembly.
- Industrial Control Panels: Provides a threaded fixing for gland entries carrying power, control or instrumentation cables.
- Automation Equipment: Supports gland installation on control boxes, sensor enclosures and automated machinery.

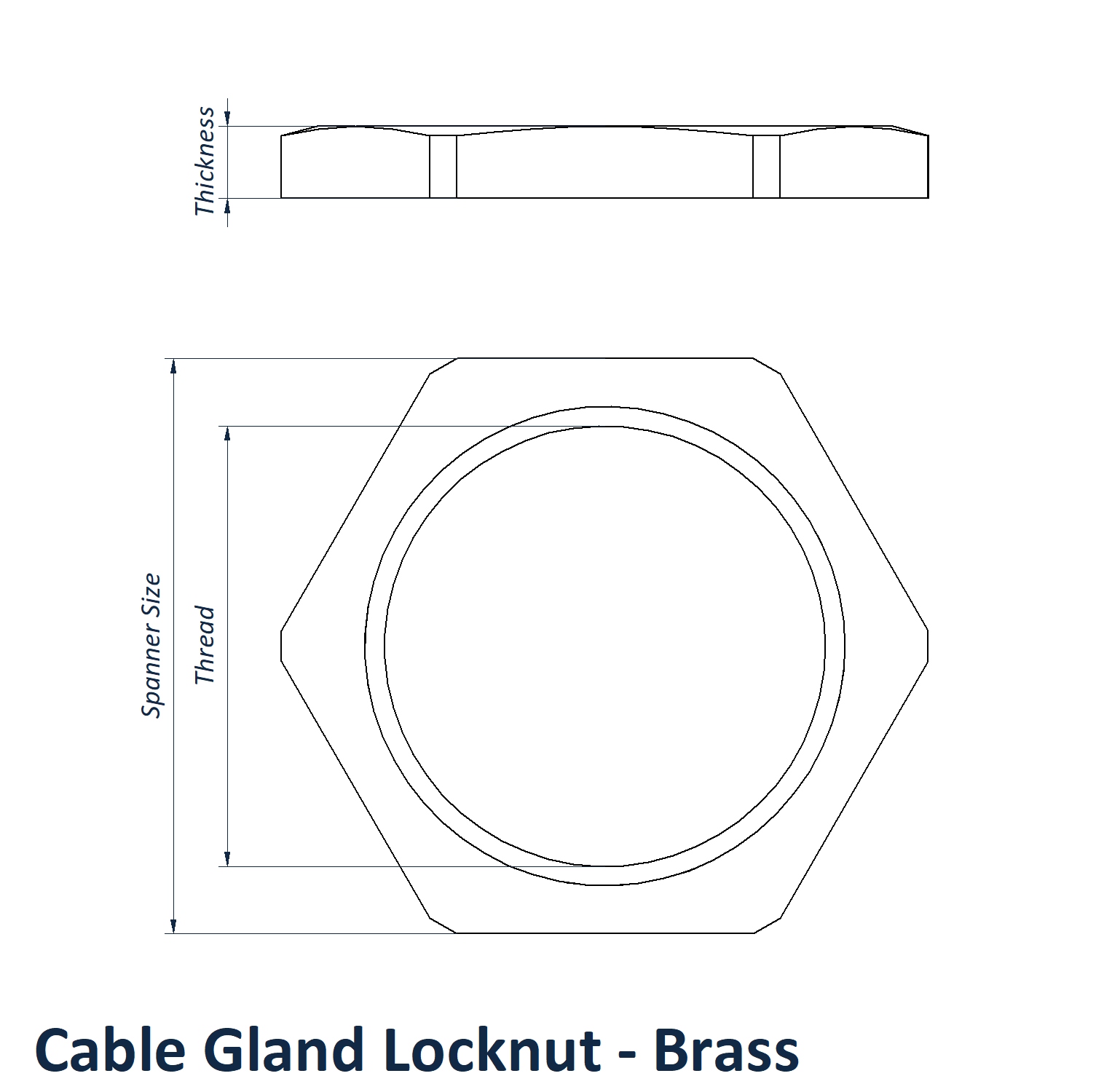

M12 x 1.5mm Plain Cable Gland Lock Nut Dimensions
- Thread: M12 x 1.5mm
- Across Flats: 15mm
- Material: Brass
- Height: 2.8mm
- Style: Plain
- Colour/Finish: Nickel Plated
Key Benefits
- Nickel Plated finish matches the supplied product specification.
- Threaded ring design secures a compatible cable gland against the internal face of a panel or enclosure.
- 2.8mm height matches the uploaded lock nut profile.
- Brass construction provides a robust metal fastening option for cable gland installations.
Further options are available through the Vital Parts Cable Gland Lock Nuts category. Our range includes A2 stainless steel, brass and nylon lock nuts plus dedicated EMC options. For help matching the thread to your cable gland, speak with our team on 01233 713581.
