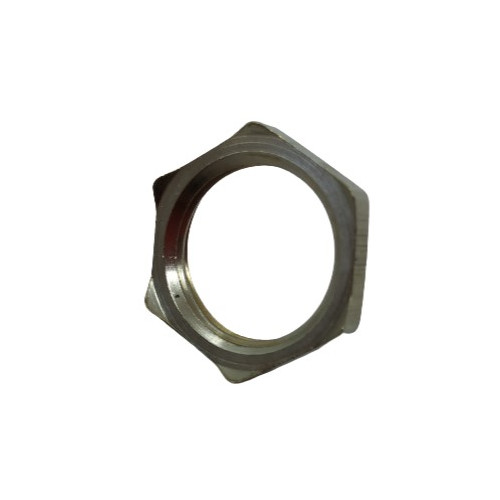

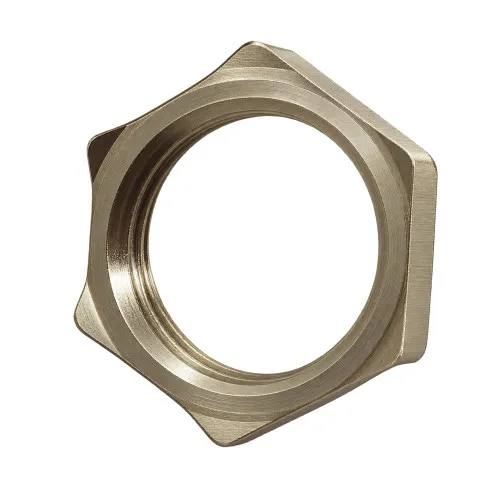

M63 Brass EMC Cable Gland Locknut | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £12.60 | £15.12 |
| 10 - 24 | £10.96 | £13.15 |
| 25 - 49 | £9.37 | £11.24 |
| 50 + | £7.77 | £9.32 |
£15.12 / each
.png)
Product Specification
| Thread | M63 x 1.5mm |
| Across Flats | 75mm |
| Height | 7.0mm |
| Style | EMC |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M63 x 1.5mm Threaded Brass Cable Gland (IP68) 34 - 48mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M63 x 1.5mm EMC Cable Gland Lock Nut | Nickel Plated Brass
Manufactured for compatible EMC gland assemblies, this M63 x 1.5mm Brass lock nut combines a Nickel Plated finish with an EMC style. The 75mm across-flats dimension supports tightening while the 7.0mm profile sits against the enclosure panel.
What Are EMC Cable Gland Lock Nuts?
EMC Cable Gland Lock Nuts are metal threaded fastening rings used with compatible EMC cable glands. They secure the gland to the enclosure panel while supporting the conductive connection required by suitable shielded cable and metal gland assemblies.
Common Applications
- Industrial Machinery: Secures EMC gland assemblies on machinery panels where shield continuity is required by the installation.
- Panel Building: Provides a dedicated EMC-style lock nut for compatible cable gland assemblies.
- Automation Panels: Provides a metal fastening point for gland entries used on control and automation equipment.
- Data and Telecom: Provides a threaded fastening component for compatible shielded communication cable entries.

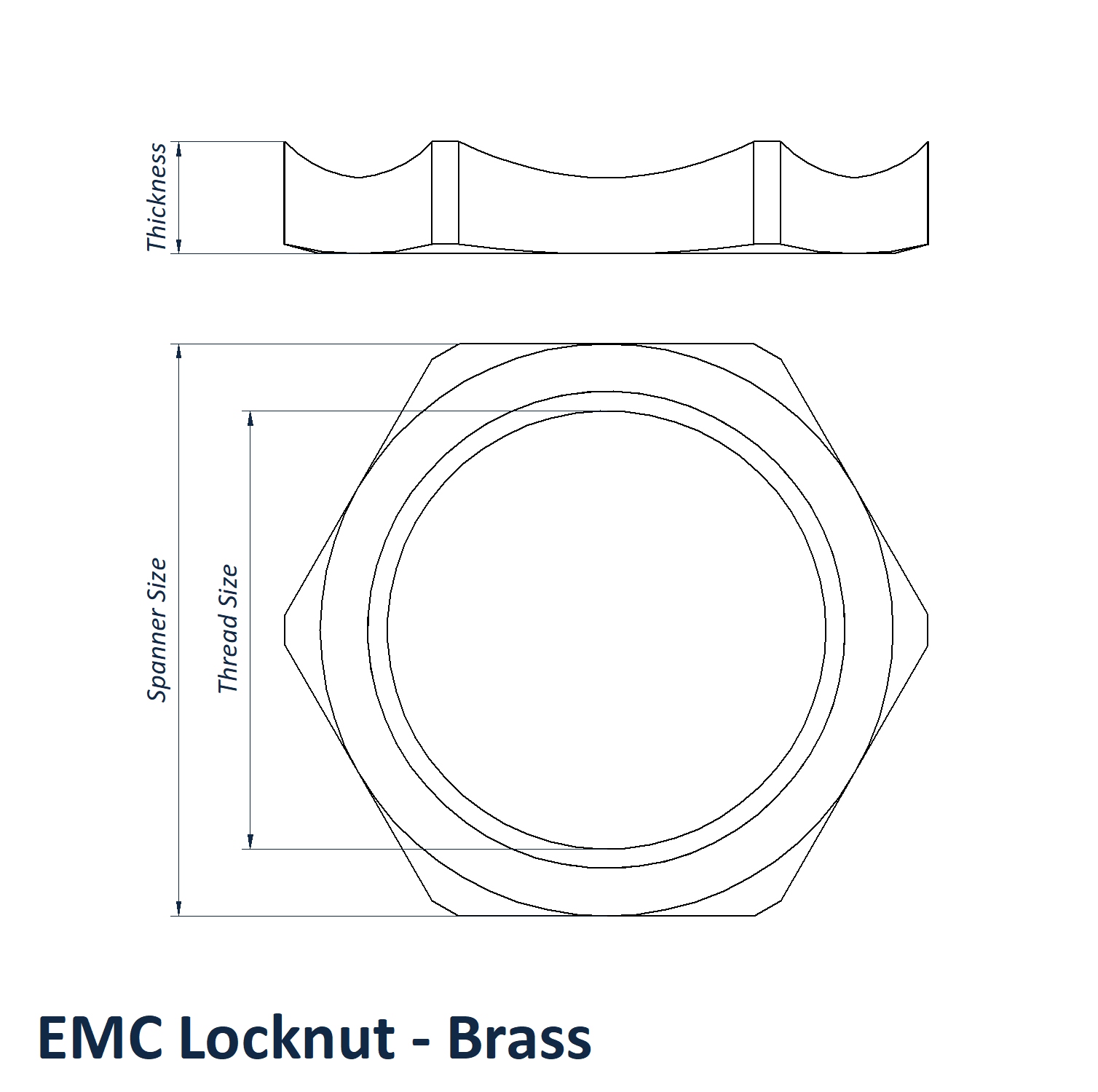

M63 x 1.5mm EMC Cable Gland Lock Nut Dimensions
- Thread: M63 x 1.5mm
- Across Flats: 75mm
- Material: Brass
- Height: 7.0mm
- Style: EMC
- Colour/Finish: Nickel Plated
Key Benefits
- 75mm across-flats dimension provides a clear hexagonal tool size reference.
- Nickel Plated finish is retained exactly from the uploaded product data.
- Hexagonal outside profile supports controlled tightening with suitable tools.
- M63 x 1.5mm thread provides the main compatibility reference for the cable gland.
Further options are available through the Vital Parts Cable Gland Lock Nuts category. Our range includes A2 stainless steel, brass and nylon lock nuts plus dedicated EMC options. For help matching the thread to your cable gland, speak with our team on 01233 713581.
