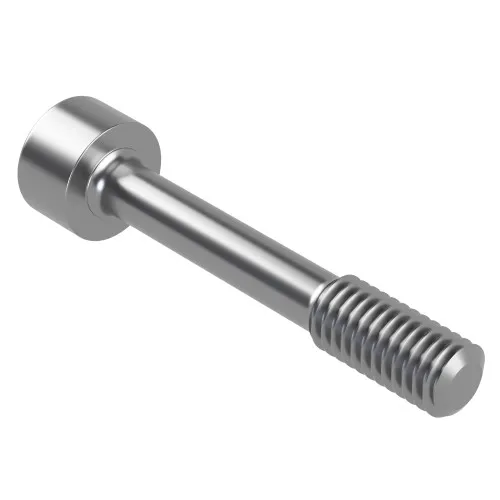

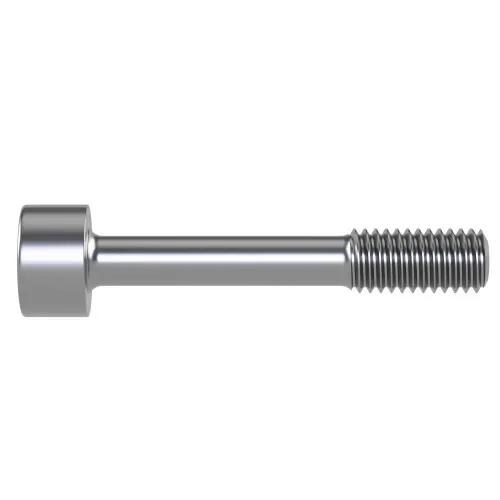

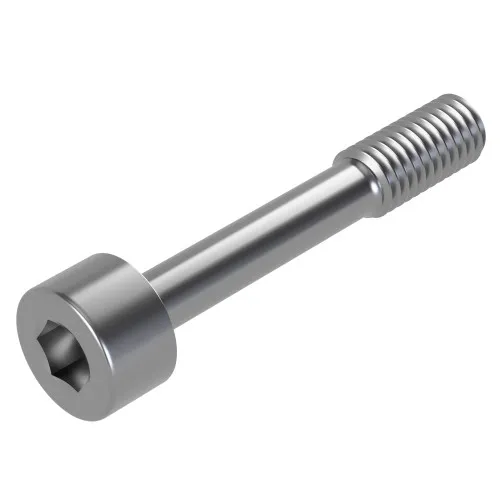

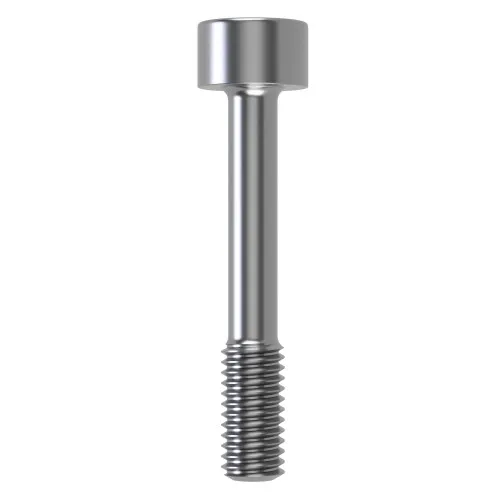

M8 x 35mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.62 | £4.35 |
| 50 - 99 | £3.23 | £3.87 |
| 100 - 249 | £2.90 | £3.48 |
| 250 - 499 | £2.63 | £3.16 |
| 500 - 999 | £2.42 | £2.90 |
| 1000 + | £2.08 | £2.49 |
£4.35 / each
.png)
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 35mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 16.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 35mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
Designed for instrument housings, test equipment and precision assemblies, this M8 x 35mm captive hex socket screw combines a socket cap head with a reduced captive section. Once installed with a suitable retaining feature, the screw can be loosened from its mating thread while remaining associated with the panel or component. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Socket Head Captive Screws provide positive hex-key drive engagement together with a retained fastening format. They are commonly specified for machinery, enclosures and serviceable equipment where panels need to be removed or opened regularly without losing the fasteners.
Common Applications
- Industrial Enclosures: Provides a retained fastening point for covers and doors on suitable equipment housings.
- Instrumentation: Keeps small fastening hardware attached to precision panels, test equipment and technical housings.
- Automation Equipment: Supports repeat-access panels on machinery, control systems and production equipment.
- Transport Equipment: Provides retained fixings for suitable removable covers and inspection panels.
M8 x 35mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 35mm
- Threaded Length: 16.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 13.0mm head diameter gives the stated DIN 912-style cap head width.
- H6 hex socket drive provides positive engagement with a matching driver or key.
- A4 Stainless Steel construction provides the specified stainless steel grade and corrosion resistance.
- M8 thread size with 35mm overall length provides the primary screw dimensions.
View the full Cap Head Captive Screws range to compare thread sizes, lengths, drives and stainless steel grades. We also stock other styles in our Captive Screws range, including countersunk captive screws for applications where a flush head is preferred. If you need help selecting the correct retained fixing, call us on 01233 713581.
