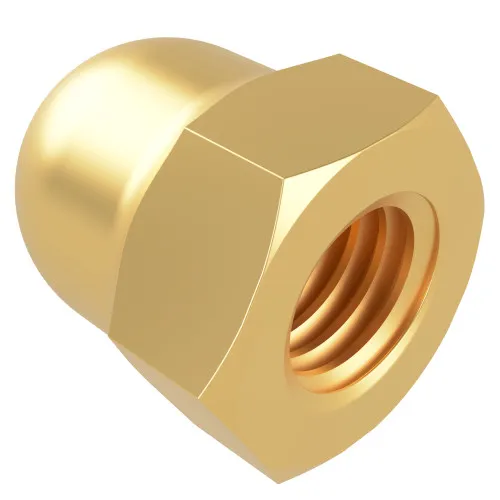

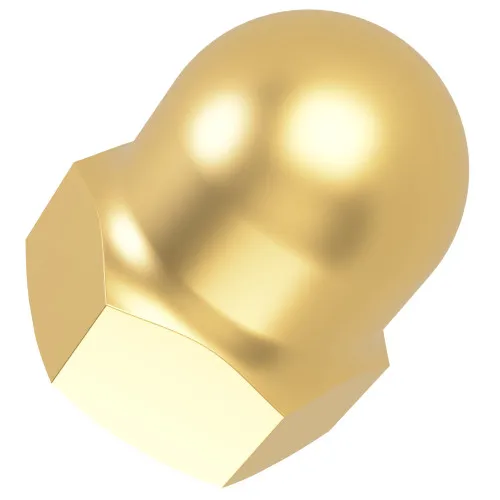

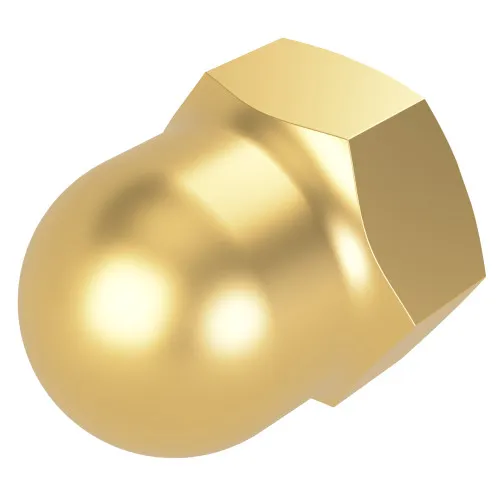

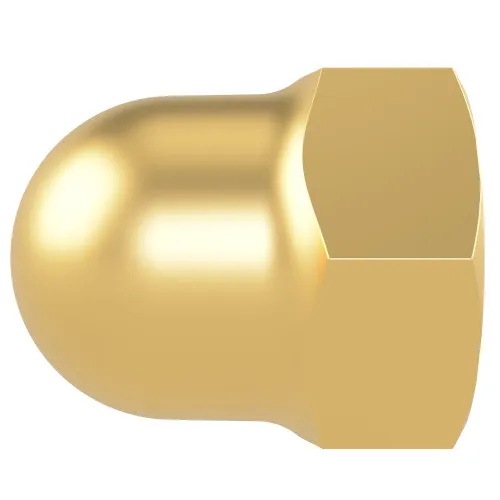

M4 Dome Nut (DIN 1587) | Brass
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.21 | £0.25 |
| 100 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.13 | £0.16 |
| 5000 + | £0.10 | £0.12 |
£0.25 / each
Product Specification
| Thread Size | M4 |
| Thread Pitch | 0.70mm |
| Material | Brass |
| Across Flats | 7.0mm |
| Height | 8.0mm |
| Standard | DIN 1587 |
Frequently Bought Together
Total Price: £0.00
M4 Domed Hex Nut DIN 1587 | Brass
The M4 Domed Hex Nut DIN 1587 is a brass closed-end nut used to finish M4 threaded fixings with a smooth cap-style appearance. It helps conceal the end of a bolt or threaded rod while giving the assembly a cleaner and more professional finish.
Made from self-colour brass, this M4 dome nut is suitable for decorative, indoor and light duty applications where corrosion resistance and appearance are important. Its 0.70mm pitch, 7.0mm across flats and 8.0mm height provide a practical balance between compact size and easy spanner access.
Common Applications
- Finished furniture fixings
- Instrument and control panels
- Display equipment
- Light mechanical assemblies

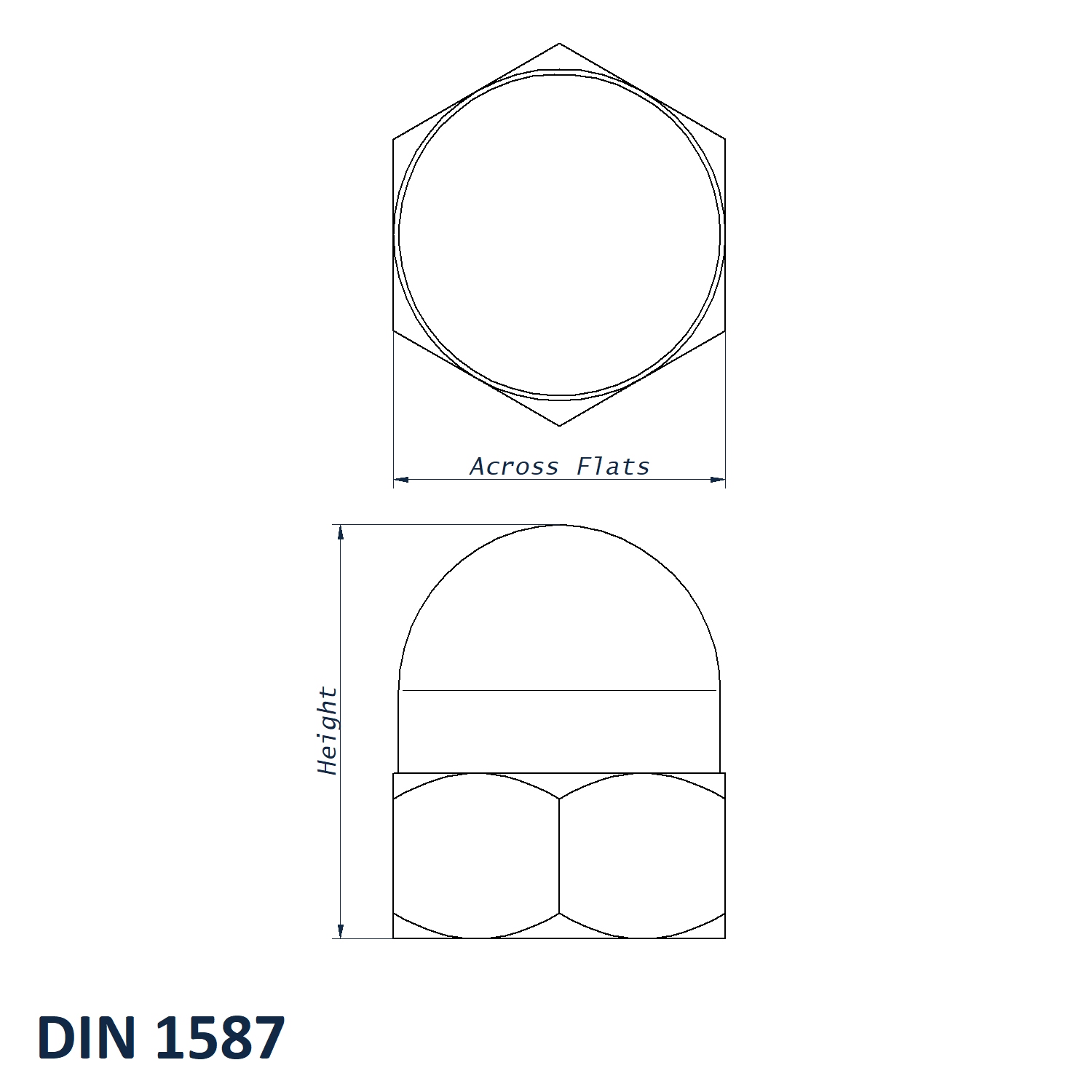

M4 x 0.70mm Domed Hex Nut Dimensions
- Thread Size: M4
- Thread Pitch: 0.70mm
- Across Flats: 7.0mm
- Height: 8.0mm
- Standard: DIN 1587
- Material: Brass
This M4 size is ideal for neat finishing work where the fastener must remain visible but protected.
View our full range of Domed Hex Nuts DIN 1587 or browse the wider Dome Nuts collection.
