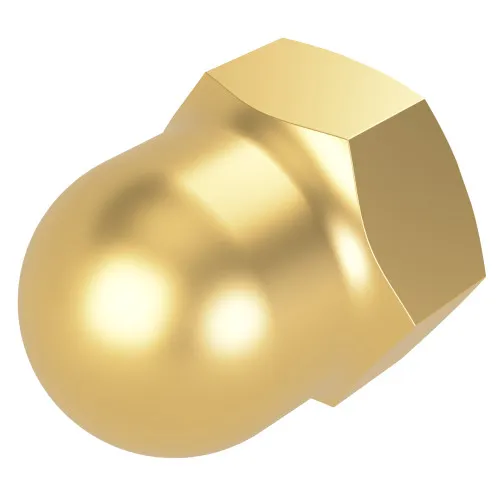

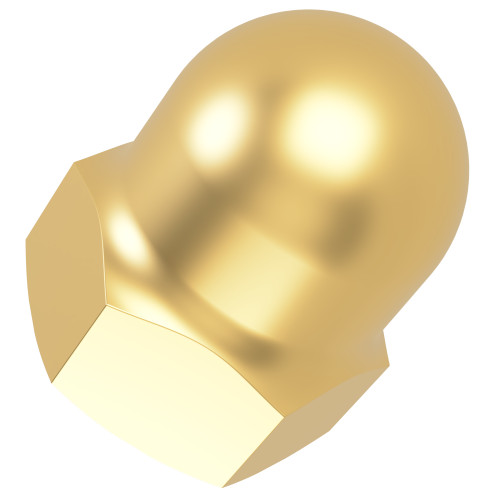

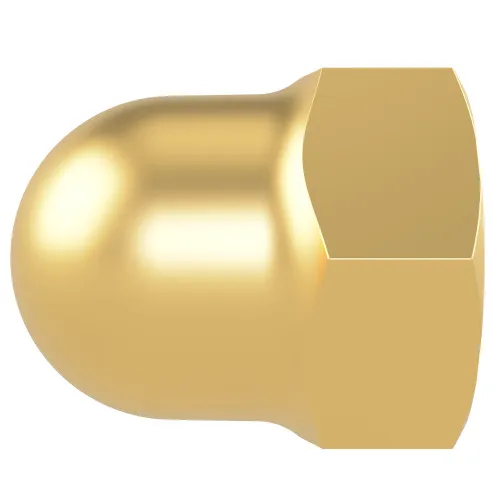

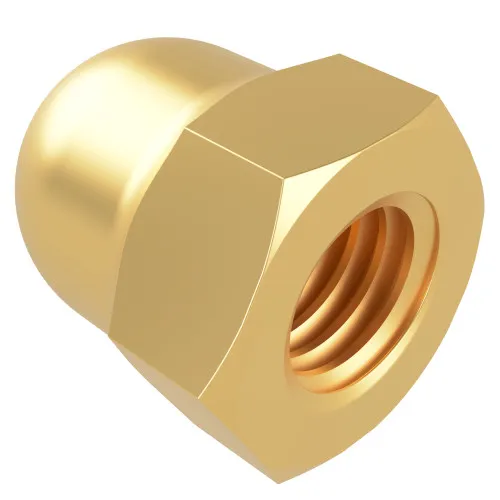

M12 Dome Nut (DIN 1587) | Brass
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.35 | £2.82 |
| 100 - 999 | £1.68 | £2.01 |
| 1000 - 4999 | £1.47 | £1.76 |
| 5000 + | £1.18 | £1.41 |
£2.82 / each
.png)
Product Specification
| Thread Size | M12 |
| Thread Pitch | 1.75mm |
| Material | Brass |
| Across Flats | 19.0mm |
| Height | 22.0mm |
| Standard | DIN 1587 |
Frequently Bought Together
Total Price: £0.00
M12 Domed Hex Nut DIN 1587 | Brass
The M12 Domed Hex Nut DIN 1587 is a larger brass acorn nut used to cover exposed M12 threaded components. The closed dome helps shield the thread end while giving the finished assembly a smoother, more complete appearance.
Manufactured from self-colour brass, this M12 dome nut is ideal for decorative and sheltered installations where a brass finish is preferred over a plain exposed fastener. Its 1.75mm pitch, 19.0mm across flats and 22.0mm height provide a prominent cap for larger visible threaded connections.
Common Applications
- Architectural brass hardware
- Large display structures
- Decorative machinery panels
- Exposed threaded rod ends

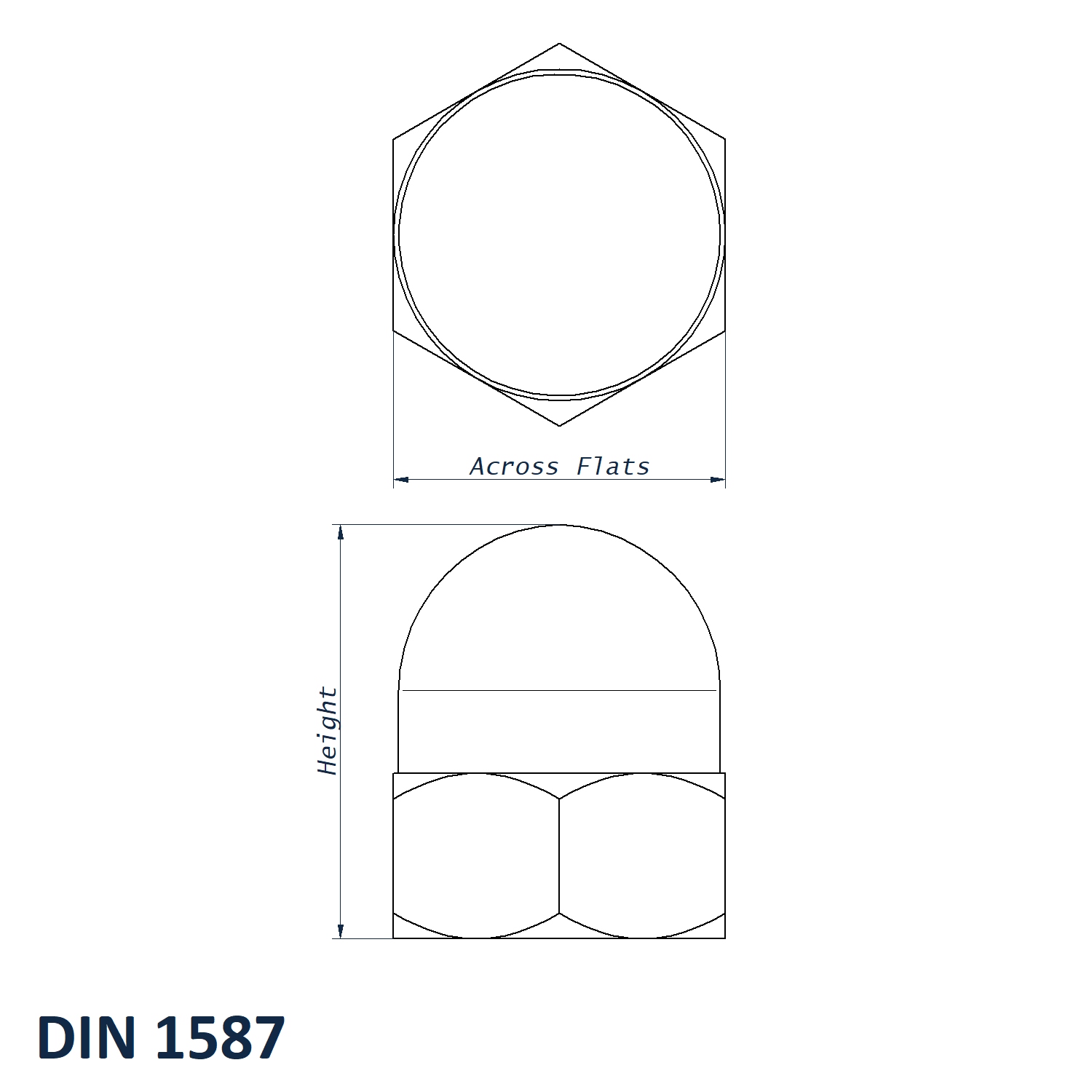

M12 x 1.75mm Domed Hex Nut Dimensions
- Thread Size: M12
- Thread Pitch: 1.75mm
- Across Flats: 19.0mm
- Height: 22.0mm
- Standard: DIN 1587
- Material: Brass
Use this M12 brass domed nut for larger visible fixings where the thread end must be capped neatly.
View our full range of Domed Hex Nuts DIN 1587 or browse the wider Dome Nuts collection.
