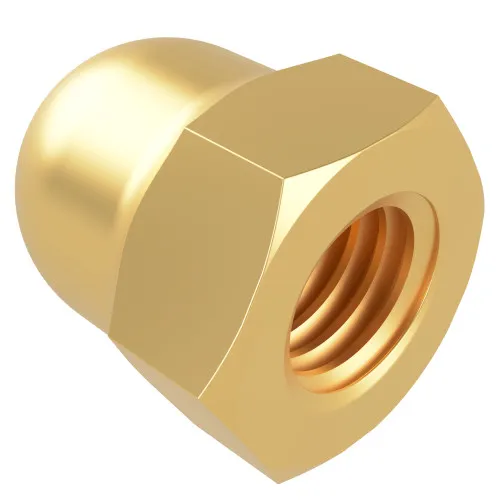

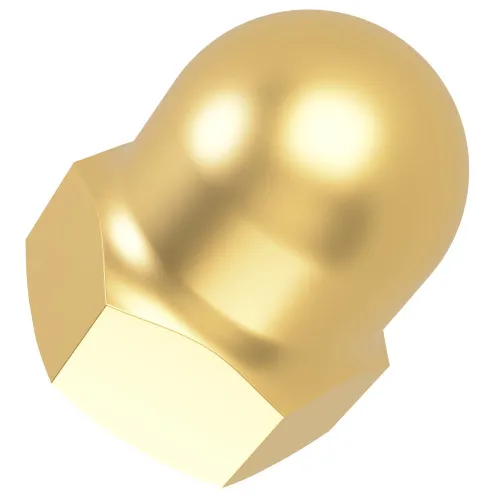

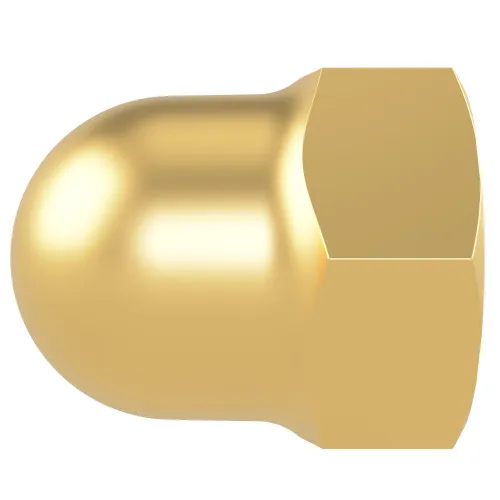

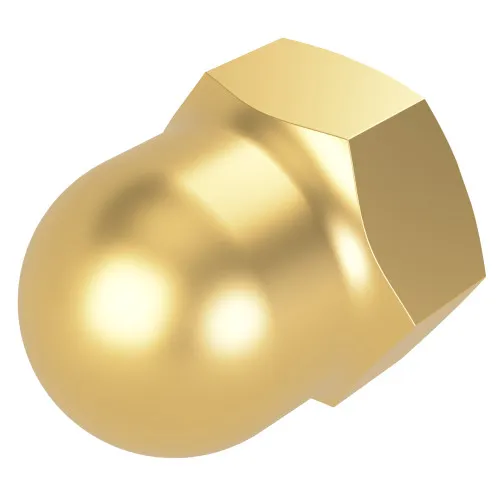

M3 Dome Nut (DIN 1587) | Brass
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.14 | £0.17 |
| 100 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.17 / each
Product Specification
| Thread Size | M3 |
| Thread Pitch | 0.50mm |
| Material | Brass |
| Across Flats | 5.5mm |
| Height | 6.0mm |
| Standard | DIN 1587 |
Frequently Bought Together
Total Price: £0.00
M3 Domed Hex Nut DIN 1587 | Brass
The M3 Domed Hex Nut DIN 1587 is a compact brass cap nut designed to cover and finish exposed M3 male threads in small assemblies. Its closed dome provides a neat end finish while helping to protect the thread tip from contact, snagging and light damage.
Manufactured from self-colour brass, this M3 dome nut is well suited to decorative hardware, electrical components, model making and light engineering work where a tidy brass finish is required. The 0.50mm thread pitch, 5.5mm across flats and 6.0mm height make it suitable for precise fastening points with limited space.
Common Applications
- Small machine screw assemblies
- Electrical fittings and terminals
- Decorative brass hardware
- Model making and instrument panels

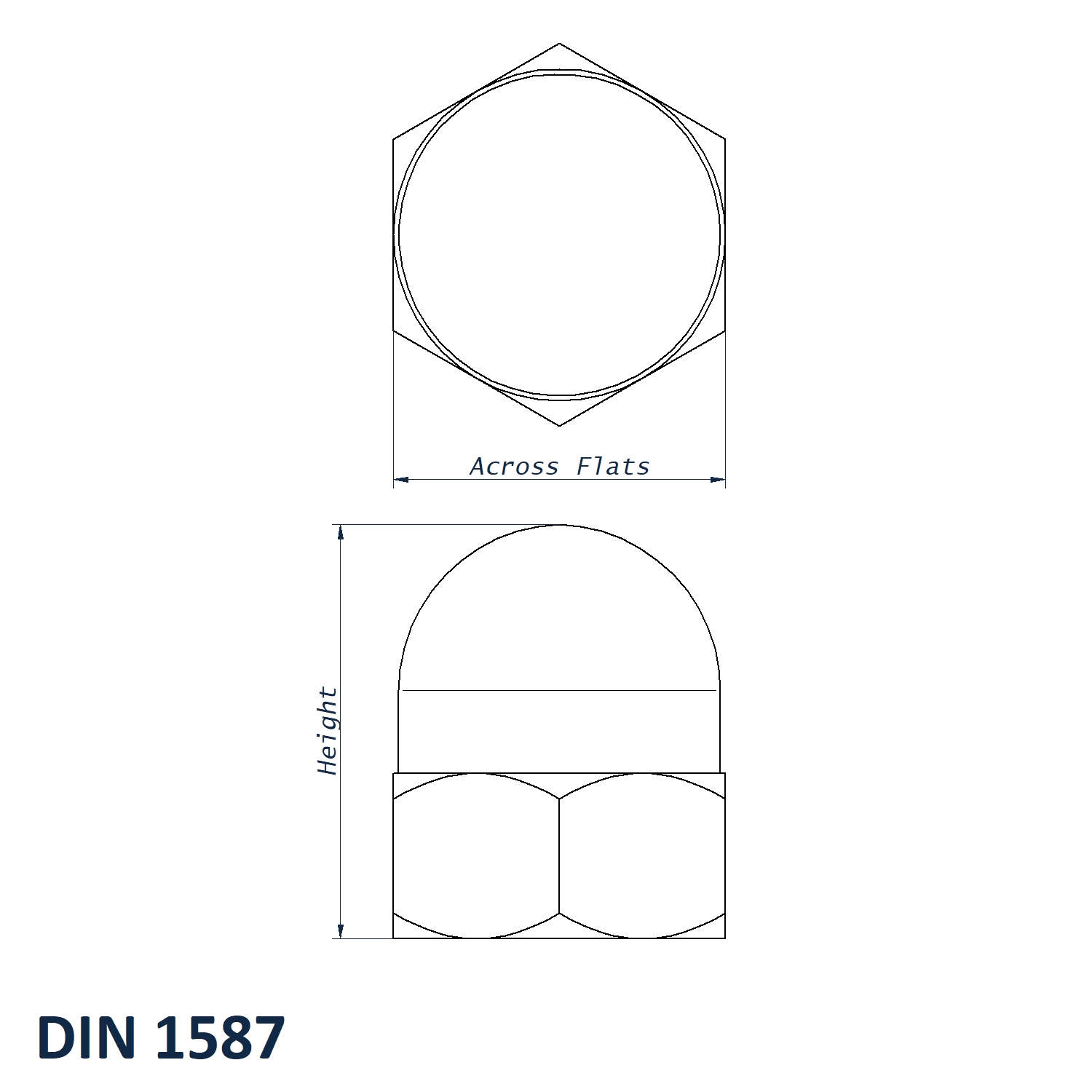

M3 x 0.50mm Domed Hex Nut Dimensions
- Thread Size: M3
- Thread Pitch: 0.50mm
- Across Flats: 5.5mm
- Height: 6.0mm
- Standard: DIN 1587
- Material: Brass
Choose this M3 brass domed nut when a compact covered thread finish is needed on small diameter fixings.
View our full range of Domed Hex Nuts DIN 1587 or browse the wider Dome Nuts collection.
