Ergonomic Clamping Handle - HW140

Product code: HW140
View All Specifications

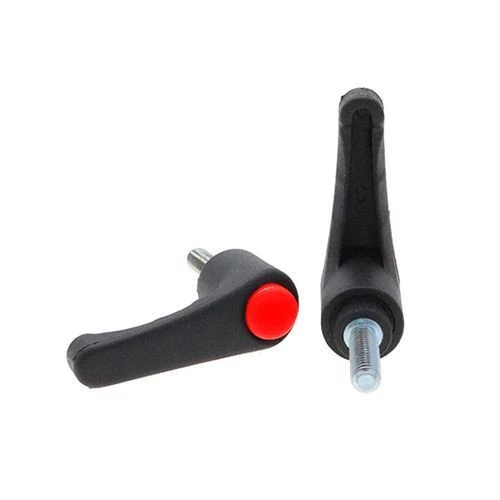

Black M5 x 10mm Ergonomic Clamping Handles

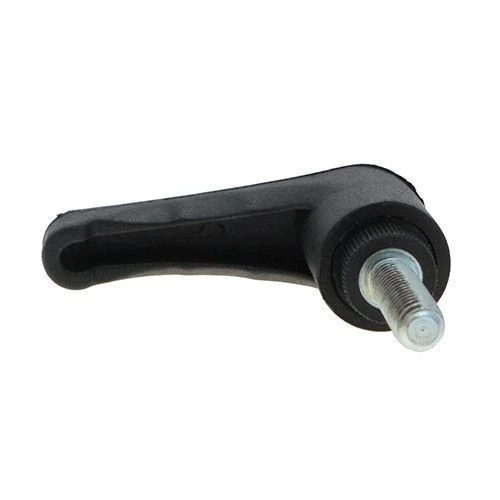

Black M5 x 10mm Ergonomic Clamping Handles

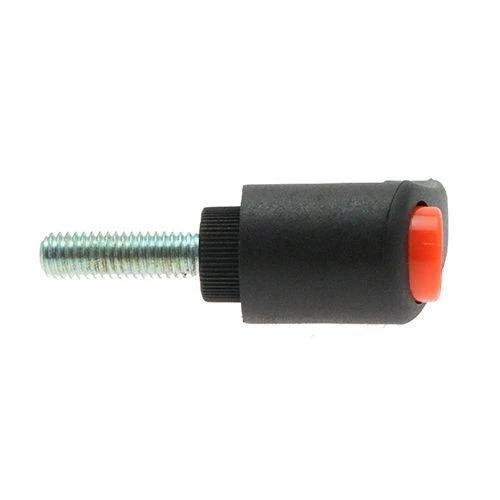

Black M5 x 10mm Ergonomic Clamping Handles

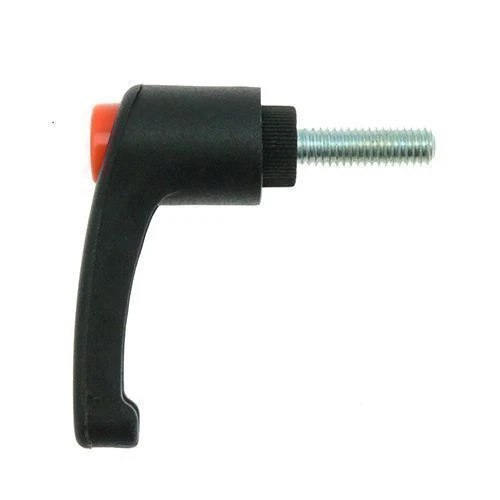

Black M5 x 10mm Ergonomic Clamping Handles

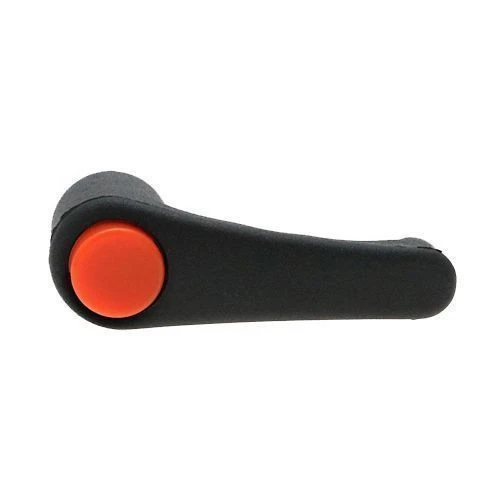

Black M5 x 10mm Ergonomic Clamping Handles
Black M5 x 10mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.96 £2.35
10 - 24 £1.59 £1.91
25 - 49 £1.47 £1.76
50 - 99 £1.27 £1.53
100 - 499 £1.03 £1.24
500 + £0.88 £1.06

£2.35 / each


Up to 1 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 415 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
415 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M5 x 10mm
Thread Type Male
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M5 x 10mm Male Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | Steel Thread

This M5 x 10mm male ergonomic clamping handle combines a projecting threaded stud with an ergonomic Nylon lever for production equipment and adjustable tooling. The 43mm handle length provides useful leverage while the indexed ratchet action allows the lever position to be reset after tightening. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.

For other materials, handle profiles and thread configurations, see our wider indexed clamping handles selection for machinery, fixtures and general industrial adjustment.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M5 x 10mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M5 x 10mm
  • Thread Type: Male
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Steel threaded component provides the stated fixing material.
  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
  • 43mm handle length provides the stated lever size for hand tightening and adjustment.
  • 12mm shank diameter provides the stated central boss dimension.

See more male ratchet clamping handles for industrial clamping and adjustment applications. For product-selection support, speak with our team on 01233 713581.
