| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.88 | £3.46 |
| 10 - 24 | £2.34 | £2.81 |
| 25 - 49 | £2.16 | £2.59 |
| 50 - 99 | £1.88 | £2.25 |
| 100 - 499 | £1.52 | £1.82 |
| 500 + | £1.30 | £1.56 |
£3.46 / each
Product Specification
| Thread Size | M6 |
| Thread Type | Female |
| Handle Length | 43mm |
| Height | 29mm |
| Shank Diameter | 12mm |
| Handle Material | Nylon |
| Thread Material | A2 Stainless Steel |
| Handle Colour | Black |
| Button Colour | Orange |
Frequently Bought Together
300mm Black Reusable Cable Ties (88mm Max Bundle) - 4.8mm Wide - 22kg Tensile Strength | 100pk
- Colour Black
- Width 4.8mm
- Max Bundle Diameter 88mm
- Length 300mm
- Minimum Tensile Strength 22kg
- Thread Size M6 x 20mm
- Thread Material Steel
- Height 29mm
- Shank Diameter 12mm
- Thread Type Male
- Handle Material Nylon
- Handle Length 43mm
- Handle Colour Orange
- Button Colour Black
- Material A2 Stainless Steel
- Handle Height 23.4mm
- Shoulder Diameter 11.9mm
- Shoulder Height 16.0mm
- Pin Diameter 5mm
- Grip Length 20mm
- Handle Diameter 20.6mm
- Pull Ring Diameter 15mm
- Exposed Length 6mm
- Knob Diameter 5.8mm
- Extended Ball Diameter 5.5mm
Total Price: £0.00

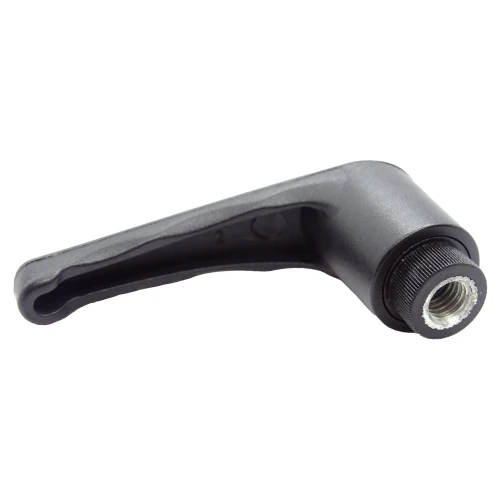

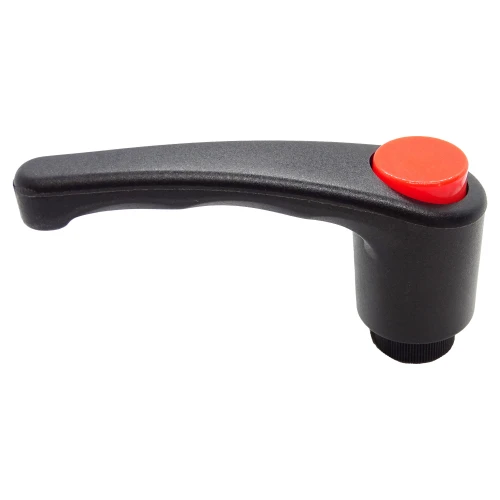

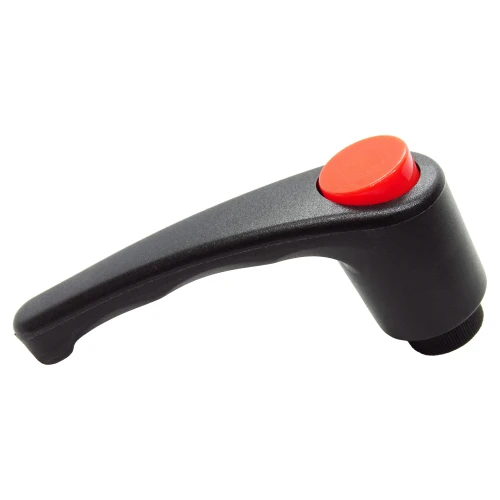

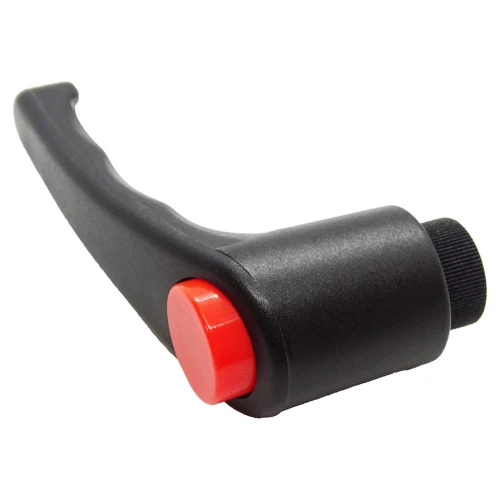

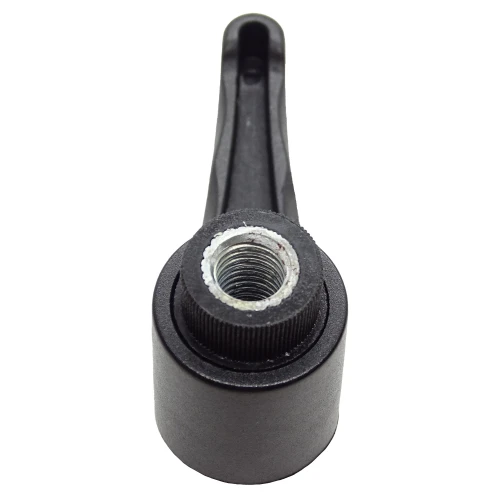

M6 Female Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | A2 Stainless Steel Thread
Designed for adjustable brackets, guides and machine components, this M6 female indexed clamping handle uses a female thread to accept a compatible male stud or bolt. The ergonomic Nylon handle provides a comfortable operating grip while the indexed mechanism helps reposition the lever without changing the clamping setting. The A2 Stainless Steel threaded component provides good corrosion resistance for suitable engineering and equipment applications.
What Are Ergonomic Clamping Handles?
Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.
Different applications may suit other threaded clamping handles, including alternative handle shapes, materials and male or female thread options.
Common Applications
- Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
- Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
- Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
- Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

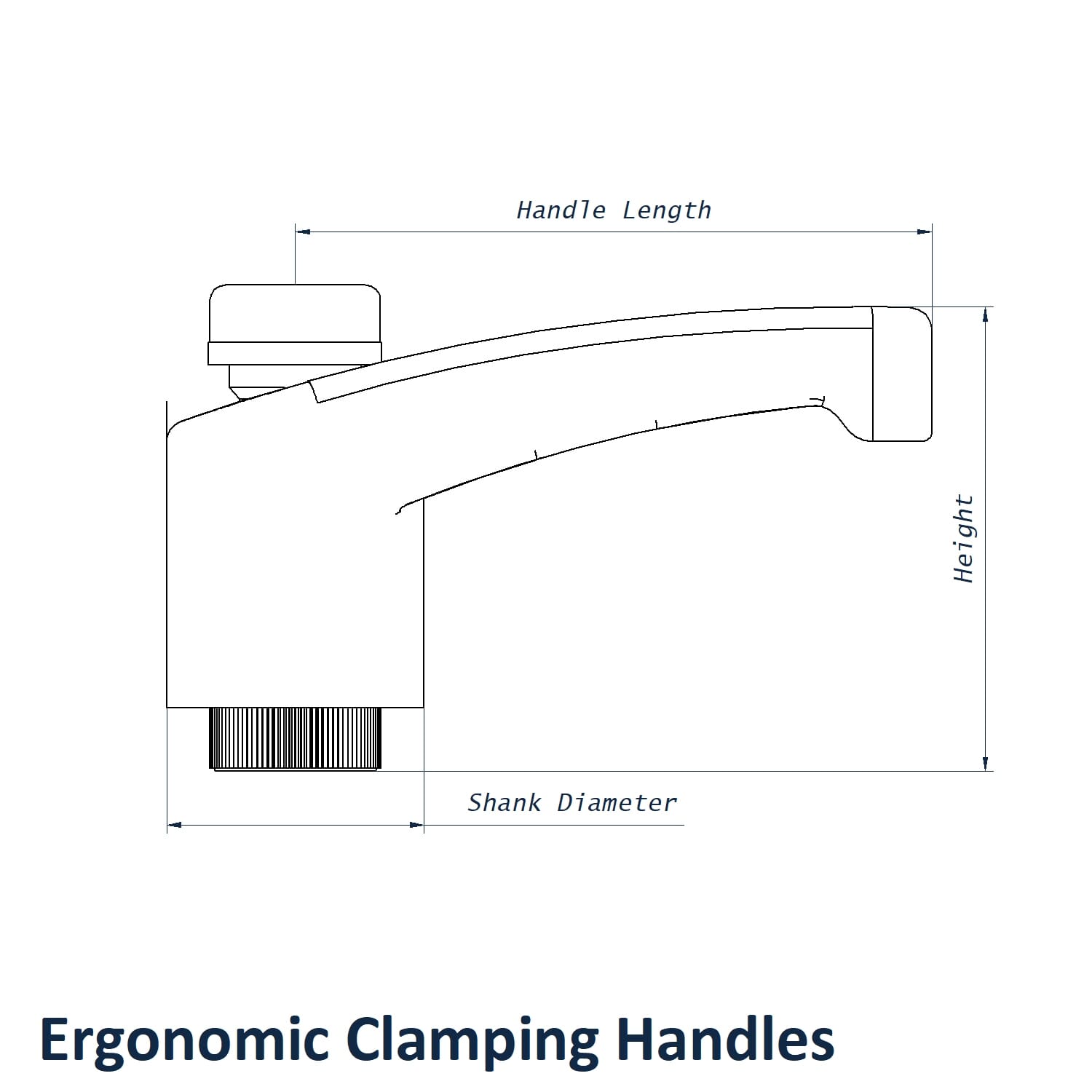

M6 Female Ergonomic Clamping Handle Dimensions
- Thread Size: M6
- Thread Type: Female
- Handle Length: 43mm
- Height: 29mm
- Shank Diameter: 12mm
- Handle Colour: Black
- Button Colour: Orange
- Handle Material: Nylon
- Thread Material: A2 Stainless Steel
Key Benefits
- 43mm handle length provides the stated lever size for hand tightening and adjustment.
- 12mm shank diameter provides the stated central boss dimension.
- A2 Stainless Steel threaded component provides the stated fixing material.
- Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
Compare our female ratchet clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
| Code | Thread Size | Thread Material | Height | Shank Diameter | Thread Type | Handle Material | Handle Length | Handle Colour | Button Colour | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW352 | M6 | A2 Stainless Steel | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW353 | M6 | BZP | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW354 | M6 | A2 Stainless Steel | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW355 | M6 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW356 | M8 | A2 Stainless Steel | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW357 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Orange | Black |
Checking...
|
|
| HW358 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW359 | M8 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW360 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
| HW361 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW362 | M10 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW363 | M10 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
