Ergonomic Clamping Handle - HW363

Product code: HW363
View All Specifications

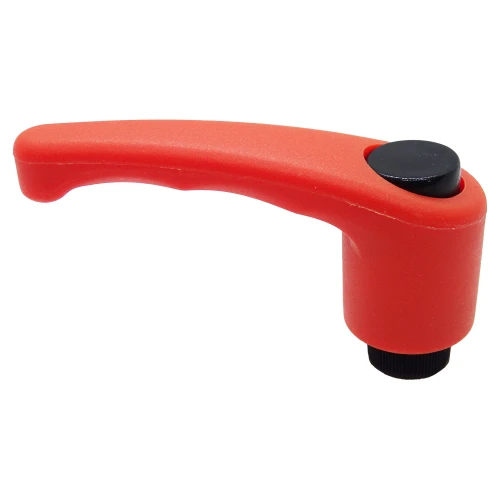

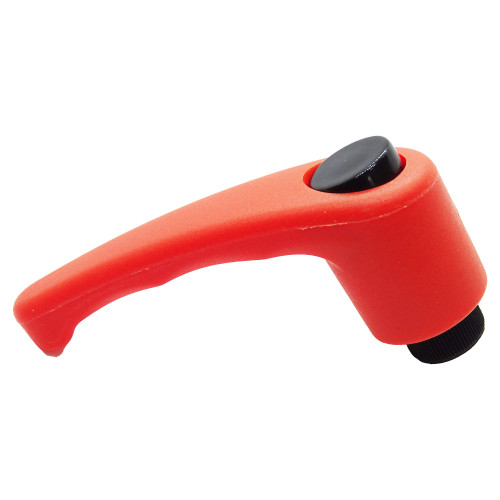

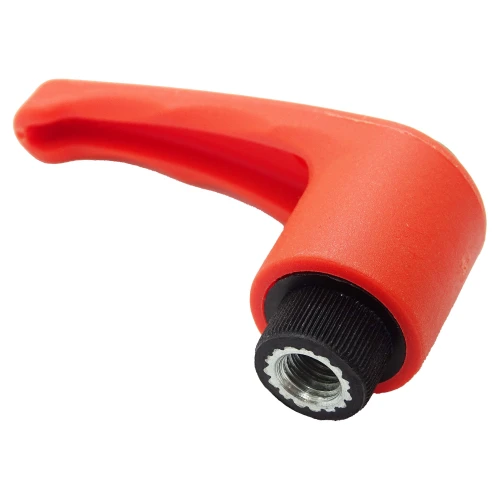

Orange M10 Ergonomic Clamping Handles
Orange M10 Ergonomic Clamping Handles
Orange M10 Ergonomic Clamping Handles
Orange M10 Ergonomic Clamping Handles
Orange M10 Ergonomic Clamping Handles
Orange M10 Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.76 £4.51
10 - 24 £3.05 £3.66
25 - 49 £2.82 £3.38
50 - 99 £2.44 £2.93
100 - 499 £1.98 £2.37
500 + £1.69 £2.03

£4.51 / each


Up to 708 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
708 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10
Thread Type Female
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material BZP
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 Female Ergonomic Clamping Handle | 83mm Handle | Orange/Black Nylon | BZP Thread

This M10 female ratchet clamping handle provides an internally threaded clamping point for test rigs, inspection fixtures and technical equipment. The 83mm handle length gives useful leverage while the indexed ratchet action allows the lever position to be reset when surrounding components restrict full rotation. The BZP threaded component provides a zinc-plated steel fixing for general indoor and suitably protected engineering applications.

What Are Ergonomic Clamping Handles?

Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.

Different applications may suit other adjustable clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

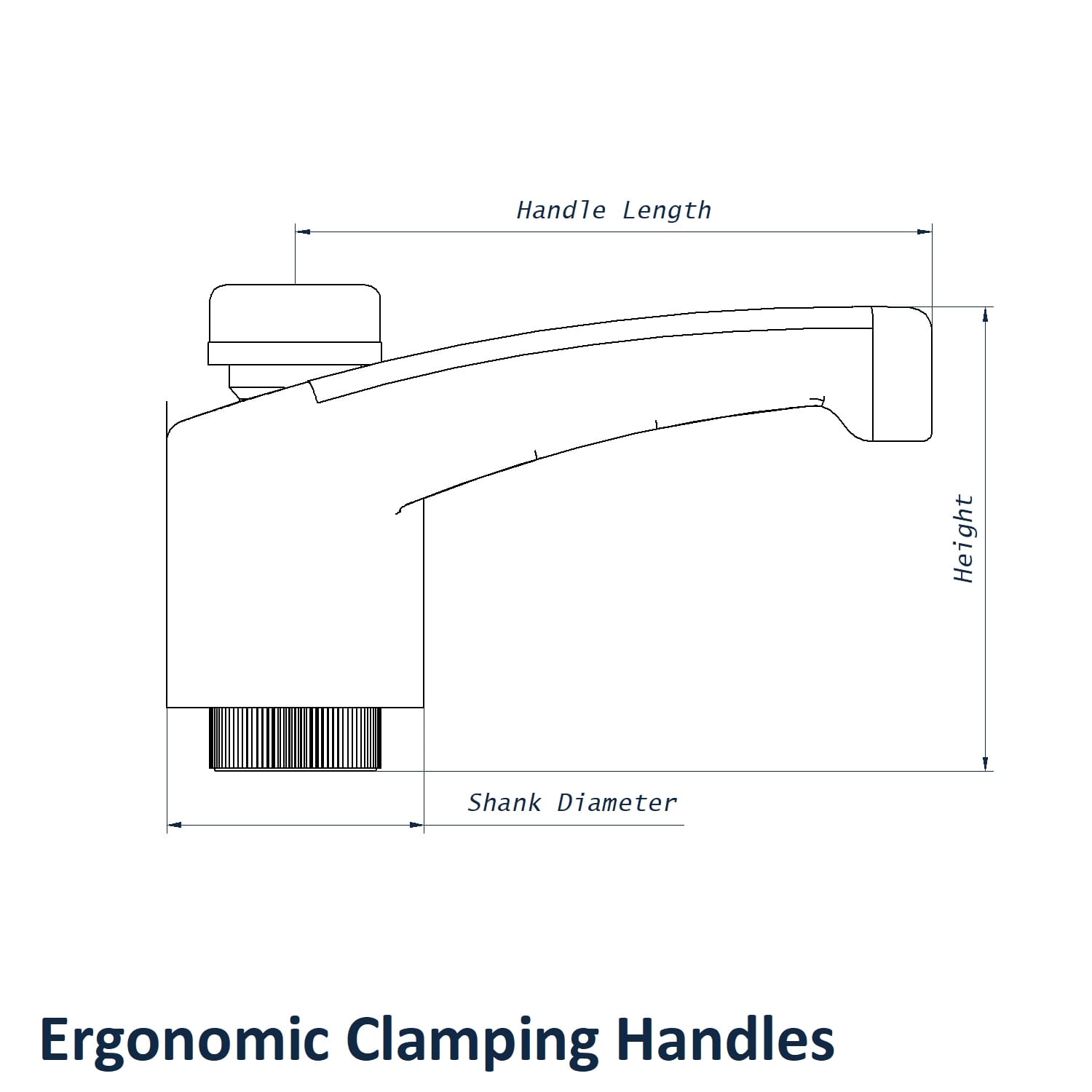

M10 Female Ergonomic Clamping Handle Dimensions

  • Thread Size: M10
  • Thread Type: Female
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: BZP

Key Benefits

  • 19mm shank diameter provides the stated central boss dimension.
  • BZP threaded component provides the stated fixing material.
  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
  • 83mm handle length provides the stated lever size for hand tightening and adjustment.

View our female indexed clamping handles in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
