Ergonomic Clamping Handle - HW361
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.57 | £4.28 |
| 10 - 24 | £2.90 | £3.48 |
| 25 - 49 | £2.67 | £3.21 |
| 50 - 99 | £2.32 | £2.78 |
| 100 - 499 | £1.88 | £2.25 |
| 500 + | £1.60 | £1.92 |
£4.28 / each
Product Specification
| Thread Size | M8 |
| Thread Type | Female |
| Handle Length | 83mm |
| Height | 47mm |
| Shank Diameter | 19mm |
| Handle Material | Nylon |
| Thread Material | BZP |
| Handle Colour | Black |
| Button Colour | Orange |
Frequently Bought Together
300mm Black Reusable Cable Ties (88mm Max Bundle) - 4.8mm Wide - 22kg Tensile Strength | 100pk
- Colour Black
- Width 4.8mm
- Max Bundle Diameter 88mm
- Length 300mm
- Minimum Tensile Strength 22kg
- Thread Size M8 x 20mm
- Thread Material Steel
- Height 38mm
- Shank Diameter 15mm
- Thread Type Male
- Handle Material Nylon
- Handle Length 65mm
- Handle Colour Orange
- Button Colour Black
- Material A2 Stainless Steel
- Handle Height 23.4mm
- Shoulder Diameter 11.9mm
- Shoulder Height 16.0mm
- Pin Diameter 8mm
- Grip Length 40mm
- Handle Diameter 20.6mm
- Pull Ring Diameter 15mm
- Exposed Length 8mm
- Knob Diameter 5.8mm
- Extended Ball Diameter 9.4mm
Total Price: £0.00

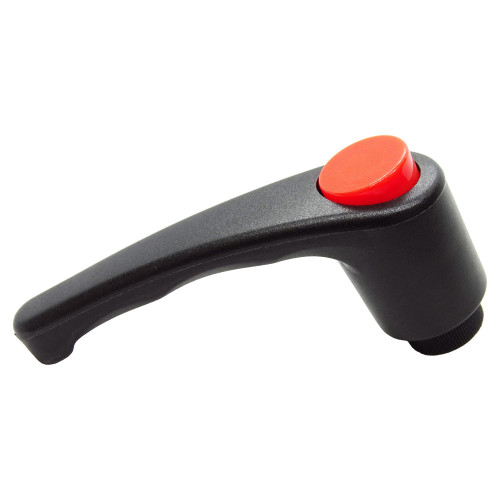

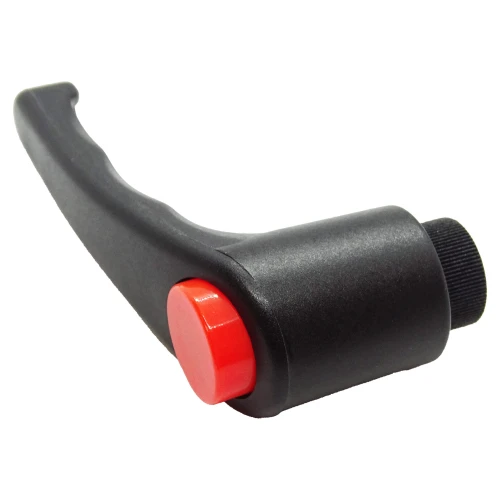

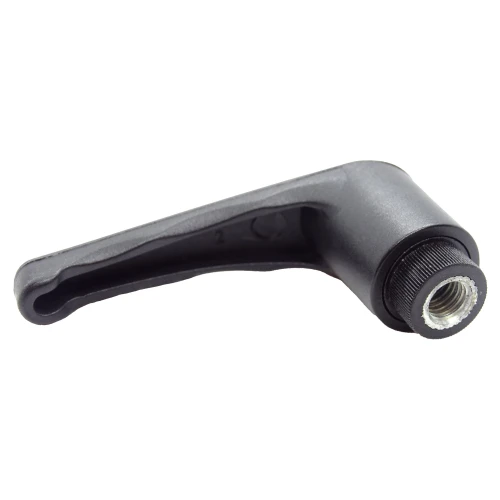

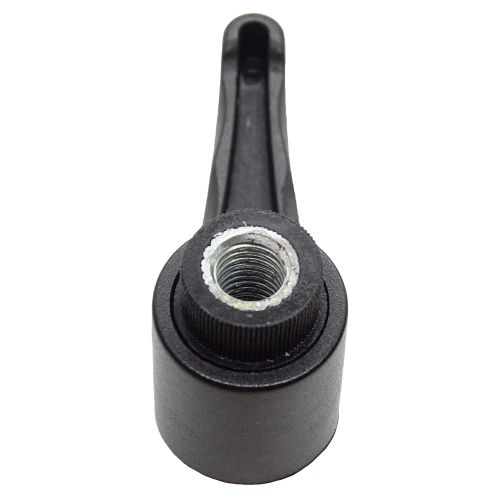

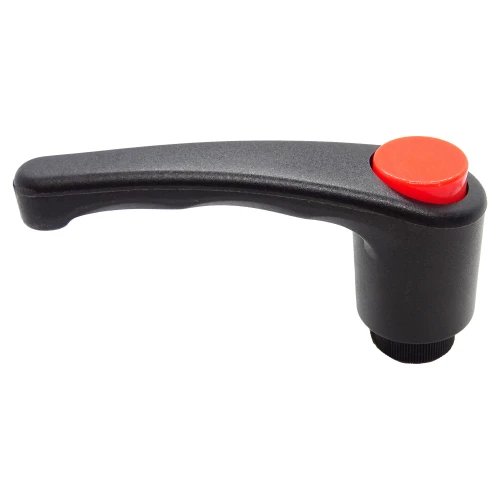

M8 Female Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | BZP Thread
For industrial guards, stops and positioning systems, this M8 ergonomic clamping lever combines an internal threaded connection with a 83mm ergonomic lever. The ratchet action is useful where the handle needs to be tightened then repositioned for clearance around nearby equipment. The BZP threaded component provides a zinc-plated steel fixing for general indoor and suitably protected engineering applications.
What Are Ergonomic Clamping Handles?
Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.
For additional manual adjustment options, compare our wider clamping handles selection across several handle styles and materials.
Common Applications
- Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
- Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
- Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
- Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

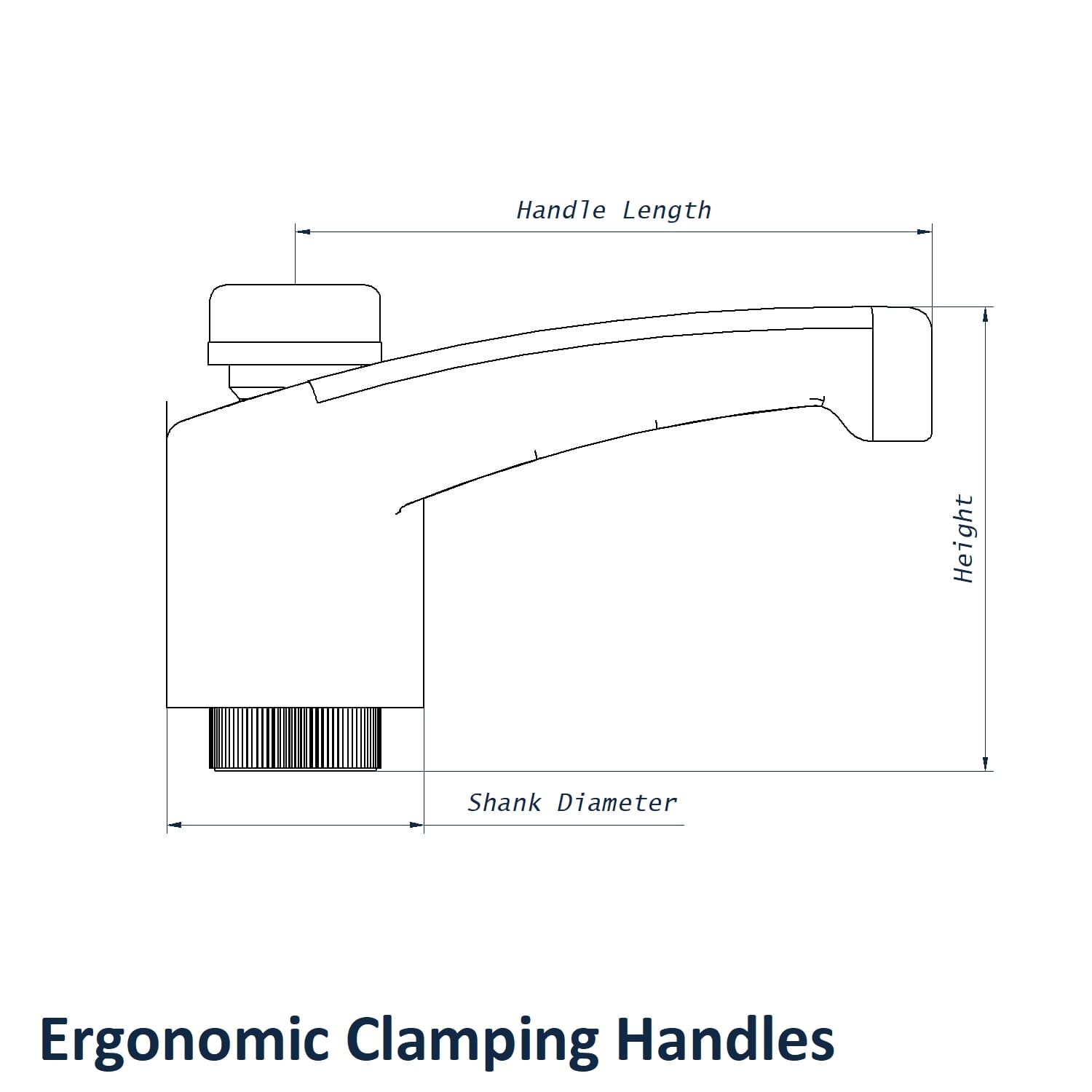

M8 Female Ergonomic Clamping Handle Dimensions
- Thread Size: M8
- Thread Type: Female
- Handle Length: 83mm
- Height: 47mm
- Shank Diameter: 19mm
- Handle Colour: Black
- Button Colour: Orange
- Handle Material: Nylon
- Thread Material: BZP
Key Benefits
- 19mm shank diameter provides the stated central boss dimension.
- BZP threaded component provides the stated fixing material.
- Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
- 83mm handle length provides the stated lever size for hand tightening and adjustment.
Compare our female ratchet clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
| Code | Thread Size | Thread Material | Height | Shank Diameter | Thread Type | Handle Material | Handle Length | Handle Colour | Button Colour | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW350 | M5 | A2 Stainless Steel | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW351 | M5 | BZP | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW352 | M6 | A2 Stainless Steel | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW353 | M6 | BZP | 29mm | 12mm | Female | Nylon | 43mm | Black | Orange |
Checking...
|
|
| HW354 | M6 | A2 Stainless Steel | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW355 | M6 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW356 | M8 | A2 Stainless Steel | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW357 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Orange | Black |
Checking...
|
|
| HW358 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW359 | M8 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW360 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
| HW361 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
