Ergonomic Clamping Handle - HW362

Product code: HW362
View All Specifications

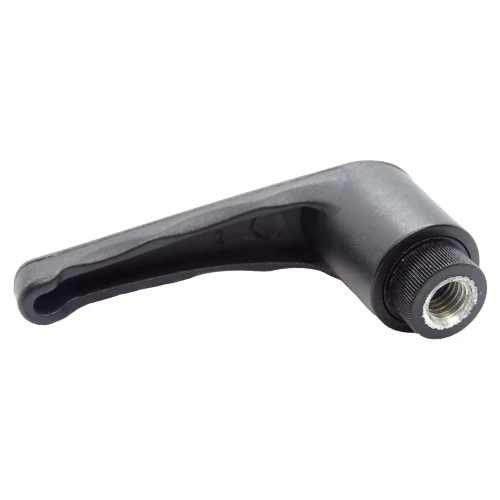

Black M10 Ergonomic Clamping Handles

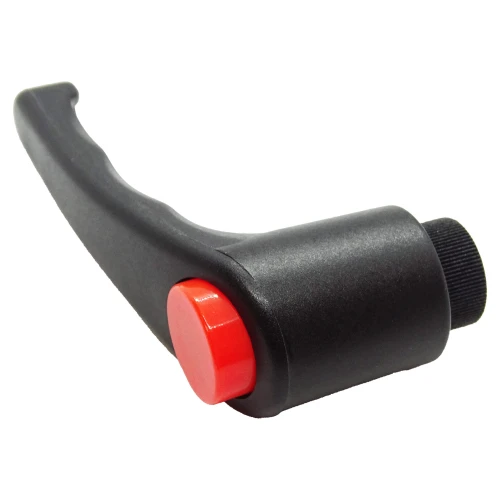

Black M10 Ergonomic Clamping Handles

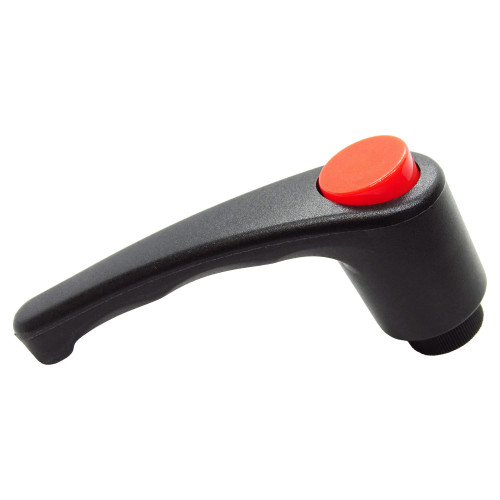

Black M10 Ergonomic Clamping Handles
Black M10 Ergonomic Clamping Handles

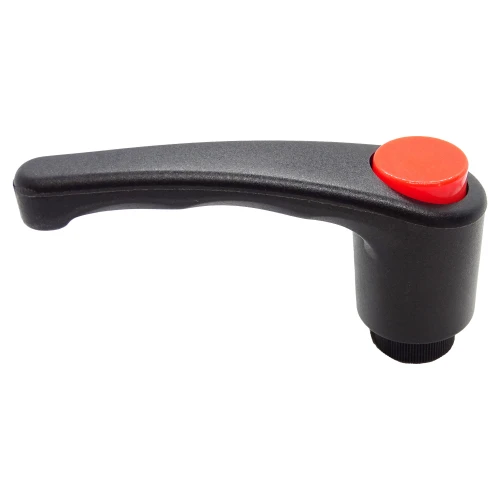

Black M10 Ergonomic Clamping Handles

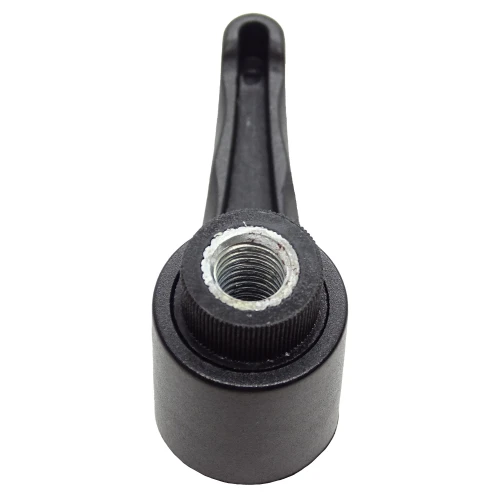

Black M10 Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £4.83 £5.80
10 - 24 £3.92 £4.71
25 - 49 £3.62 £4.35
50 - 99 £3.14 £3.77
100 - 499 £2.53 £3.04
500 + £2.17 £2.61

£5.80 / each


Up to 636 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
636 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10
Thread Type Female
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material A2 Stainless Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 Female Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | A2 Stainless Steel Thread

Made for repeated manual adjustment, this M10 ergonomic clamping lever uses a female threaded connection for mounting onto a compatible fixing. Its 47mm overall height and 83mm handle length provide the stated operating profile. The A2 Stainless Steel threaded component provides good corrosion resistance for suitable engineering and equipment applications.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

Different applications may suit other machine clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

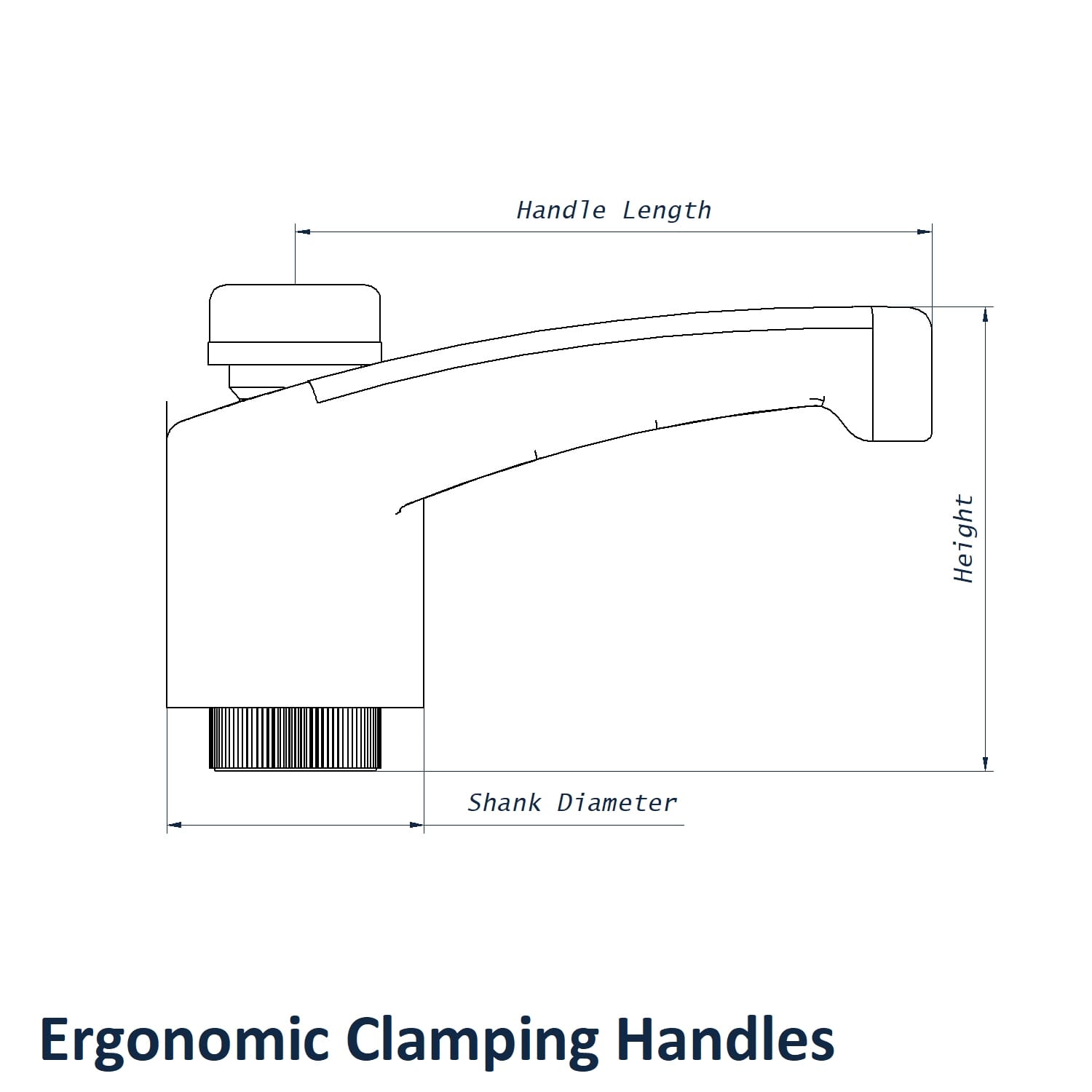

M10 Female Ergonomic Clamping Handle Dimensions

  • Thread Size: M10
  • Thread Type: Female
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: A2 Stainless Steel

Key Benefits

  • Black Nylon handle with Orange button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M10 female thread provides the specified connection for the clamping assembly.
  • 47mm overall height defines the installed handle profile.

Compare our female ratchet clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
