Ergonomic Clamping Handle - HW351

Product code: HW351
View All Specifications

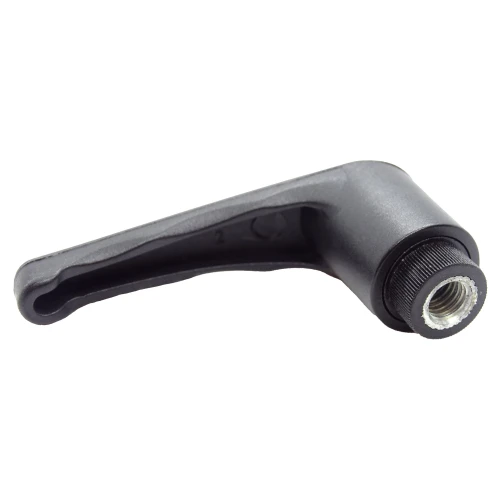

Black M5 Ergonomic Clamping Handles

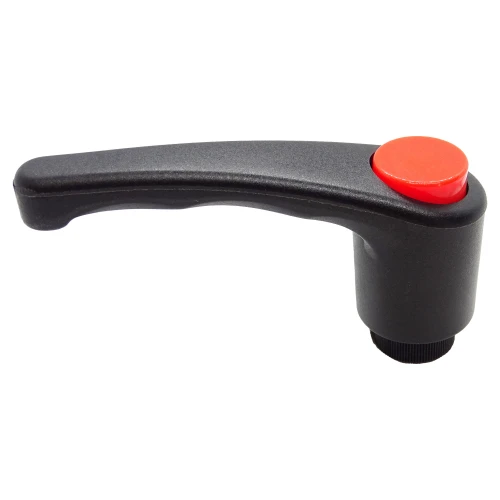

Black M5 Ergonomic Clamping Handles

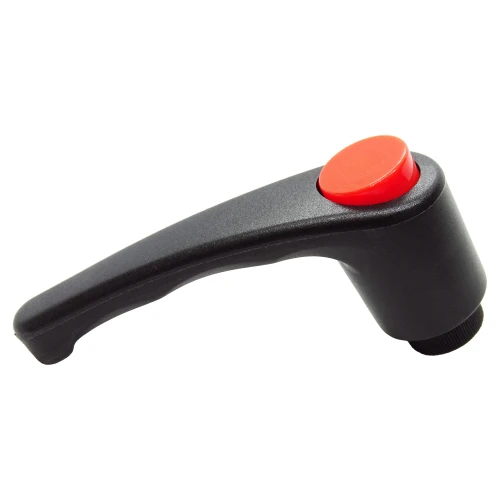

Black M5 Ergonomic Clamping Handles

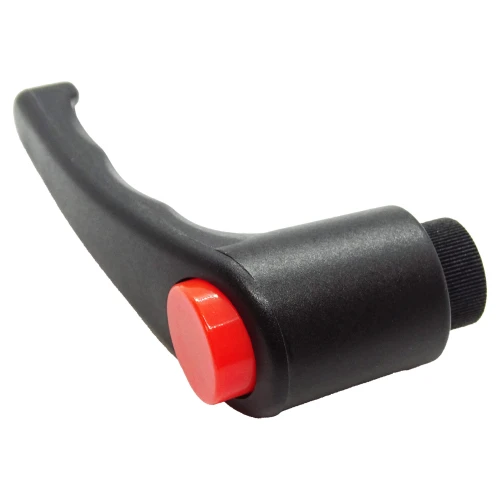

Black M5 Ergonomic Clamping Handles
Black M5 Ergonomic Clamping Handles
Black M5 Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.06 £2.47
10 - 24 £1.68 £2.01
25 - 49 £1.54 £1.85
50 - 99 £1.33 £1.60
100 - 499 £1.08 £1.30
500 + £0.93 £1.11

£2.47 / each


Up to 558 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
558 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M5
Thread Type Female
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material BZP
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M5 Female Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | BZP Thread

Made for repeated manual adjustment, this M5 female ergonomic clamping handle uses a female threaded connection for mounting onto a compatible fixing. Its 29mm overall height and 43mm handle length provide the stated operating profile. The BZP threaded component provides a zinc-plated steel fixing for general indoor and suitably protected engineering applications.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

Different applications may suit other machine clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

M5 Female Ergonomic Clamping Handle Dimensions

  • Thread Size: M5
  • Thread Type: Female
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: BZP

Key Benefits

  • Black Nylon handle with Orange button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M5 female thread provides the specified connection for the clamping assembly.
  • 29mm overall height defines the installed handle profile.

Compare our ergonomic clamping levers for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
