Ergonomic Clamping Handle - HW366

Product code: HW366
View All Specifications

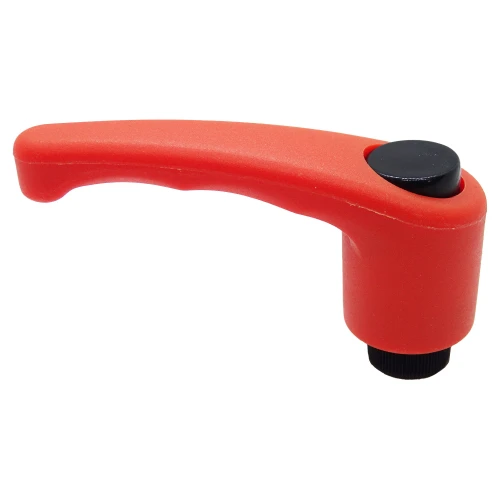

Orange M12 Ergonomic Clamping Handles

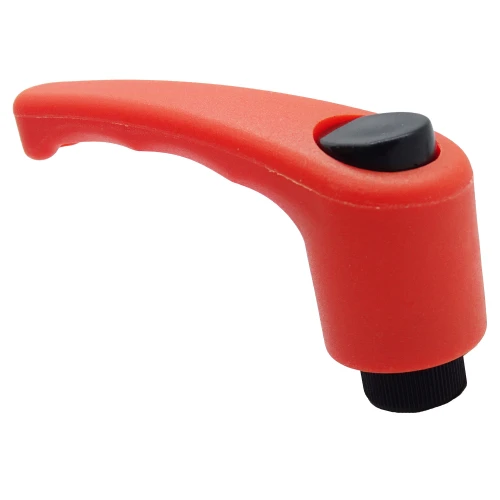

Orange M12 Ergonomic Clamping Handles

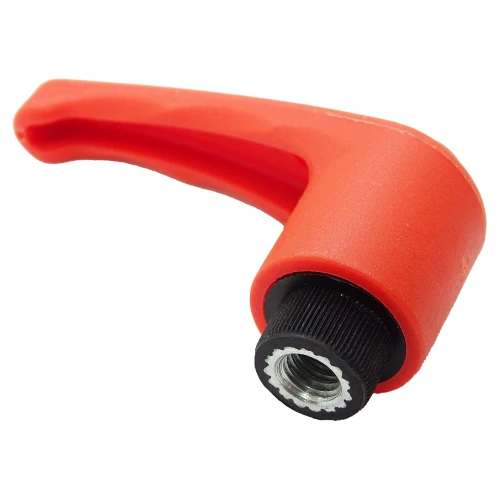

Orange M12 Ergonomic Clamping Handles

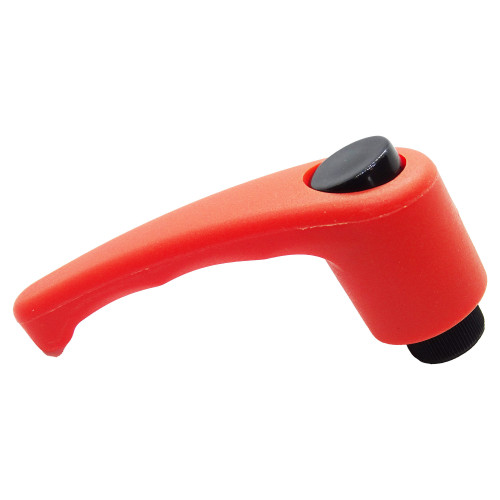

Orange M12 Ergonomic Clamping Handles

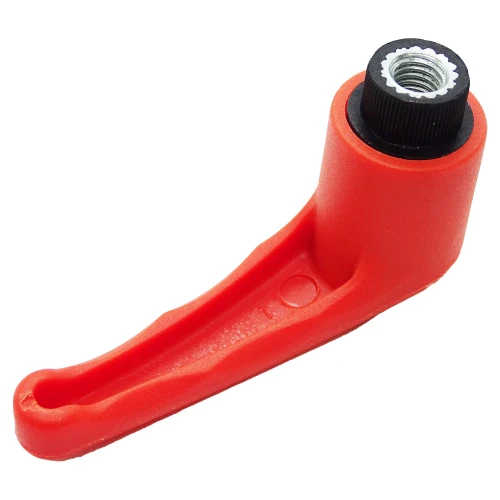

Orange M12 Ergonomic Clamping Handles
Orange M12 Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.77 £4.53
10 - 24 £3.07 £3.68
25 - 49 £2.83 £3.39
50 - 99 £2.45 £2.94
100 - 499 £1.98 £2.38
500 + £1.70 £2.04

£4.53 / each


Up to 960 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
960 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M12
Thread Type Female
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material BZP
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M12 Female Ergonomic Clamping Handle | 83mm Handle | Orange/Black Nylon | BZP Thread

This M12 ergonomic clamping lever provides an internally threaded clamping point for industrial guards, stops and positioning systems. The 83mm handle length gives useful leverage while the indexed ratchet action allows the lever position to be reset when surrounding components restrict full rotation. The BZP threaded component provides a zinc-plated steel fixing for general indoor and suitably protected engineering applications.

What Are Ergonomic Clamping Handles?

Adjustable Ergonomic Clamping Handles are used on machinery, jigs and fixtures where components need to be locked, released or repositioned by hand. The indexed mechanism supports repeated adjustment in confined or frequently accessed locations.

For other materials, handle profiles and thread configurations, see our wider adjustable clamping handles selection for machinery, fixtures and general industrial adjustment.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

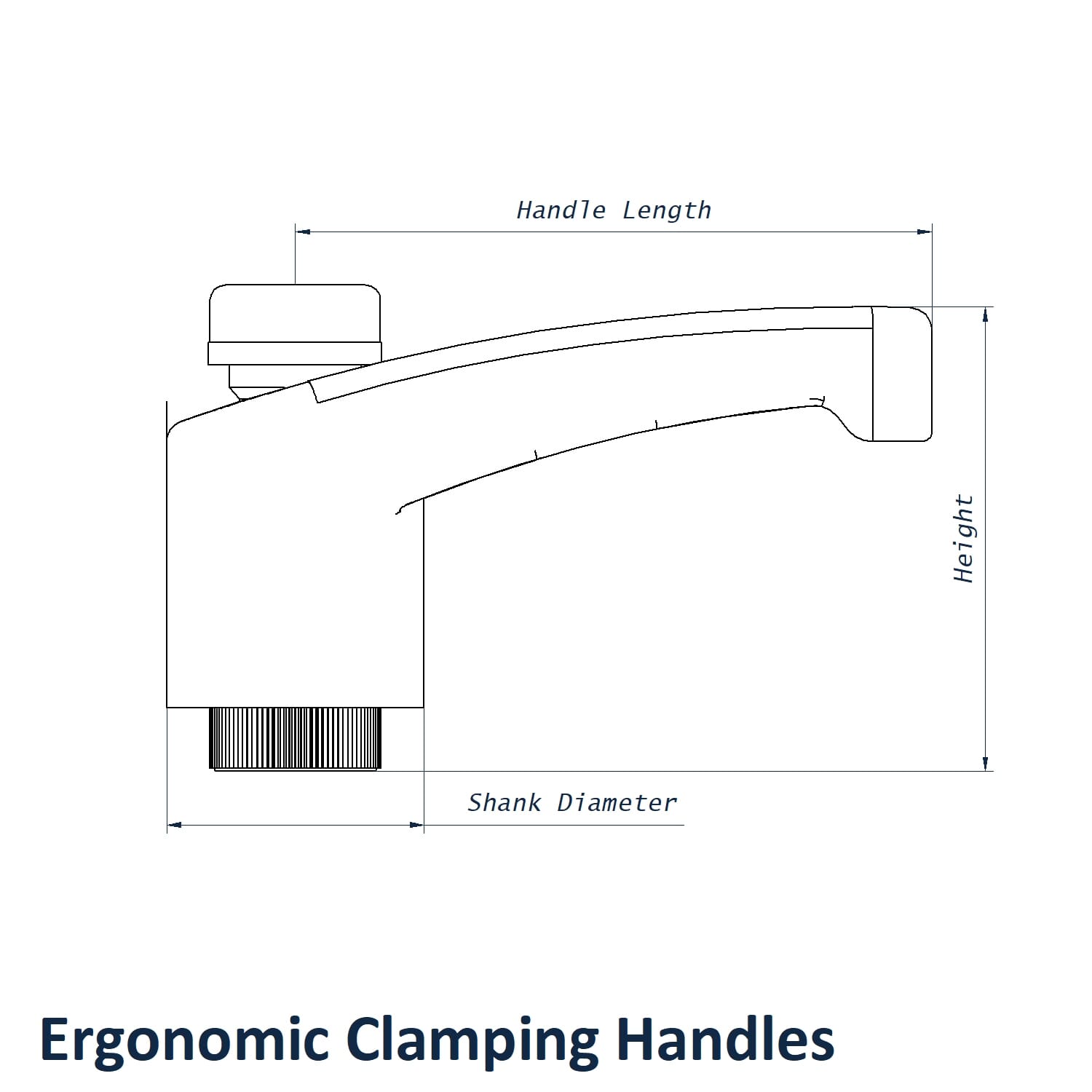

M12 Female Ergonomic Clamping Handle Dimensions

  • Thread Size: M12
  • Thread Type: Female
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: BZP

Key Benefits

  • M12 female thread provides the specified connection for the clamping assembly.
  • 47mm overall height defines the installed handle profile.
  • Orange Nylon handle with Black button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.

Compare our ergonomic clamping levers for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
