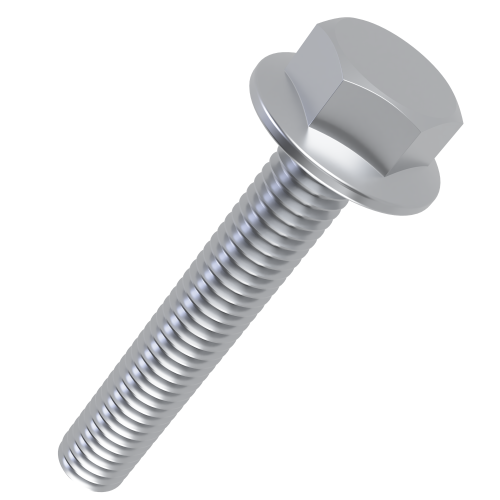

M8 x 35mm Hex (Non Serrated) Flange Bolt (DIN 6921) - 8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.26 | £0.31 |
| 100 - 999 | £0.18 | £0.22 |
| 1000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.13 | £0.16 |
Product Specification
| Thread Size | M8 |
| Thread Length | 35mm |
| Pitch | 1.25mm |
| Material | 8.8 Steel BZP |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 35mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
For commercial equipment, this M8 x 35mm flanged hex head bolt gives a tidy DIN 6921 fixing with a broad 18mm flange under the head. The 8.8 Steel BZP construction offers high tensile strength with bright zinc plated surface protection for dry or sheltered use.
This one-piece flange design reduces loose hardware so the fastener can seat cleanly against flat or slotted components. Its 8.1mm head height and 18mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Commercial Equipment: assembling serviceable commercial equipment and fitted framework.
- Frame Assembly: keeps installation simple where bolts need to be removed during servicing.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.

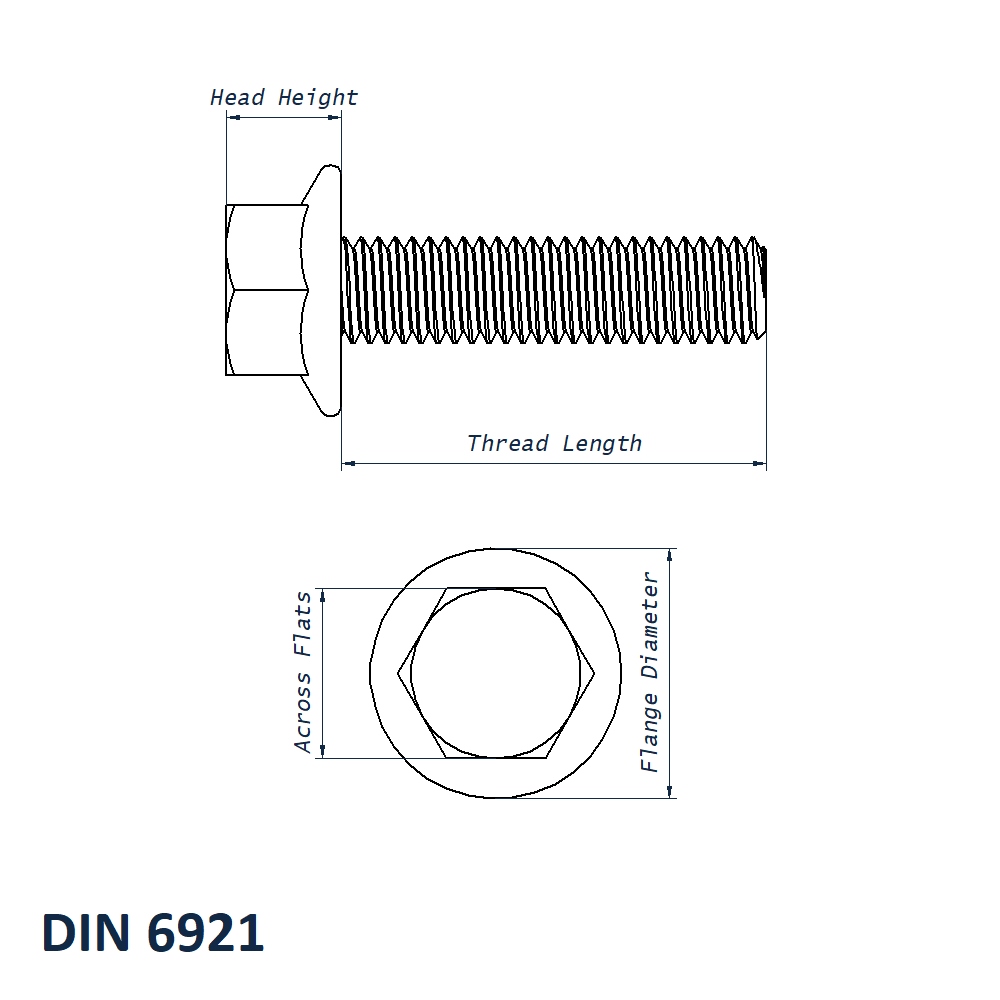

M8 x 35mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 35mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Buying Guidance
Check the thread size, thread length and pitch before ordering to ensure the bolt matches the mating nut or threaded hole. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
