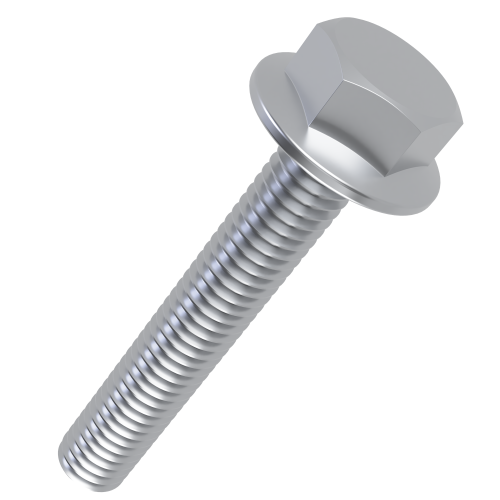

M8 x 16mm Hex (Non Serrated) Flange Bolt (DIN 6921) - 8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.18 | £0.22 |
| 100 - 999 | £0.12 | £0.15 |
| 1000 - 4999 | £0.10 | £0.12 |
| 5000 + | £0.09 | £0.11 |
Product Specification
| Thread Size | M8 |
| Thread Length | 16mm |
| Pitch | 1.25mm |
| Material | 8.8 Steel BZP |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 16mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
Use this M8 x 16mm 8.8 Steel BZP flanged hex head bolt when specifying repeatable fixings for OEM assemblies require a hex head fastener with an integral bearing face. The 13mm across flats drive size supports installation with standard tooling.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 8.1mm head height and 18mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Oem Manufacture: specifying repeatable fixings for OEM assemblies.
- Frame Assembly: gives buyers a DIN 6921 reference point for consistent supply.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M8 x 16mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 16mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Installation Advice
Use the across flats value to confirm spanner or socket access before installing inside frames or enclosed machinery. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
