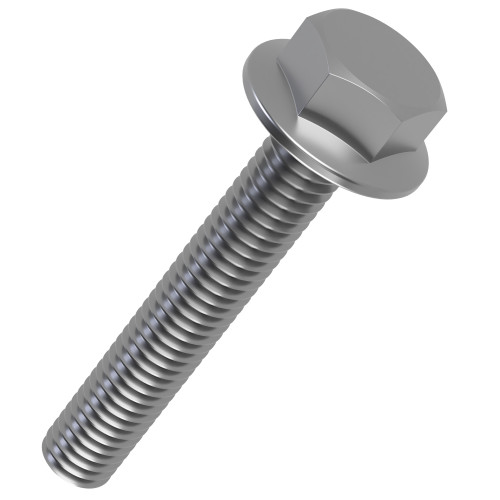

M10 x 100mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £8.74 | £10.49 |
| 10 - 24 | £6.99 | £8.39 |
| 25 - 49 | £5.24 | £6.29 |
| 50 - 99 | £4.38 | £5.25 |
| 100 - 499 | £3.93 | £4.72 |
| 500 - 999 | £3.50 | £4.20 |
| 1000 + | £2.62 | £3.15 |
Product Specification
| Thread Size | M10 |
| Thread Length | 100mm |
| Pitch | 1.5mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 15mm |
| Head Height | 9.2mm |
| Flange Diameter | 22.3mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M10 x 100mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
The M10 x 100mm A4-70 Stainless Steel flanged hex head bolt is suited to conveyor frames where a standard hex bolt would need extra load spreading. Its 100mm thread length, 1.5mm pitch and 9.2mm head height make it easy to match with existing DIN 6921 fastener specifications.
Its broad under-head flange helps distribute pressure and can reduce assembly time where a loose washer is not required by the design. With 1.5mm pitch and 15mm across flats, this bolt is suited to buyers who need clear technical matching for procurement or maintenance work.
Common Applications
- Conveyor Frames: joining brackets on conveyor frames and handling systems.
- Assembly Lines: keeping fastening work efficient with standard hex tooling.
- Bracket Fixing: supports firm alignment where vibration or movement can affect standard fasteners.
- Equipment Repairs: matching existing flange bolt dimensions during replacement.
M10 x 100mm Flanged Hex Head Bolt Dimensions
- Thread Size: M10
- Thread Length: 100mm
- Pitch: 1.5mm
- Across Flats: 15mm
- Head Height: 9.2mm
- Flange Diameter: 22.3mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
