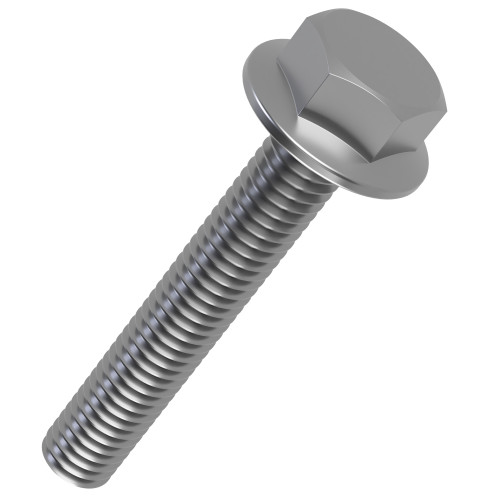

M10 x 20mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.73 | £2.07 |
| 10 - 24 | £1.38 | £1.65 |
| 25 - 49 | £1.03 | £1.24 |
| 50 - 99 | £0.86 | £1.03 |
| 100 - 499 | £0.78 | £0.93 |
| 500 - 999 | £0.69 | £0.83 |
| 1000 + | £0.52 | £0.62 |
Product Specification
| Thread Size | M10 |
| Thread Length | 20mm |
| Pitch | 1.5mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 15mm |
| Head Height | 9.2mm |
| Flange Diameter | 22.3mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M10 x 20mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M10 x 20mm DIN 6921 flanged hex head bolt is specified for mounting guides, sensor brackets and framework on packaging machinery. The A2-70 Stainless Steel body, 1.5mm pitch and 22.3mm flange diameter make it suitable for plant equipment, workshop builds and stainless steel assemblies.
The DIN 6921 form combines a hex drive with a wider seating face, helping to spread clamp load and reduce surface marking on brackets, plates or fabricated parts. The A2-70 stainless steel material gives 70 grade tensile performance while the DIN 6921 specification keeps the fastener compatible with standard metric assemblies.
Common Applications
- Packaging Machinery: mounting guides, sensor brackets and framework on packaging machinery.
- Machinery Builds: offers a neat fixing point for equipment that needs regular adjustment.
- Maintenance Work: replacing worn fixings during planned servicing.
- Fabrication: creating repeatable DIN 6921 joints across metal assemblies.
M10 x 20mm Flanged Hex Head Bolt Dimensions
- Thread Size: M10
- Thread Length: 20mm
- Pitch: 1.5mm
- Across Flats: 15mm
- Head Height: 9.2mm
- Flange Diameter: 22.3mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Choose stainless steel where corrosion resistance is more important than the lowest unit cost. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
