M8 x 30mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.96 | £2.35 |
| 10 - 24 | £1.57 | £1.88 |
| 25 - 49 | £1.18 | £1.41 |
| 50 - 99 | £0.97 | £1.17 |
| 100 - 499 | £0.88 | £1.06 |
| 500 - 999 | £0.78 | £0.94 |
| 1000 + | £0.58 | £0.70 |
Product Specification
| Thread Size | M8 |
| Thread Length | 30mm |
| Pitch | 1.25mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 30mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
This M8 x 30mm DIN 6921 flanged hex head bolt fits applications involving mounting guides, sensor brackets and framework on packaging machinery. The A4-70 Stainless Steel body, 1.25mm pitch and 18mm flange diameter make it suitable for outdoor equipment, marine-adjacent assemblies and stainless fabrications.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 8.1mm head height and 18mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Packaging Machinery: mounting guides, sensor brackets and framework on packaging machinery.
- Frame Assembly: offers a neat fixing point for equipment that needs regular adjustment.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.

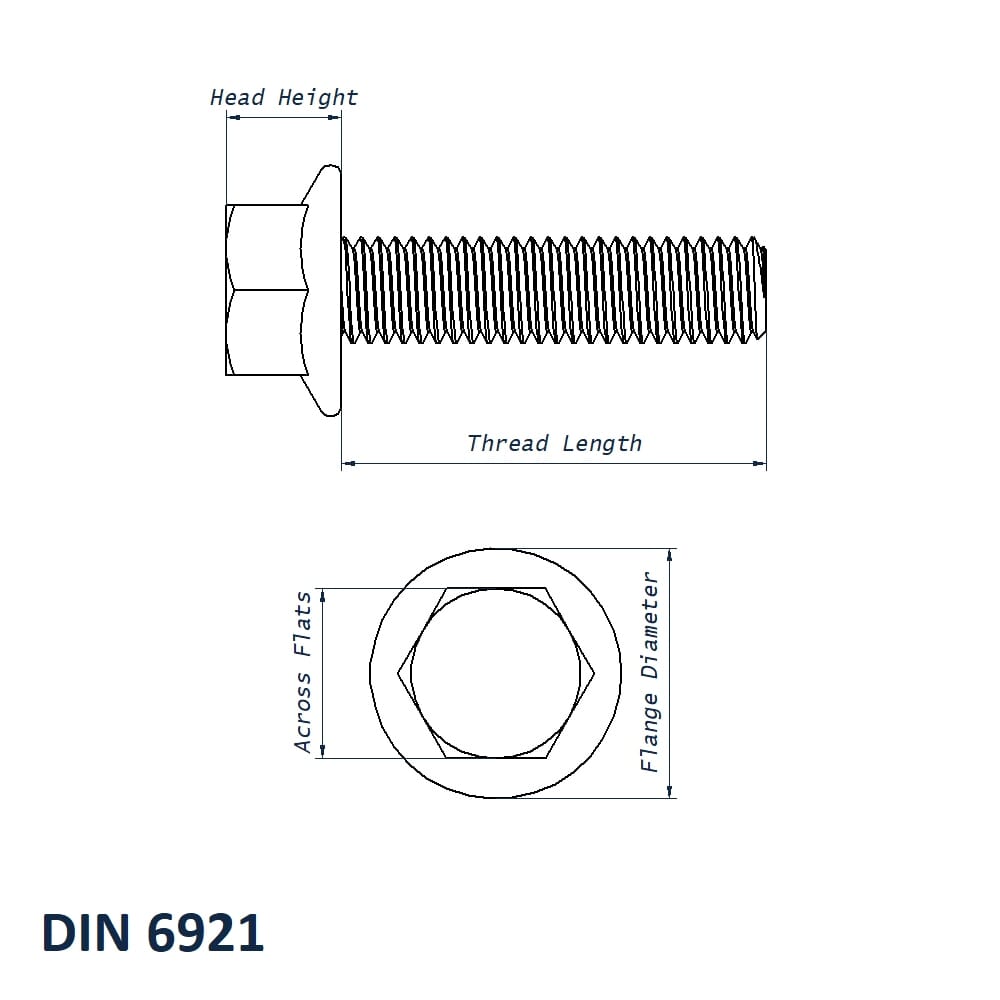

M8 x 30mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 30mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Confirm the flange diameter if the fixing surface is narrow, slotted or close to an edge. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
