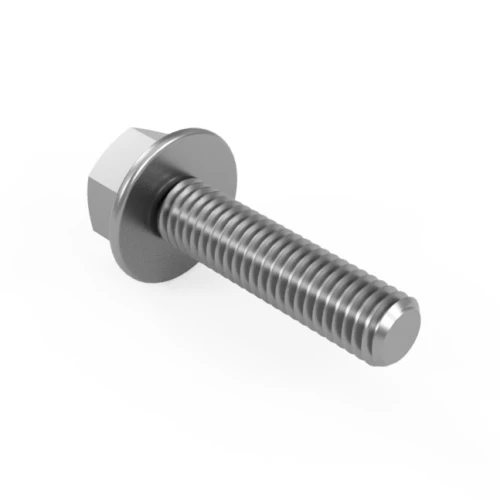

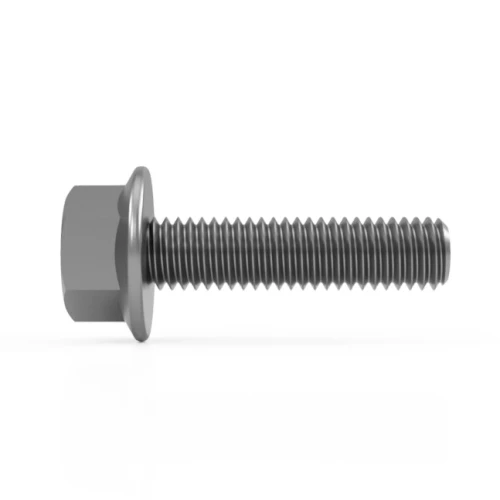

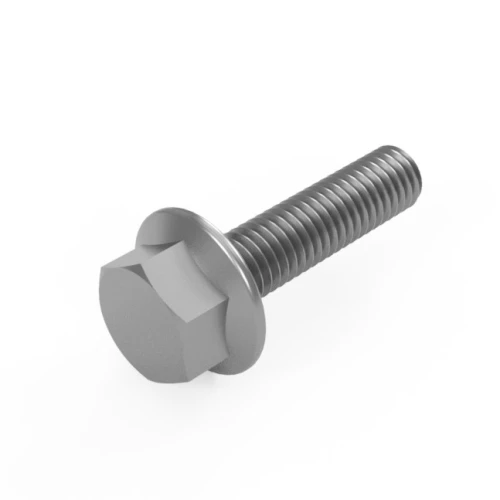

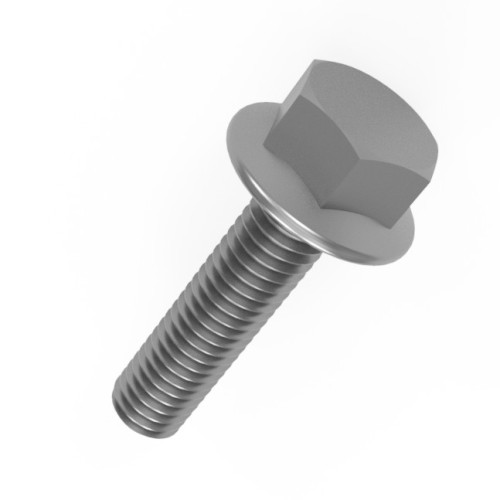

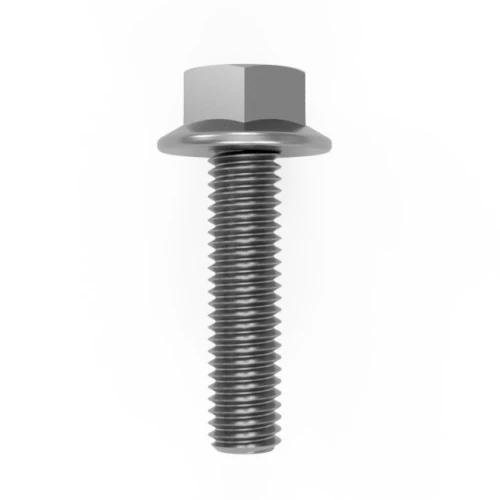

M8 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.02 | £1.22 |
| 10 - 24 | £0.82 | £0.98 |
| 25 - 49 | £0.61 | £0.73 |
| 50 - 99 | £0.51 | £0.61 |
| 100 - 499 | £0.46 | £0.55 |
| 500 - 999 | £0.41 | £0.49 |
| 1000 + | £0.31 | £0.37 |
Product Specification
| Thread Size | M8 |
| Thread Length | 12mm |
| Pitch | 1.25mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 12mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M8 x 12mm flanged hex head bolt in A2-70 Stainless Steel supports installing brackets on stainless processing frames and washdown equipment. Manufactured to DIN 6921, it uses a 18mm flange diameter and 13mm across flats to give a practical hex driven fixing for food processing equipment. For M8 bolt enquiries that need DIN standard dimensions, this flanged version is a useful choice for repeatable engineering specification.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The A2-70 Stainless Steel finish should be matched to the working environment before installation.
Common Applications
- Food Processing Equipment: installing brackets on stainless processing frames and washdown equipment.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: supports tidy fastening where hygiene and maintenance access matter.
- Trade Maintenance: supporting quick specification from thread size and length.

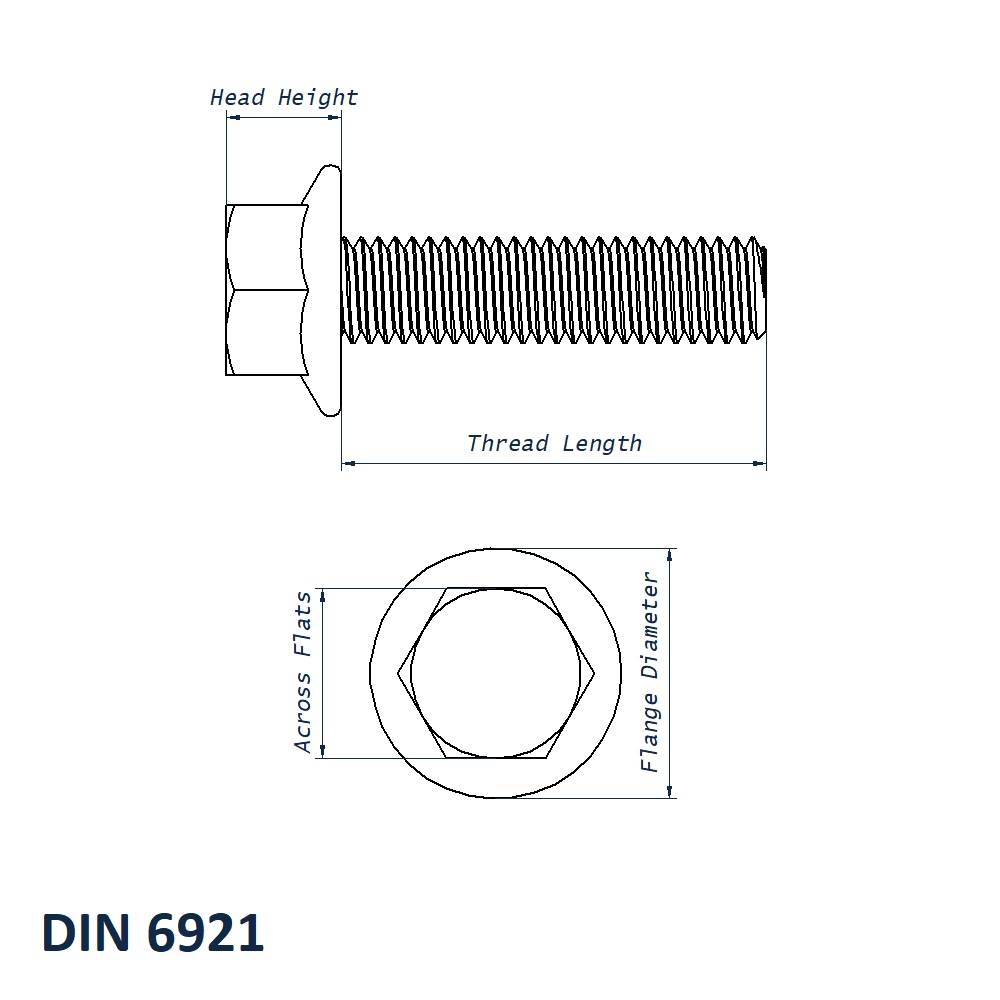

M8 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 12mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Check the thread size, thread length and pitch before ordering to ensure the bolt matches the mating nut or threaded hole. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
