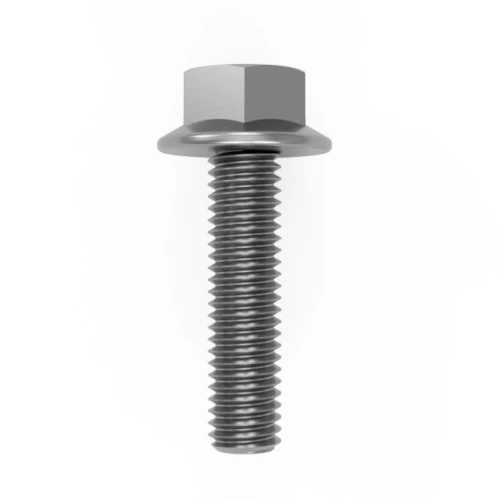

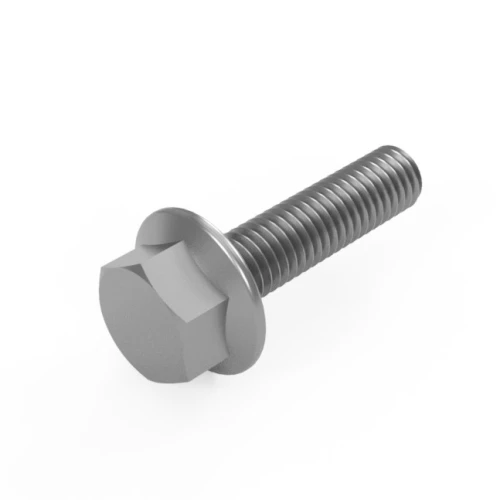

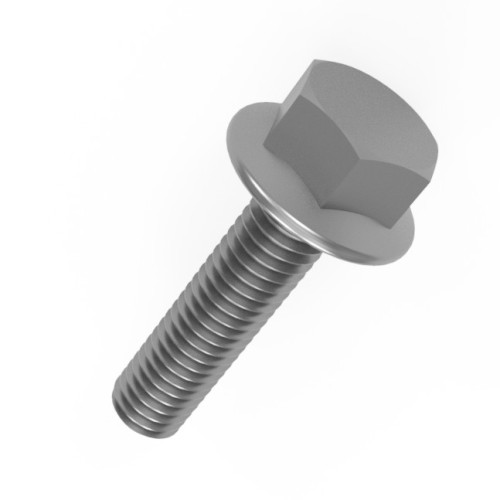

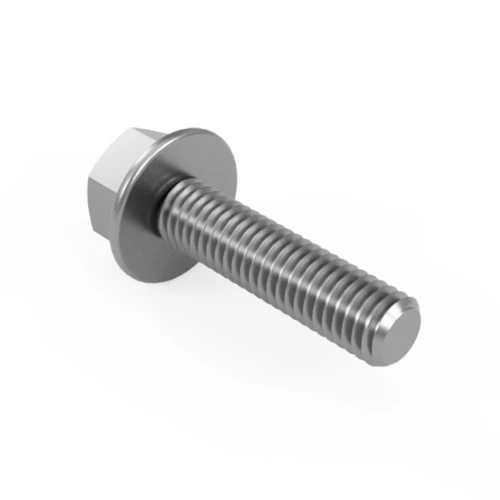

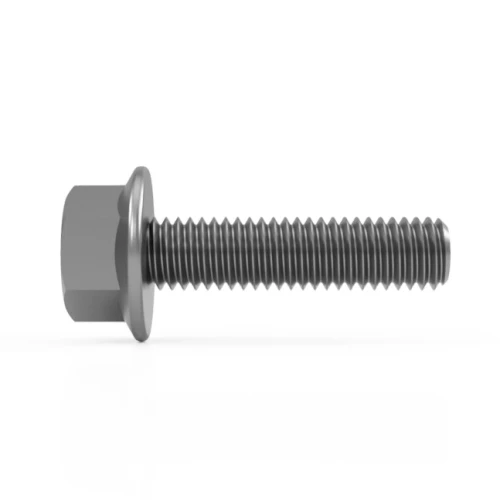

M8 x 30mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.96 | £1.15 |
| 10 - 24 | £0.77 | £0.92 |
| 25 - 49 | £0.57 | £0.69 |
| 50 - 99 | £0.47 | £0.57 |
| 100 - 499 | £0.43 | £0.52 |
| 500 - 999 | £0.38 | £0.46 |
| 1000 + | £0.28 | £0.34 |
Product Specification
| Thread Size | M8 |
| Thread Length | 30mm |
| Pitch | 1.25mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 30mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
Use this M8 x 30mm A2-70 Stainless Steel flanged hex head bolt when fastening light steelwork, rails and support brackets require a hex head fastener with an integral bearing face. The 13mm across flats drive size supports installation with standard tooling.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The A2-70 Stainless Steel finish should be matched to the working environment before installation.
Common Applications
- Fabricated Steelwork: fastening light steelwork, rails and support brackets.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: reduces the need for a separate washer in many flat surface applications.
- Trade Maintenance: supporting quick specification from thread size and length.

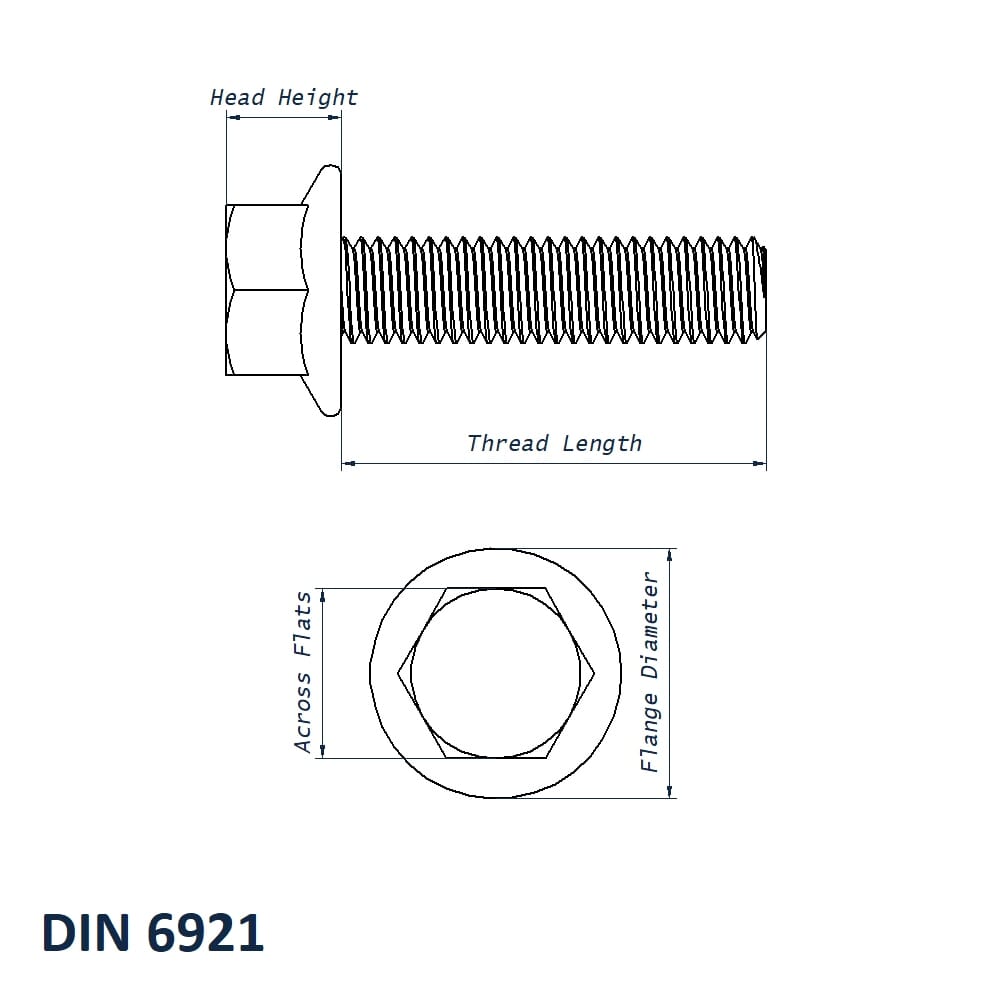

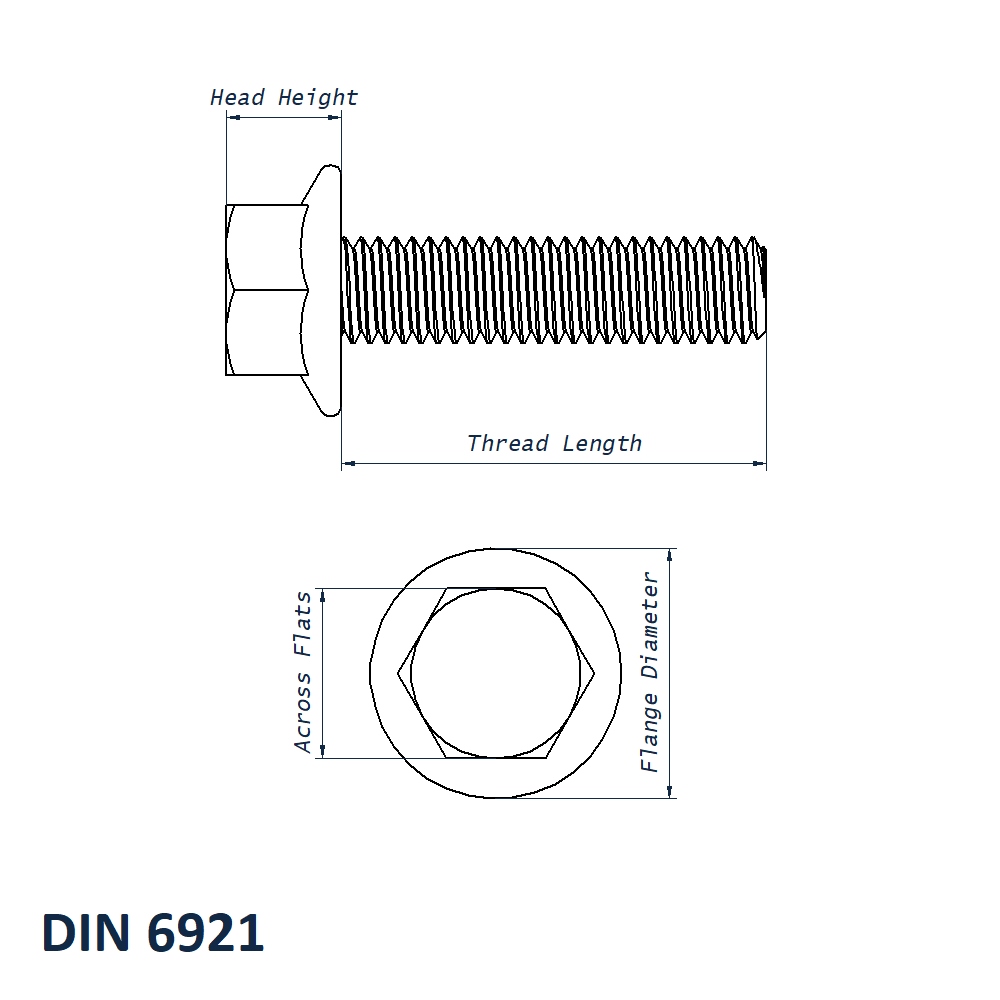

M8 x 30mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 30mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Buying Guidance
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
