M8 x 20mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.55 | £1.86 |
| 10 - 24 | £1.24 | £1.49 |
| 25 - 49 | £0.93 | £1.11 |
| 50 - 99 | £0.78 | £0.93 |
| 100 - 499 | £0.70 | £0.84 |
| 500 - 999 | £0.62 | £0.74 |
| 1000 + | £0.47 | £0.56 |
Product Specification
| Thread Size | M8 |
| Thread Length | 20mm |
| Pitch | 1.25mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 20mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
This M8 x 20mm flanged hex head bolt in A4-70 Stainless Steel is commonly selected for securing machine guards, cover plates and service panels. Manufactured to DIN 6921, it uses a 18mm flange diameter and 13mm across flats to give a practical hex driven fixing for machinery guarding.
This one-piece flange design reduces loose hardware so the fastener can seat cleanly against flat or slotted components. Its 8.1mm head height and 18mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Machinery Guarding: securing machine guards, cover plates and service panels.
- Frame Assembly: helps spread clamp load around access points that may be removed during maintenance.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.

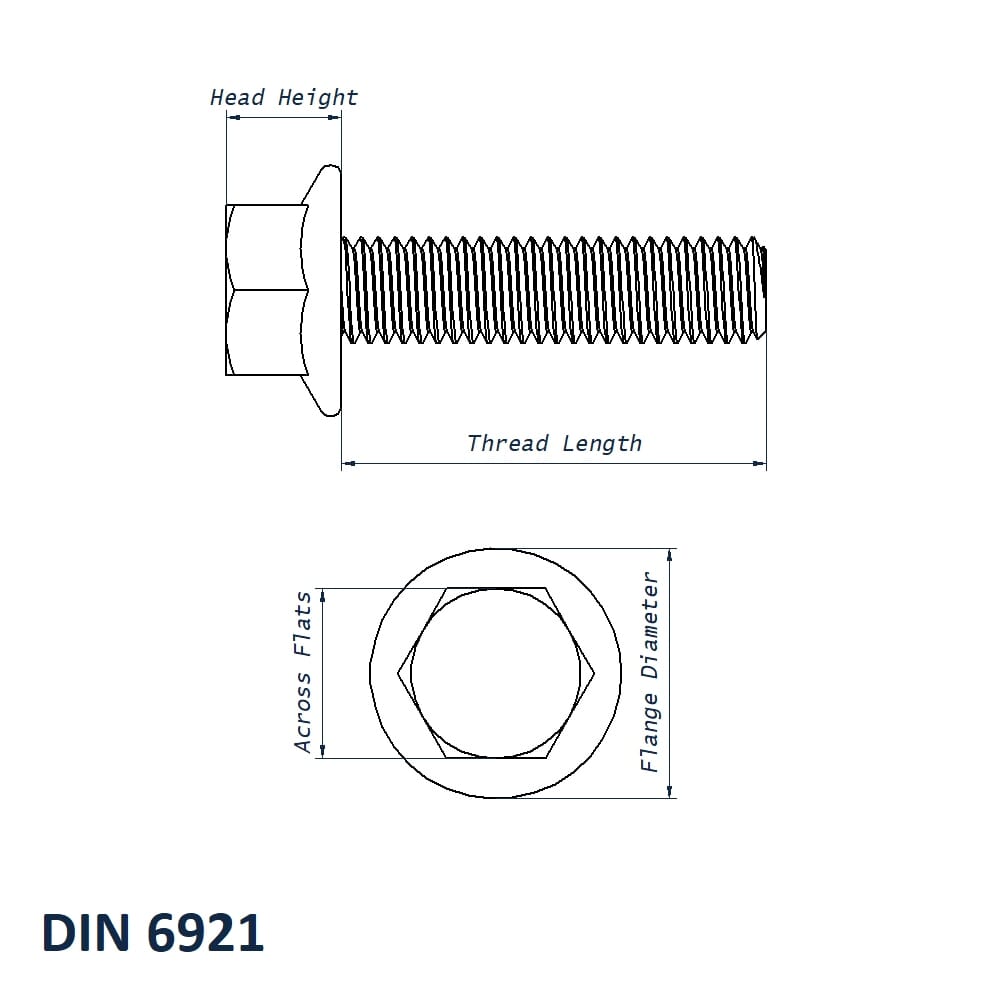

M8 x 20mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 20mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Buying Guidance
Use the head height and flange diameter together when checking clearance below guards, covers or equipment housings. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
